ORDERING BOOM AND JIB LACINGS
All Models
Table of Contents
PURPOSE
This folio is divided into two sections:
A.
Ordering boom or jib lacings from LACING DRAWINGS
contained in Section F of the parts manual furnished
with the crane.
B.
Ordering boom or jib lacings when LACING
DRAWINGS ARE NOT AVAILABLE.
BOOM OR JIB IDENTIFICATION
All parts orders for lacings must contain the boom or jib
identification number and the component part number:
• Past Production
(View A):
Boom or jib number, component part number, and man-
ufacturing code stamped into two connectors (diago-
nally opposite) on both ends of each insert and on end
of top and butt.
• Current Production
(View B):
Boom or jib number, component part number, and man-
ufacturing code stamped into a plate mounted on all
four chords of each section.
Purpose ............................................................................1
Boom or Jib Identification..................................................1
A. Ordering Lacings from Lacing Drawings................2
B. Ordering Lacings without Lacing Drawings............3
Assistance ........................................................................3
Welding Instructions..........................................................3
Manufacturing
Code
Boom or Jib
Number
Component
Part Number

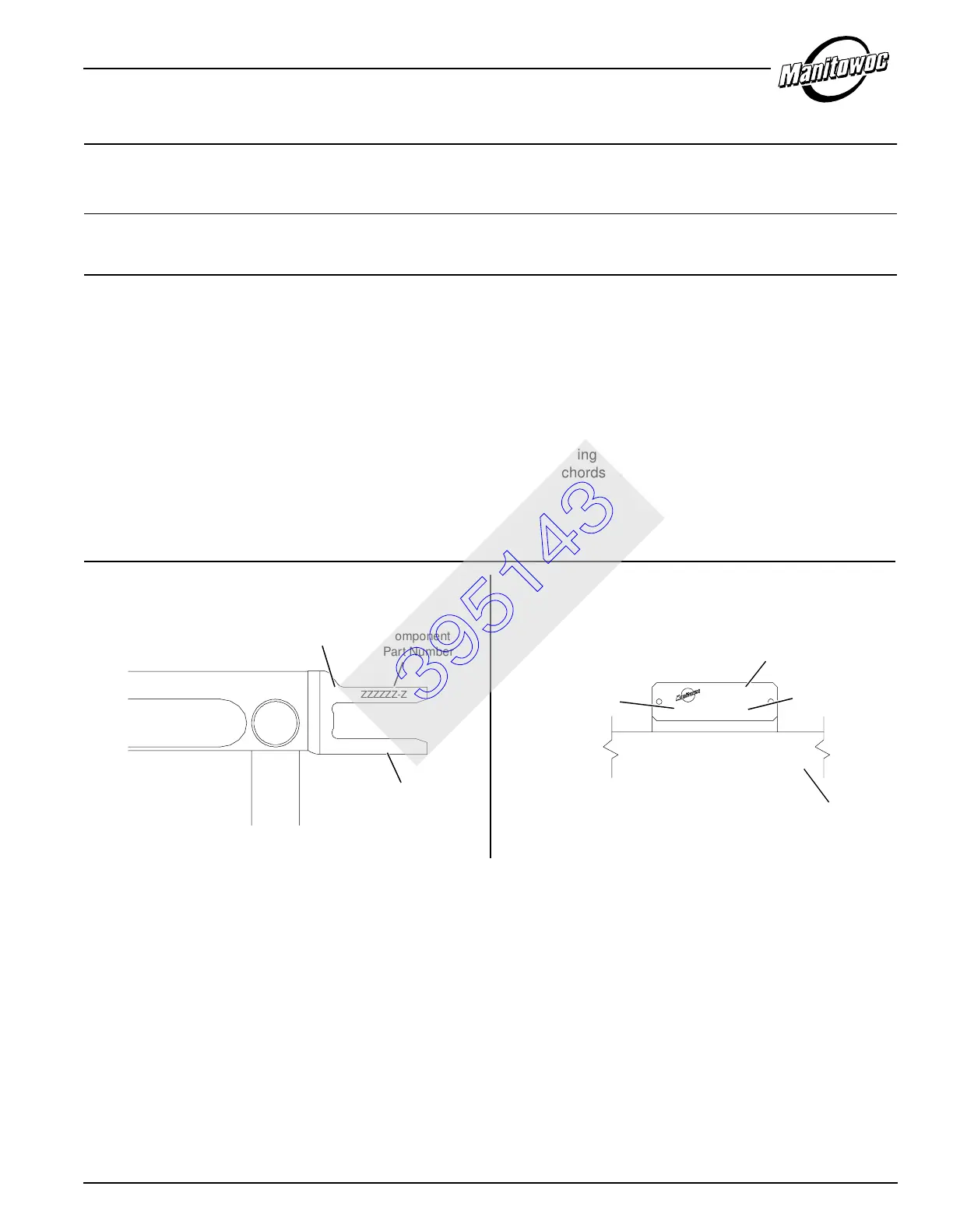

FIGURE 1
X-X-XX
ZZZZZZ-Z
#YY
A524
View A
PAST PRODUCTION
Chord
View B
CURRENT PRODUCTION
Component
Part Number
Manufacturing
Code
Boom or
Jib Number
#YY
Z-ZZ-ZZ
XXXXXX
A524
395143
