Folio 823-3
ORDERING BOOM AND JIB LACINGS
B. Ordering Lacings without Lacing
Drawings
The parts order must contain the following information to
ensure that Manitowoc provides you with the correct lacings:
1.
Crane serial number (can be found on builders plate in
operator's cab.)
2.
Boom or jib identification number.
3.
Quantity, lacing location, and lacing number.
4.
Boom or jib component name (butt, insert, or top) and
part number.
NOTE:
To obtain the lacing location and number, view the
boom or the jib from the butt end looking forward.
Identify the side on which the damaged lacing is
located: left side, top side, right side, or bottom
side. Count each lacing up to and including the
damaged lacing, starting with
first lacing nearest
butt end
of the component as shown in Figur e3.
Do not count a diagonal lacing as the first lacing.
Identify diagonal lacing separately; lower end
diagonal lacing or upper end diagonal lacing.
ASSISTANCE
If you are in doubt as to which lacings to order, DO NOT
GUESS. Contact your nearest Manitowoc distributor for
assistance; doing so may prevent the wrong parts from being
shipped.
WELDING INSTRUCTIONS
Each lacing order is shipped with welding instructions and a
copy of Form 00SPFM006 which identifies the chord and
lacing material.
EXAMPLE:
Assume you have a number 22 boom and the
lacings with circled numbers in Figure 3 are damaged.
Your parts order should be similar to the following
example:
Crane Serial Number:
00000
(from builders plate).
Boom Identification Number:
#22 Boom
Required:
1 each Top Side Lacing (1) for 30 ft Butt 48153-9
1 each Right Side Lacing (5) for 30 ft Butt 48153-9
1 each Bottom Side Lacing (3) for 20 ft Insert 33426-3
1 each Bottom Side Lacing (6) for 20 ft Insert 33426-3
1 each Top Side Lacing (2) for 40 ft Top 50453-2
Quantity
Component
Name and Part
Number
Lacing
Location
Lacing
Identification
Number
Diagonal
Lacing
Diagonal
Lacing
Lower End
Diagonal
Lacing
Upper End
Diagonal
Lacing
Bottom
Side
Left Side
Top Side
Right Side
Bottom Side
Bottom Side
Left
Side
Left Side
Right Side
Top Side
Right Side
Top Side

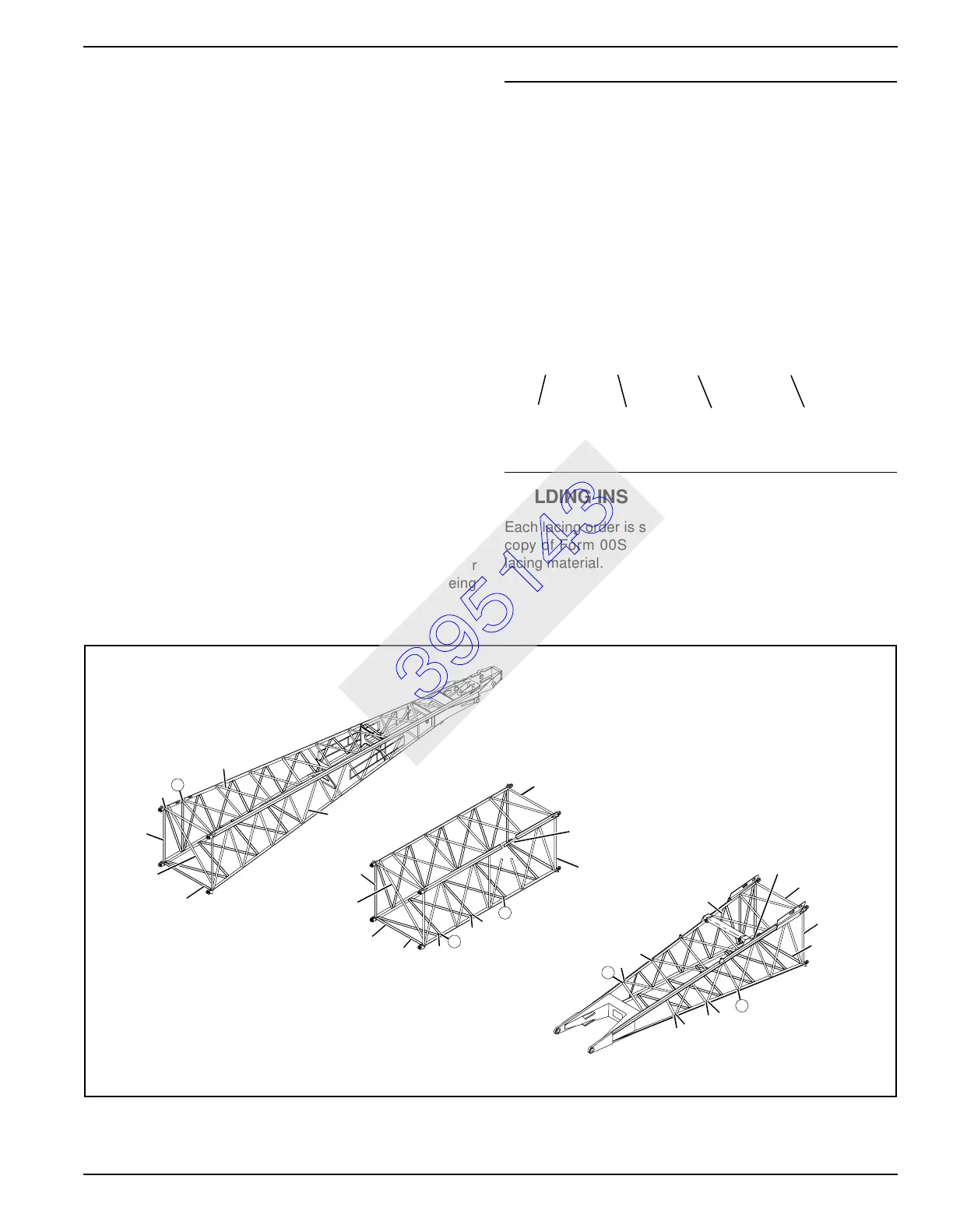

FIGURE 3
A924
5
3
3
4
2
2
1
1
2
1
1
2
5
4
3
6
40 ft Top
20 ft Insert
30 ft Butt
