Folio 931-5
WIRE ROPE INSTALLATION AND MAINTENANCE

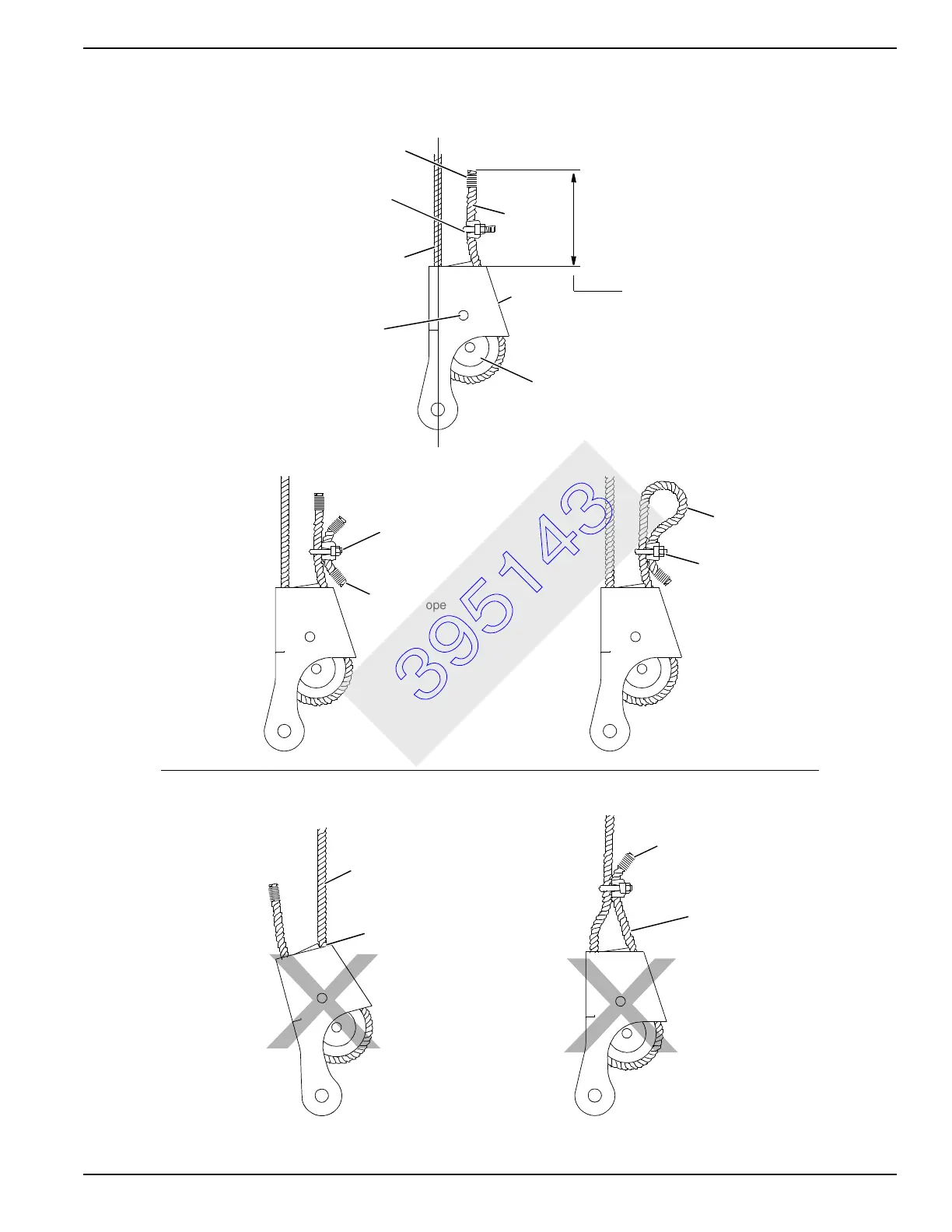

FIGURE 7
A925
Right!
Method B
Right!
Method C
Short Piece
of Wire Rope
Rope
Clip
Loop
Rope
Clip
6 to 9 Rope Diameters for
Conventional Rope
OR
20 Rope Diameters for
Rotation Resistant Rope
Do not reinstall any shipping material
(bolt, plastic strap, or wire) in hole of
wedge or socket after assembling.
Live Side in
Straight Line
with Socket
Rope
Clip
Seizing
Dead
End
Socket
Wedge
Right!
Method A
Live Side Kinked Here
Because Not In Straight
Line with Socket.
Wrong!
Both are Dangerous!
Live Side
Rope Clip Will Transfer Load
to Dead End of Wire Rope.
Dead End
395143
