MANITOWOC ENGINEERING CO.
division of The Manitowoc Company, Inc.

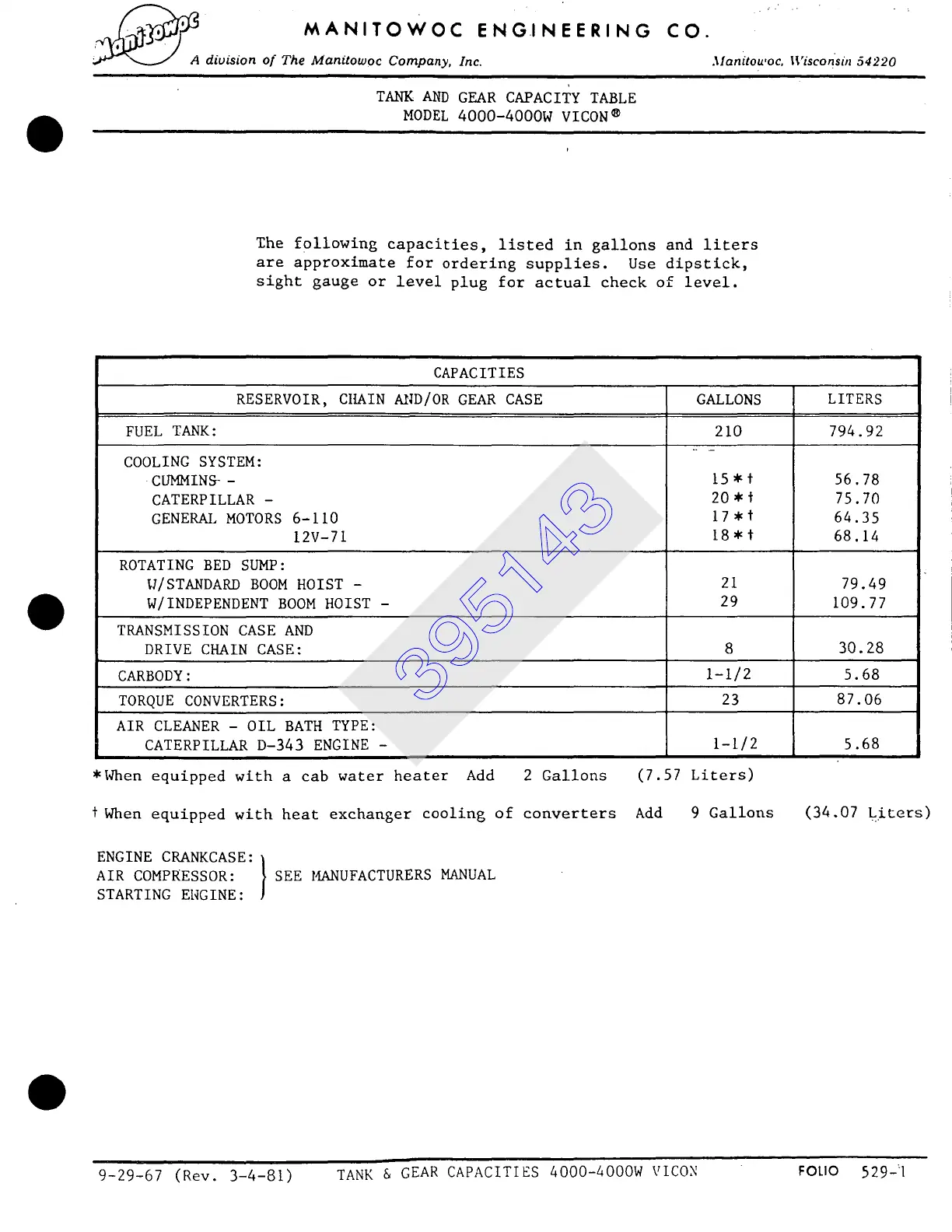

TANK AND GEAR CAPACITY TABLE
MODEL 4000-4000W VICON ®
.lIanitou'oc, IVisconsin 54220
The following capacities, listed in gallons and liters
are approximate for ordering supplies. Use dipstick,
sight gauge or level plug for actual check of level.
CAPACITIES
RESERVOIR, CI~IN AND/OR GEAR CASE GALLONS LITERS
FUEL TANK: 210 794.92
COOLING SYSTEM:
CUMMINS -
CATERPILLAR -
GENERAL MOTORS 6-110
12V-71
15*f
17.t
18.*
56.78
75.70
64.35
68.14
ROTATING BED SUMP:
W/STANDARD BOOM HOIST - 21 79.49
W/INDEPENDENT BOOM HOIST - 29 109.77
TRANSMISSION CASE AND
DRIVE CHAIN CASE: 8 30.28
CARBODY: I-1/2 5.68
TORQUE CONVERTERS: 23 87.06
AIR CLEANER - OIL BATH TYPE:
CATERPILLAR D-343 ENGINE -
i
*When equipped with a cab water heater
1-I/2
(7.57 Liters)
Add 2 Gallons
t When equipped with heat exchanger cooling of converters Add 9 Gallons
SEE MANUFACTURERS MANUAL
ENGINE CRANKCASE:
AIR COMPRESSOR:
STARTING ENGINE:
5.68
(34.07 Liters)
9-29-67 (Rev. 3-4-81) TANK & GEAR CAPACITIES 4000-4000W VICON FOLIO 529-'I
395143
