MANITOWOC ENGINEERING CO.
division of The Manitowoc Company, Inc. . Manitowoc, Wisconsin 54220
@

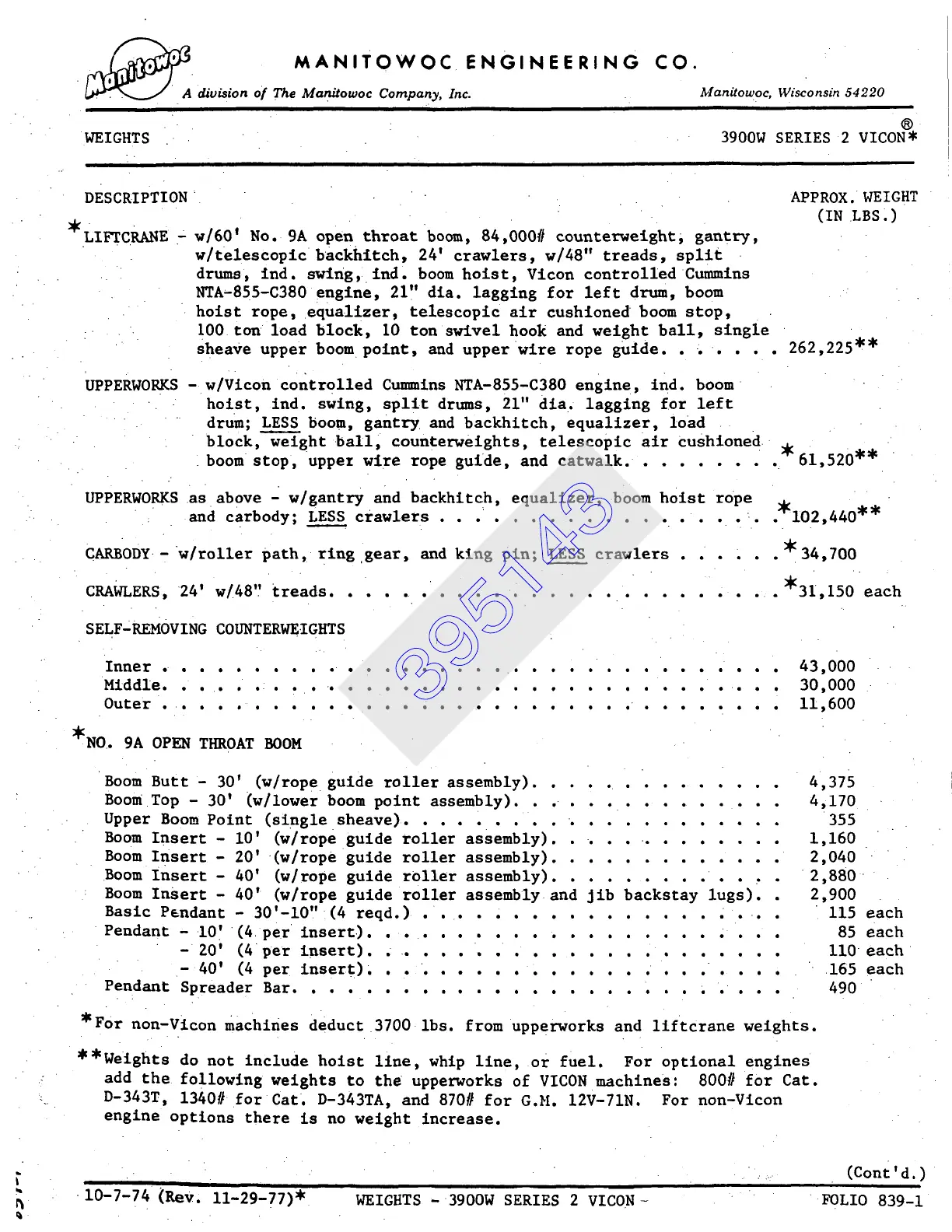

WEIGHTS 3900W SERIES 2 VICON*
DESCRIPTION '
~LIFTCRANE w/60' No• 9A open throat boom, 84,000# counterweight, gantry,
w/telescopic • backhitch, 24' crawlers, w/48" treads, split
drum~, ind. swlng,i ind, boom hoist, Vicon controlledCummins
NTA-855-C380 engine, 21,' dia. lagging for left drum, boom
hoist rope, •equalizer, telescopic air cushioned boom stop,
I00 ton load block, i0 ton swivel hook and weight ball, single
sheave upper boom point, and upper wire rope guide• • , • • • . 262,225**
UPPERWORKS - w/Vicon controlled Cummins NTA-855-C380 engine, ind. boom •
hoist , ind. swing, split drums, 21" dia. lagging for left
" drum; LESS Doom, gantry and backhitch, equalizer, load
block, weight ball, counterweights, telescopic air cushioned ~(61,520"*
• boom • stop, uppez wire rope guide, and catwalk .........
UPPERWORKS as above - w/gantry and backhitch, equalizer, boom hoist rope
and carbody; LESS crawlers • • •~ ...... • . • • • • • • • •~I02,440"*
CARBODY.- •w/roller path, ring .gear, and king pin; LESS crawlers • . • • • • ~34,700
~31 150 h CRAWLERS 24' /48" tread
, W S. . • • • • • • • • • • • • . • • • • • • • • • . , eac
.
SELF'REMOVING COUNTERWEIGHTS
Inner . ......... ......................... 43,000
Middle 30 000 • • • . • • • • • • -6 • • • • • • • • • • • • • • • • • • • • • • • •
Outer " • ii, 600
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
~NO. 9A OPEN THROAT BOOM
Boom Butt 30' (w/rope guide roller assembly) ...............
Boom Top - 30' (w/lower boom point assembly)• . . .............
Upper Boom Point (single sheave)
• • • • • • • • • • • • • • • • • • • • •
Boom Insert - i0' (w/rope guide roller assembly)• . . . . • ........
Boom Insert• - 20' (w/rope guide roller assembly) .............
Boom Insert - 40' (w/rope guide roller assembly) ........... . .
Boom Insert - 40' (w/rope guide roller assembly• and Jib backstay lugs)• .
Basic Pendant 30' 10,"(4 reqd )
Pendant I0' (4 per insert)
m • . . • • • .• • • • • • • • • • • • • • • • • • • •
20 ~ (4 per insert) .
-- • ,• • • • • • • • • • • • • • • • • • • • •
40' (4 per insert)
-- • • • • • • • • • • • • • • • • • • • • • • •
Pendant Spreader Bar . •
• • • • • • • • • • • • • • • • • • • • • • • • • •
• For non-Vicon machines deduct 3700 ibs. from upperworks and liftcrane weights•
~*Weights do not include hoist llne, whip line, or fuel• For optional engines
add the following weights to the upperworks of VICON machines: 800# for Cat.
D-343T, 1340# for Cat. D-343TA, and 870# for G.M. 12V-71N. For non-Vicon
engine options there is no weight increase•
APPROX. WEIGHT
(IN LBS. )
4,375
4,170
355
1,160
2,040 •
2,880
2,900
115 each
85 each
ll0each
165 each
490
10-7-74 (Rev, iI-29-77)~ WEIGHTS -3900W SERIES 2 VICON-
(Cont'd.)
FOLIO 839-1
