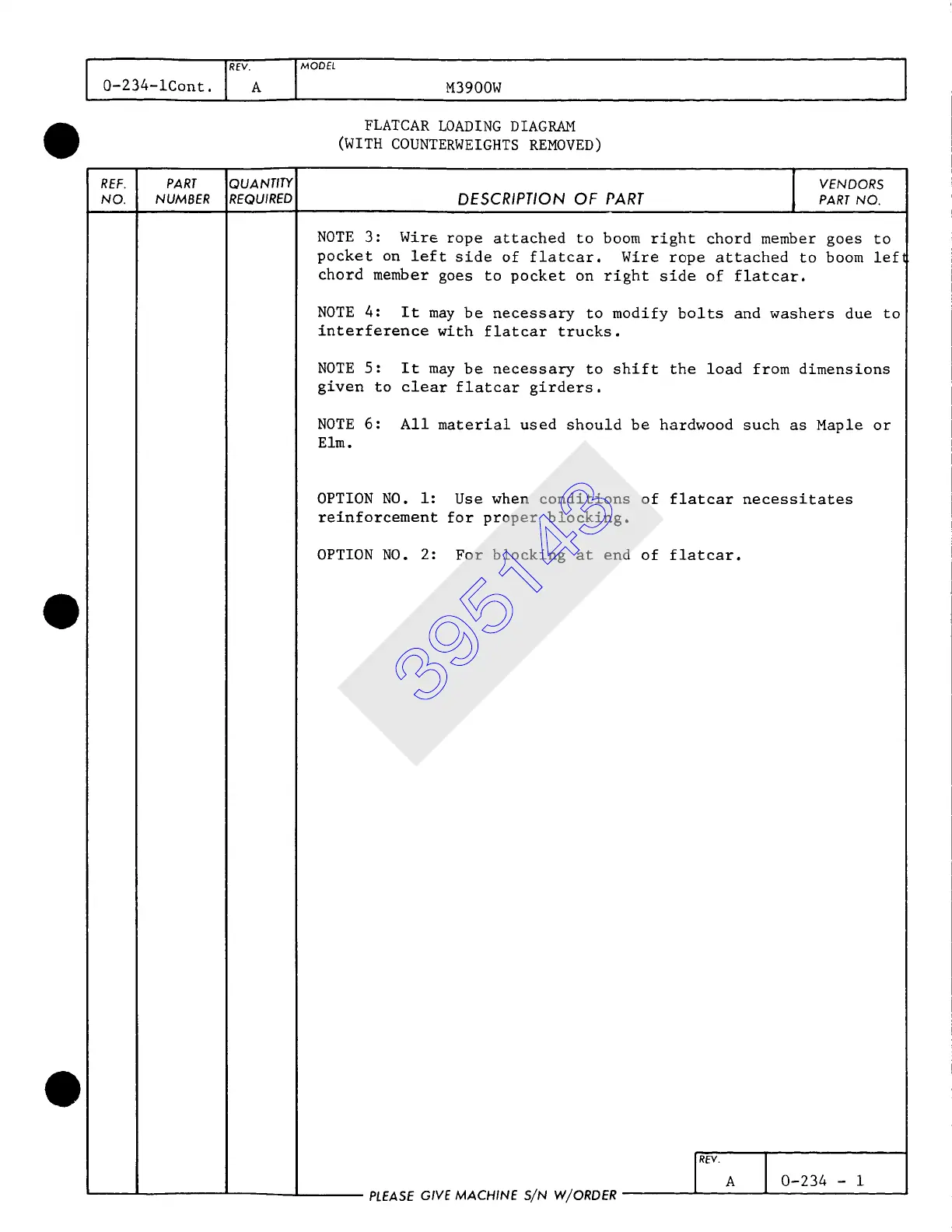

I 0_234_ICont. ]REVA IMOOEL
M3900W
FLATCAR LOADING DIAGRAM
(WITH COUNTERWEIGHTS REMOVED)
REF.
NO.
PART QUANTITY
NUMBER REQUIRED
DESCRIPTION OF PART
VENDORS
PART NO.
NOTE 3: Wire rope attached to boom right chord member goes to
pocket on left side of flatcar. Wire rope attached to boom lef ~
chord member goes to pocket on right side of flatcar.
NOTE 4: It may be necessary to modify bolts and washers due to
interference with flatcar trucks.
NOTE 5: It may be necessary to shift the load from dimensions
given to clear flatcar girders.
NOTE 6: All material used should be hardwood such as Maple or
Elm.
OPTION NO. i: Use when conditions of flatcar necessitates
reinforcement for proper blocking.
OPTION NO. 2: For blocking at end of flatcar.
PLEASE GIVE MACHINE S/N W/ORDER
REV.
I
A 0-234 - 1
395143
