Manitowoc 3900W - Page 56

., -AIO.I-
! -, •
i D' R~ i MOOE:
183040 - 1 3900W, 4000W, 4100W
C)
0
REF.
NO.
1
2
2
3
4
5
6
7
7
8
8
9

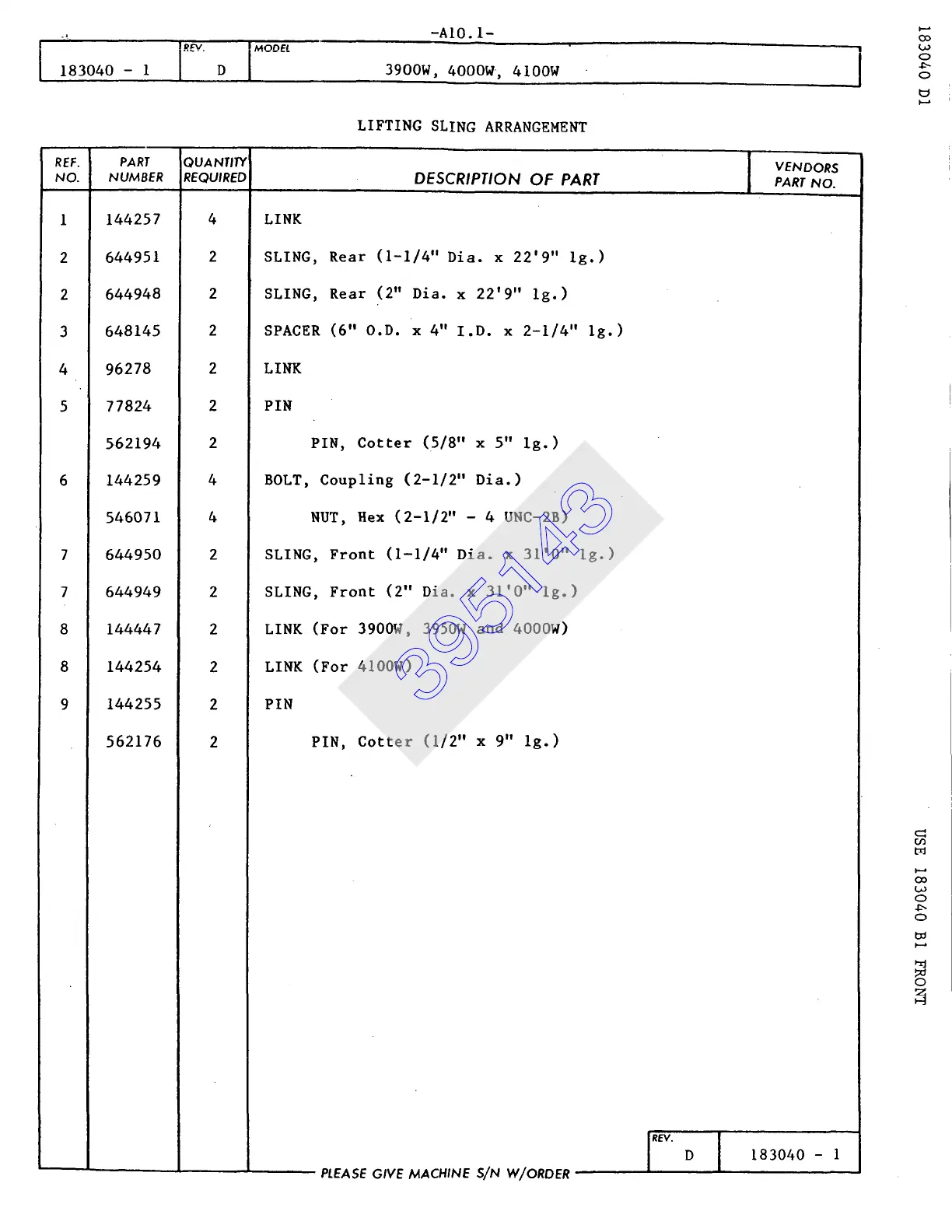

LIFTING SLING ARRANGEMENT
[
PART r'OUANrlnr i
NUMBER REQUIRED! DESCRIPTION OF PART
144257 4
644951 2
644948 2
648145 2
96278 2
77824 2
5.62194 2
144259 4
546071 4
644950 2
644949 2
144447 2
144254 2
144255 2
562176 2
LINK
SLING, Rear (1-1/4" Dia. x 22'9" ig.)
SLING, Rear (2" Dia. x 22'9" Ig.)
SPACER (6" O.D. x 4" I.D. x 2-1/4" Ig.)
LINK
PIN
PIN, Cotter (5/8" x 5" ig.)
BOLT, Coupling (2-1/2" Dia.)
NUT, Hex (2-I/2" - 4 UNC-2B)
SLING, Front (i-1/4" Dia. x 31'0" ig.)
SLING, Front (2" Dia. x 31'0" ig.)
LINK (For 3900W, 3950W and 4000W)
LINK (For 4100W)
PIN
PIN, Cotter (I/2" x 9" Ig.)
PLEASE GIVE MACHINE S/N W/ORDER
VENDORS
PART NO.
REV.
D 183040- 1
t~
OO
bo
CD
CD
o
395143
