Manitowoc Engineering Co.
9
BOOM LENGTH DIM. A @ 830
(FT.) (FT .-IN. )
45
55
65
75
85
95
105
115
125
135
145
155
165
175
185
195
8 - 4½
9 - 7
I0 - I0
12 - O½
13- 3
14 - 5½
15 - 8k
16 - II
18- 1½
19 - 4
20 - 7
21 - 9½
23 - 0
24 - 2½
25 - 5½
26 - 8
BOOMS W/HAMMERHEAD TOP
9A
"Boom LENGTH :DIM. A @ 83 °
(FT.) (FT.-IN.)
33 7
38 8
43 8
48 9
53 I0
63 II
73 12
83 13
93 15
103 16
113 17
123 18
133 19
143 21
153 22
163 23
173 24
183 26
193 27
203 28
213 29
-9
-4
- 11½
-7
-2
-5
- 7½
- 10
- O½
- 3½
-6
- 8½
-11
-2
- 4½
- 7
- 9½
- O½
-3
- 5½
-8
22A (5' TOP)
BOOM LENGTH DIM. A @ 83 °
(FT.) (FT.-IN.)
35
45
55
65
75
85
95
105
115
125
135
145
155
165
175
185
195
2O5
215
225
235
8 - i1½
i0 - 2
II - 5
12 - 7½
13 - 10
15 - O½
16 - 3½
17 - 6
18 - 8½
19 - 11
21 - 2
22 - 4½
23 - 7
24 - 9½
26 - 0½
27 - 3
28 - 5½
29 - 8
30 - 10½
32 - 1½
33 -
22,22A
~BOOM LENGTH iDIM. A @ 83 °
(FT.) (FT.-ZN.)
7O
8O
9O
I00
II0
120
130
140
150
160
170
180
190
2OO
210
220
230
240
25O
11-9
12- t1½
14- 2
15 - 4½
16- 7½
17 - 10
19 - 0;~
20- 3
21 -6
22 - 8½
23- II
25- 1½
26 - 4½
27- 7
28 - 9½
30 - 0
31 - 3
32 - 5½
33- 8
CENTERLINE BOOM CENTERLINE LOWER
HINGE PINS BOOM POINT SHAFT
DIMENSION A

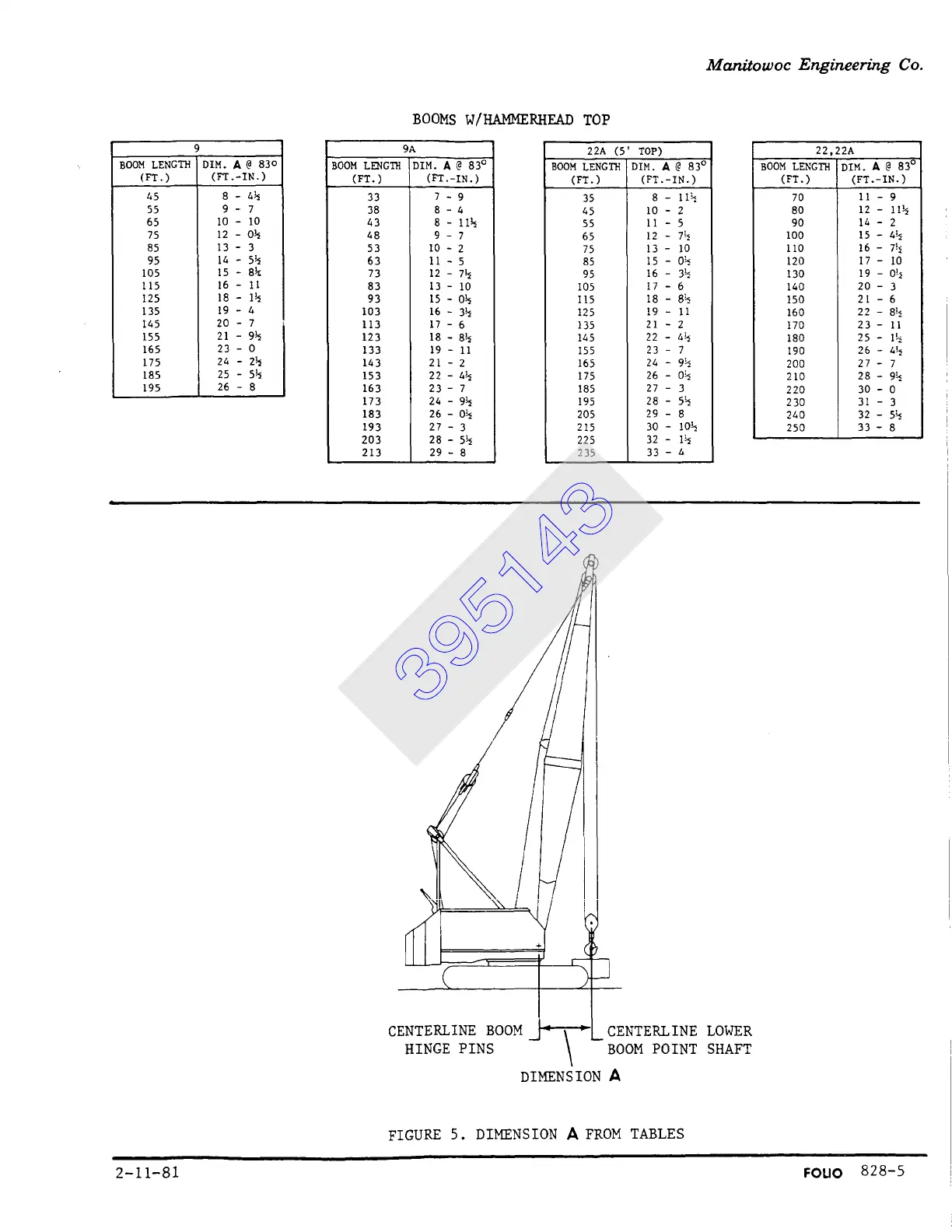

FIGURE 5. DIMENSION A FROM TABLES
2-11-81 FOLIO 828-5
