ASSEMBLY
JIB NO. 123
PINNED, TUBULAR CONSTRUCTION
BASIC JIB PENDANT
:ADD JIB INSERT PENDANTS
Here, for each additional
Jib Insert
\
PIN CONNECTED:
Heads to outside
(Jib Inserts
added here)
,~ STRUT
BACKSTAY
STRAPS
WIRE ROPE
JIB BACKSTAYS
JIB STOP
PENDANTS

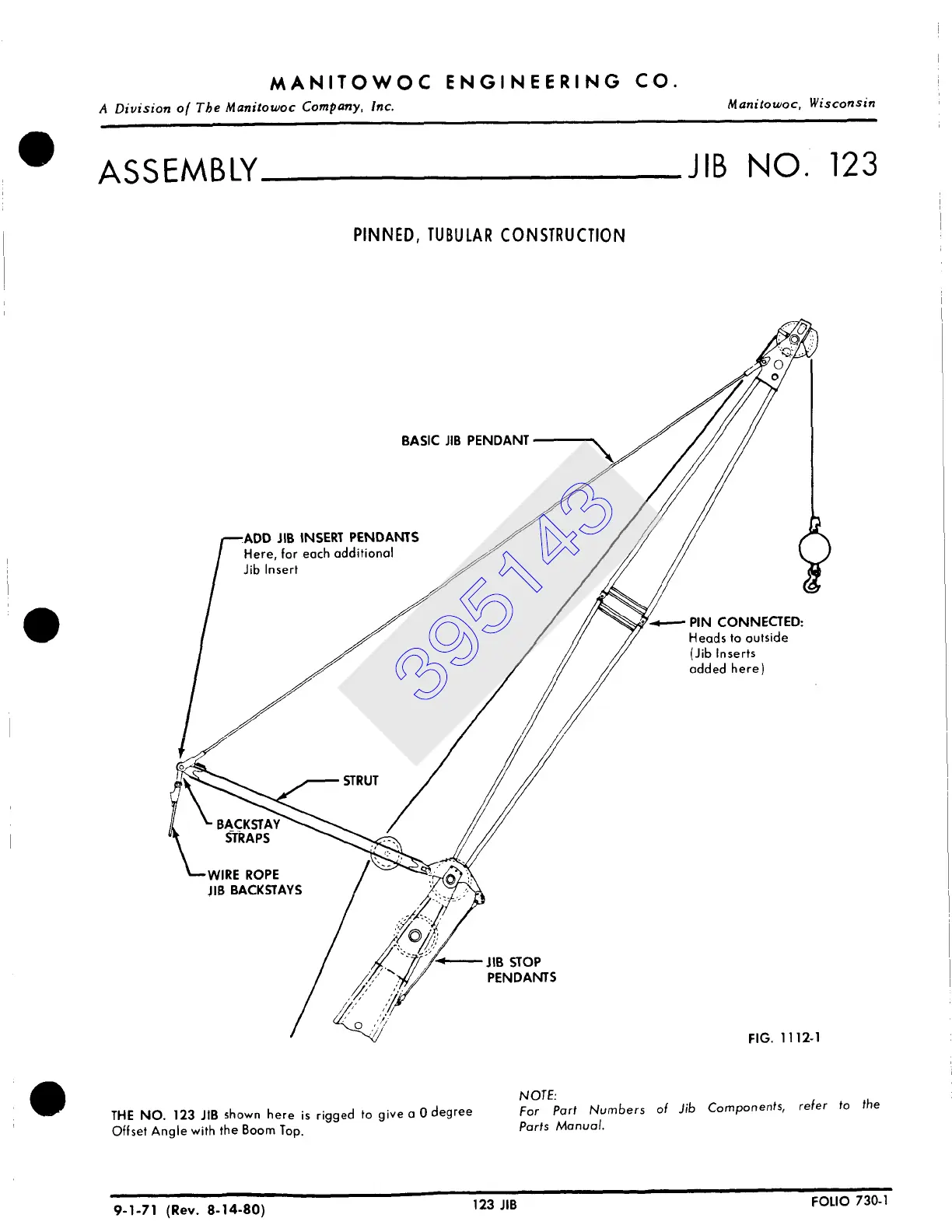

FIG. 1112-1
THE NO. 123 JIB shown here is rigged to give a 0 degree
Offset Angle with the Boom Top.
NOTE:
For Part Numbers of Jib Components,
Parts Manual.
refer to the
