Manitowoc Grove RT540E User Manual

Published 01-15-2016, Control # 526-01 4-11
RT540E OPERATOR MANUAL SET-UP AND INSTALLATION PROCEDURES
4
GROVE

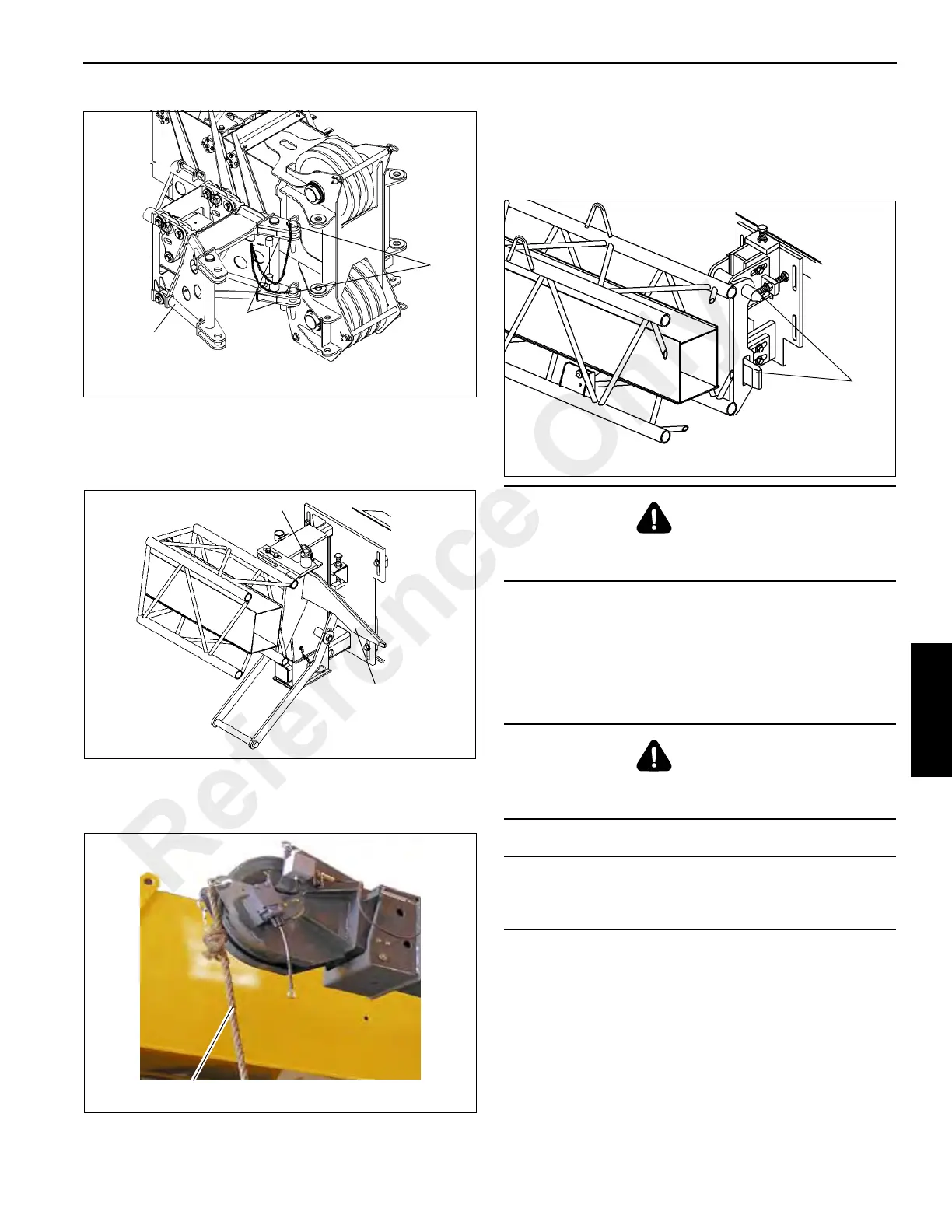

5. Remove the retaining pin from the hitch pin (3) that
secures the boom extension to the rear stowage
bracket. Remove the hitch pin, unlocking the boom
extension from the boom. (Figure 4-10)
6. Attach a length of rope to the boom extension tip to aid in
swinging the boom extension into place ahead of the
boom nose.
7. Raise the boom to horizontal and extend the boom
approximately 51 to 64 cm (20 to 25”). Make certain that
the boom extension stowage lugs clear the guide pins
(Figure 4-12) (3) and ramp (Figure 4-10) (4) on the front
and rear stowage brackets.
8. Slightly raise and/or lower the boom to help control the
boom extension. Using the rope attached to the top of
the boom extension, manually swing the extension into
place ahead of the boom nose, engaging the attachment
fittings (5) with the anchor fittings on the left side of the
boom nose. (Figure 4-13)
9. Install the top left side attachment pin (6) and retainer
clip into the upper anchor and attachment fittings of the
boom nose. (Figure 4-13)
FIGURE 4-10
6814-4
1
9
2
FIGURE 4-11
6821-1
3
4
FIGURE 4-12
Tag Line
DANGER
When erecting the boom extension, ensure that all
personnel and equipment are kept clear of the swing path.
DANGER
Do not modify the attachment points to permit the
installation of the attachment pins.
CAUTION
Do not place blocking under the boom extension sheave
wheel. Damage to the sheave wheel may occur.
FIGURE 4-13
3
6821-3
Reference Only
