ATTACHMENTS CD5515-2/YB5515-2 OPERATOR MANUAL
5-4 Published 1-20-2017, Control # 468-02
Installing the Hook Block
1. Remove the three pins and hook assembly from the
hook block assembly. See Figure 5-7.
2. Thread the wire rope through the hook block so it is
under the hook block sheave.
3. Install the hook assembly and three pins to the hook
block assembly.
4. Attach the wire rope wedge assembly to boom head.
5. Lift the hook block off of the ground. Be sure the wire
rope is engaged in the sheave grooves in both the boom
head and hook block.
p0529

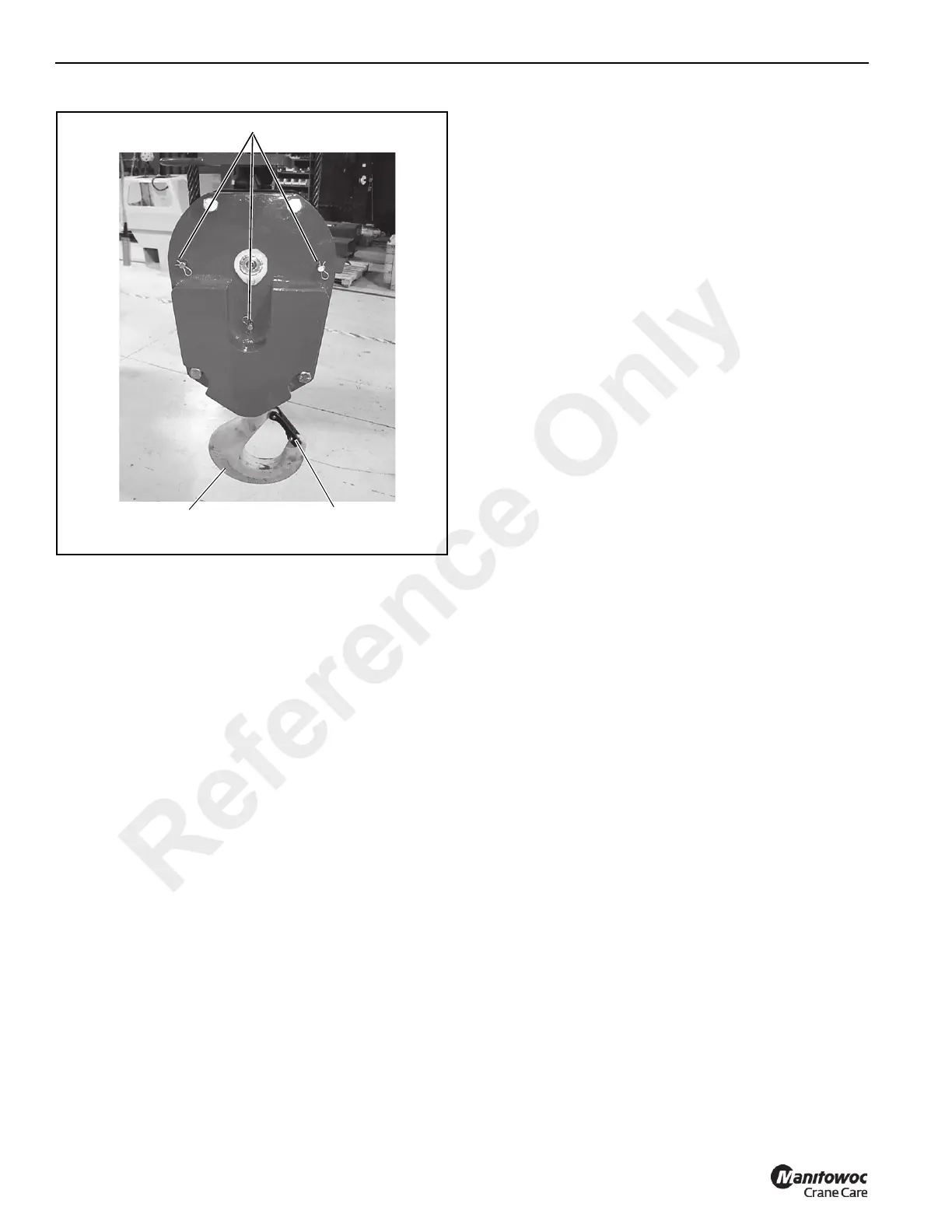

FIGURE 5-7
Remove Pins
Hook Assembly
Safety Latch
Reference Only
