ATTACHMENTS CD5515-2/YB5515-2 OPERATOR MANUAL
5-8 Published 1-20-2017, Control # 468-02
DOWN HAUL WEIGHT
Installing the Down Haul Weight
Whenever a single part line is used on a crane to lift a load,
the load indicator transmitter must be removed from the
boom head and installed onto the down haul weight. Without
the transmitter installed and attached to the load pin, the load
indicator receiver in the cab will not register the weight being
lifted by the single part line.
NOTE: Crane may have shipped from the factory with a
sleeve in the downhaul weight for use with 1/2 in
wire rope. If the crane is equipped with 5/8 in wire
rope, it may necessary to remove the sleeve from
the downhaul weight to allow for installation of the
becket pin for 5/8 in wire rope. The sleeve can be
removed by pressing it out.

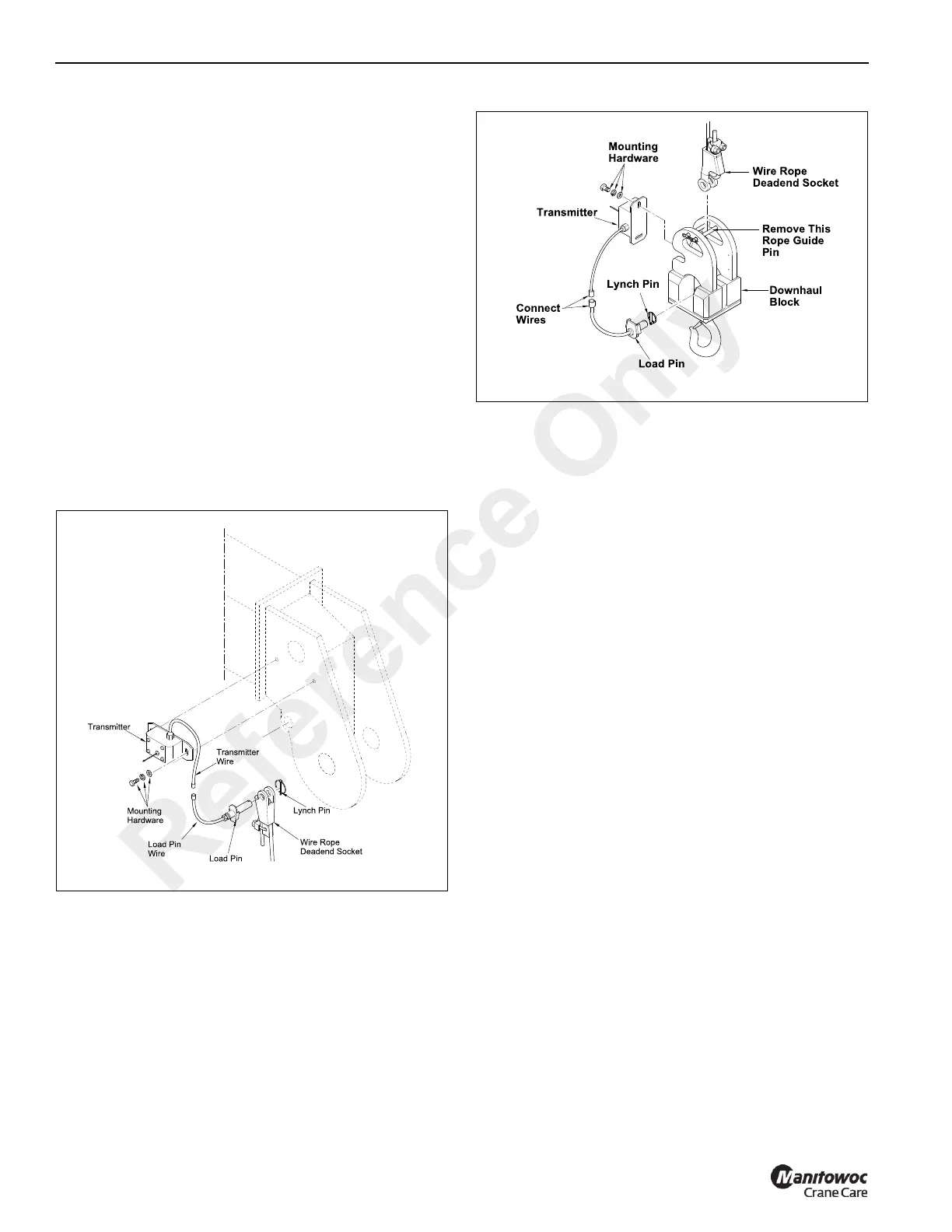

To install the load indicator transmitter in the down haul block
perform the following steps:
1. Disconnect the transmitter wire and load pin wire
(Figure 5-11).
2. Remove the transmitter from the boom head by
removing the transmitter mounting hardware (2 each -
bolts, lockwashers and flat washers).
3. Follow instructions in Removing the Hook Block, page 5-
3 and remove the hoist block.
4. Using the hardware removed when removing the load
indicator transmitter, install the transmitter onto the
down haul weight (see Figure 5-12).
5. Remove the rope guide pin indicated in Figure 5-12 from
the down haul weight.
6. Attach the wire rope dead end socket to the down haul
weight using the load pin removed when removing the
wire rope socket. Install the lynch pin.
7. Install the rope guide pin. Be sure the wire rope is placed
between the two pins.
8. Connect the transmitter wire to the load pin wire.
9. Lift the hoist block off of the ground. Be sure the wire
rope is engaged in the sheave grooves in both the boom
head and hoist block and is wrapping on the hoist drum
properly.
Removing the Down Haul Weight
Whenever the down haul block is removed, the load indicator
transmitter must be removed from the down haul block and
installed onto the boom head. Without the transmitter
installed and attached to the load pin, the load indicator
receiver in the cab will not register the weight being lifted by
the crane.
To install the load indicator transmitter to the boom head
perform the following steps:
1. Lower the down haul block to the ground.
2. Disconnect the transmitter load pin wire (Figure 5-12)
from the transmitter wire.
3. Remove the rope guide pin indicated in Figure 5-12.
4. Remove the lynch pin and the load pin from down haul
weight. Remove the wire rope dead end socket. Install
the rope guide pin in the down haul weight.
5. Remove the transmitter from the downhaul weight.
Retain the hardware.
6. Install the transmitter to the boom head (Figure 5-11)
using the existing hardware.
