OPERATING CONTROLS AND PROCEDURES CD5515-2/YB5515-2 OPERATOR MANUAL
3-2 Published 1-20-2017, Control # 468-02
Accelerator Pedal
Accelerator Pedal (5) controls the travel speed and hydraulic
work function speeds of the crane. Pressing down on the
accelerator pedal increases the engine speed. The pedal is
spring-loaded to return to idle speed.
Brake Pedal
Pressing down on the Brake Pedal (6) applies the service
brakes located in the front and rear axles and slows and
stops the crane.
Steering Wheel
The steering wheel (7) controls the direction of travel.
Turn Signal/Windshield Wiper Lever
Used to indicate turning direction; push the lever (8) down for
right turn signal and up for left turn signal.
The wiper switch has three settings; O, I, II. Rotate the switch
to the desired speed.
Press on the end of the switch to operate the windshield
washer.
Transmission Shift Lever
The Transmission Shift Lever (9) selects the forward and
reverse travel of the crane as well as the speed ranges.

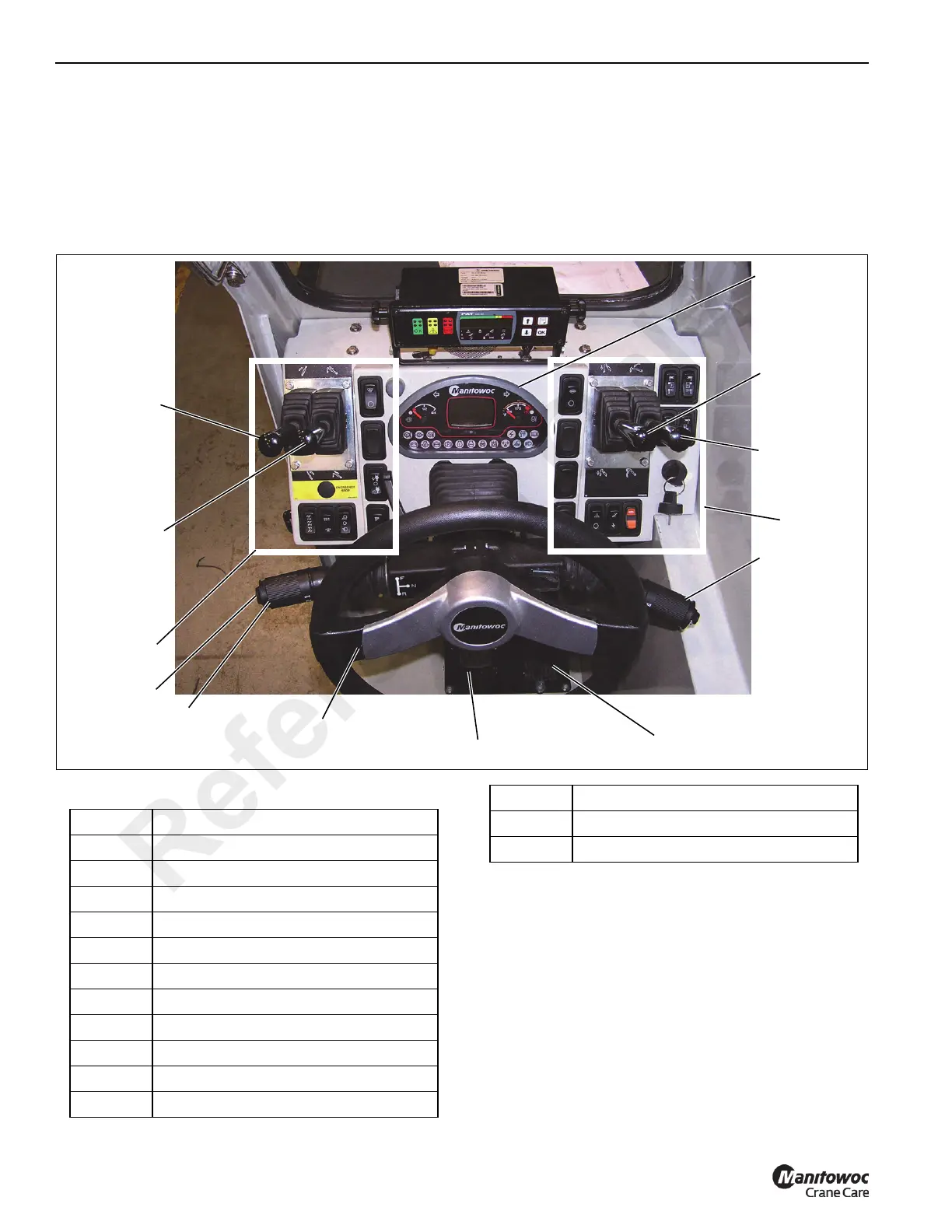

FIGURE 3-1
8
5
6
7
11
4
1
2
12
3
13
9
10
Item Description
1 Swing Control Lever
2 Telescope Control Lever
3 Hoist Control Lever
4 Boom Lift Control Lever
5 Accelerator Pedal
6 Brake Pedal
7 Steering Wheel
8 Turn Signal/Windshield Wiper Lever
9 Transmission Shift Lever
10 Horn
11 Indicator and Gauge Display
12 Left Dash Controls
13 Right Dash Controls
