Manitowoc QF0400 User Manual

172 Part Number 80-1230-9 10/10

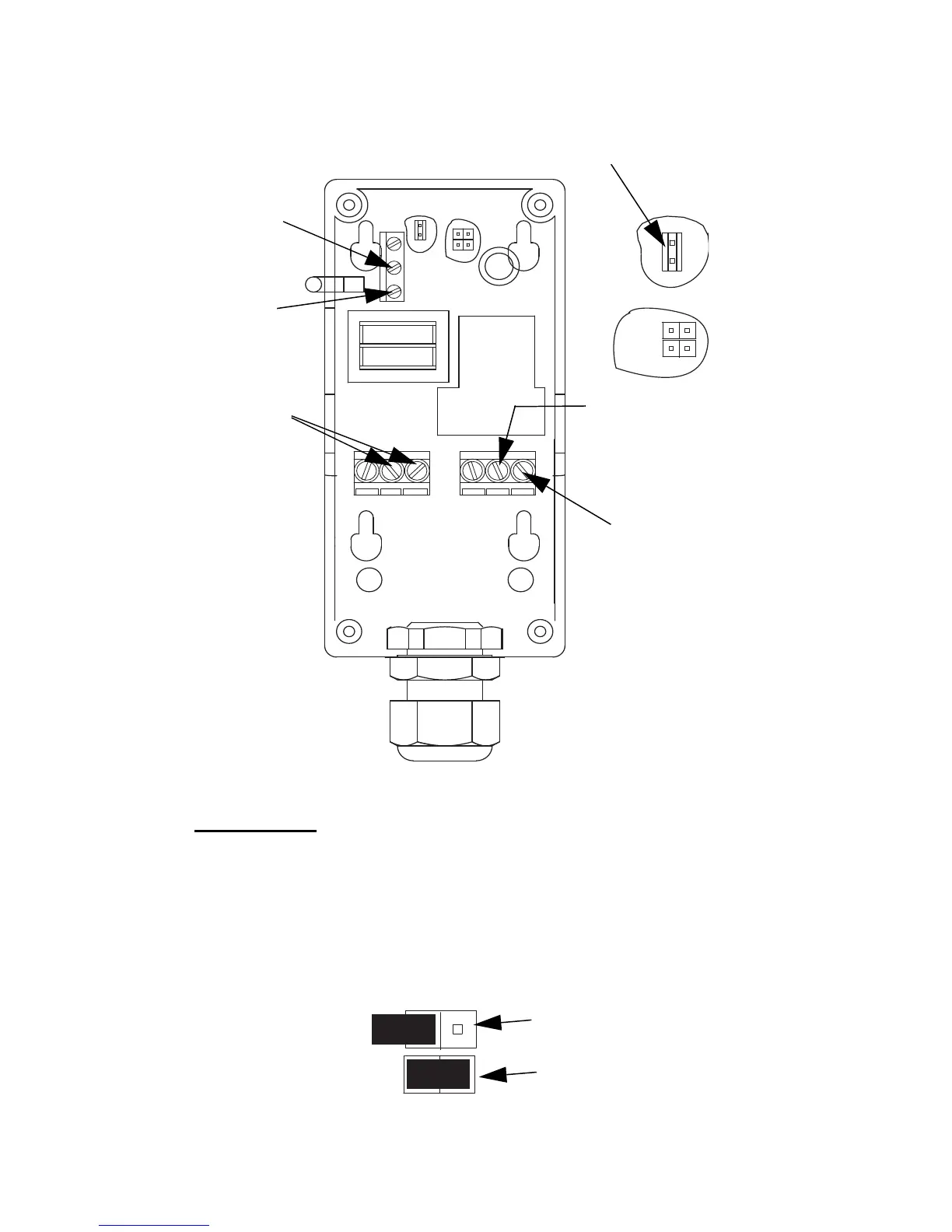

Inside of Bin Thermostat Control
P4 JUMPER
The P4 jumper labeled Jump 1 is used to set the
control for heating or cooling mode. Jump 2 is used to
establish Setpoint at either cut-in or cutout.
115V
240V
COM
NC
NOC
P5
P5
P4
P4
Jump 1
Jump 2
RED LEAD
SENSOR
PROBE
BLACK
LEAD
SENSOR
PROBE
MATCH
WIRING
TO ICE
MACHINE
VOLTAGE
BIN SWITCH
or TOGGLE
SWITCH
WIRE
BIN SWITCH
or TOGGLE
SWITCH
WIRE
KEYPAD
JUMPER
LOCATION
P4
Jump 1
Jump 2
Cooling Mode
Cut-Out at Setpoint
Jumper on
Both Pins
Jumper on
Left Pin Only
