Ice Chute Removal
(QF0800/QC0700)

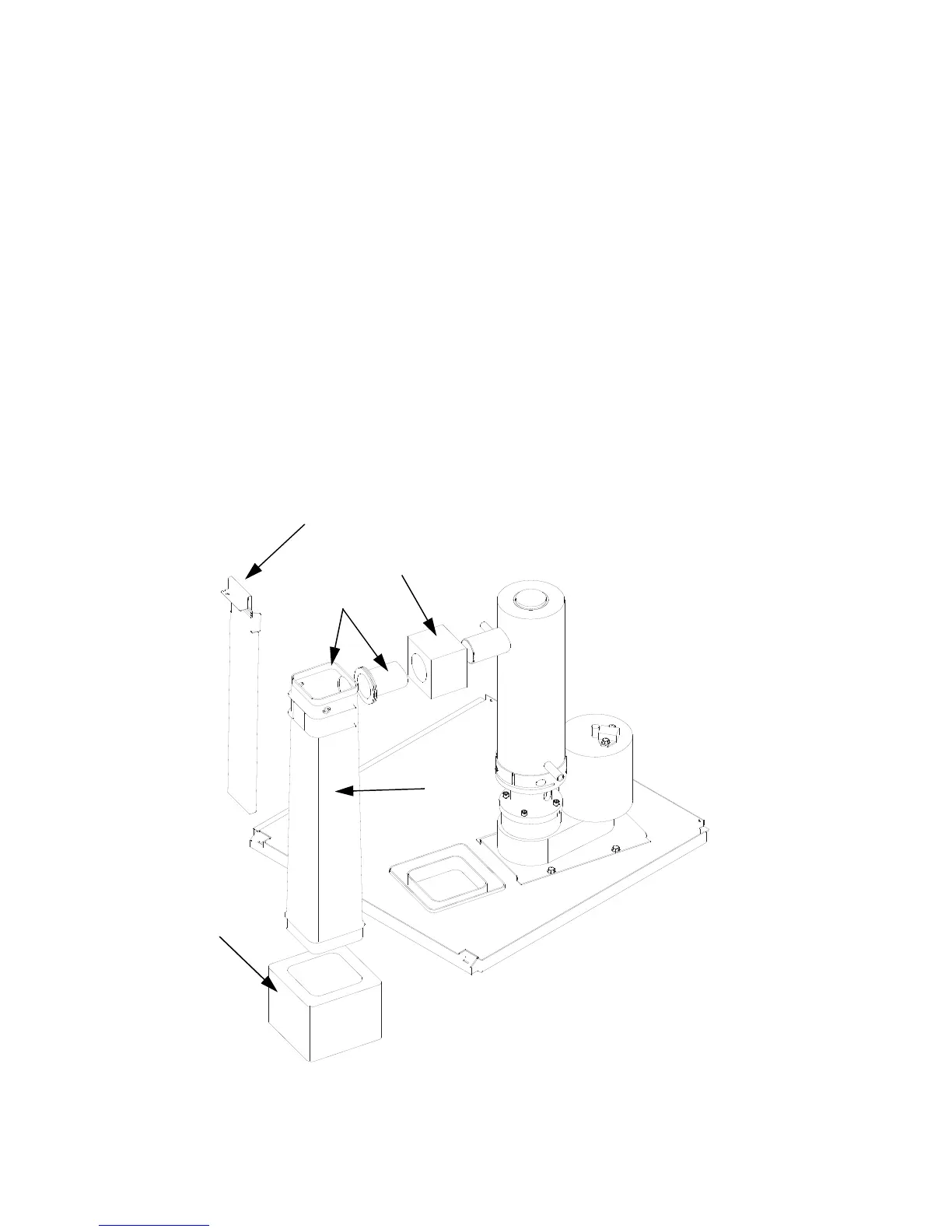

1. Follow steps to remove float reservoir.
2. The ice chute and ice chute grommet will be
removed as a unit. Pull forward on the top of the
ice chute, and slide the ice chute and grommet off
the end of the evaporator spout.
3. Remove evaporator spout insulation.
4. Lift ice chute out of the base.
5. Remove insulation from the bottom of the ice
chute.
6. Remove bin level sensor (stainless steel plate)
from ice chute.
NOTE: Clean and sanitize the base and all ice chute
components before reinstalling.
