QF2200/QF2300
1. Place the toggle switch in the OFF position, turn
off the water supply and disconnect electrical
power to the ice machine.
2. Remove ice chute retaining clamp from top of
evaporator.
3. Remove vinyl hose from ice chute spout.
4. Follow steps to remove water reservoir.

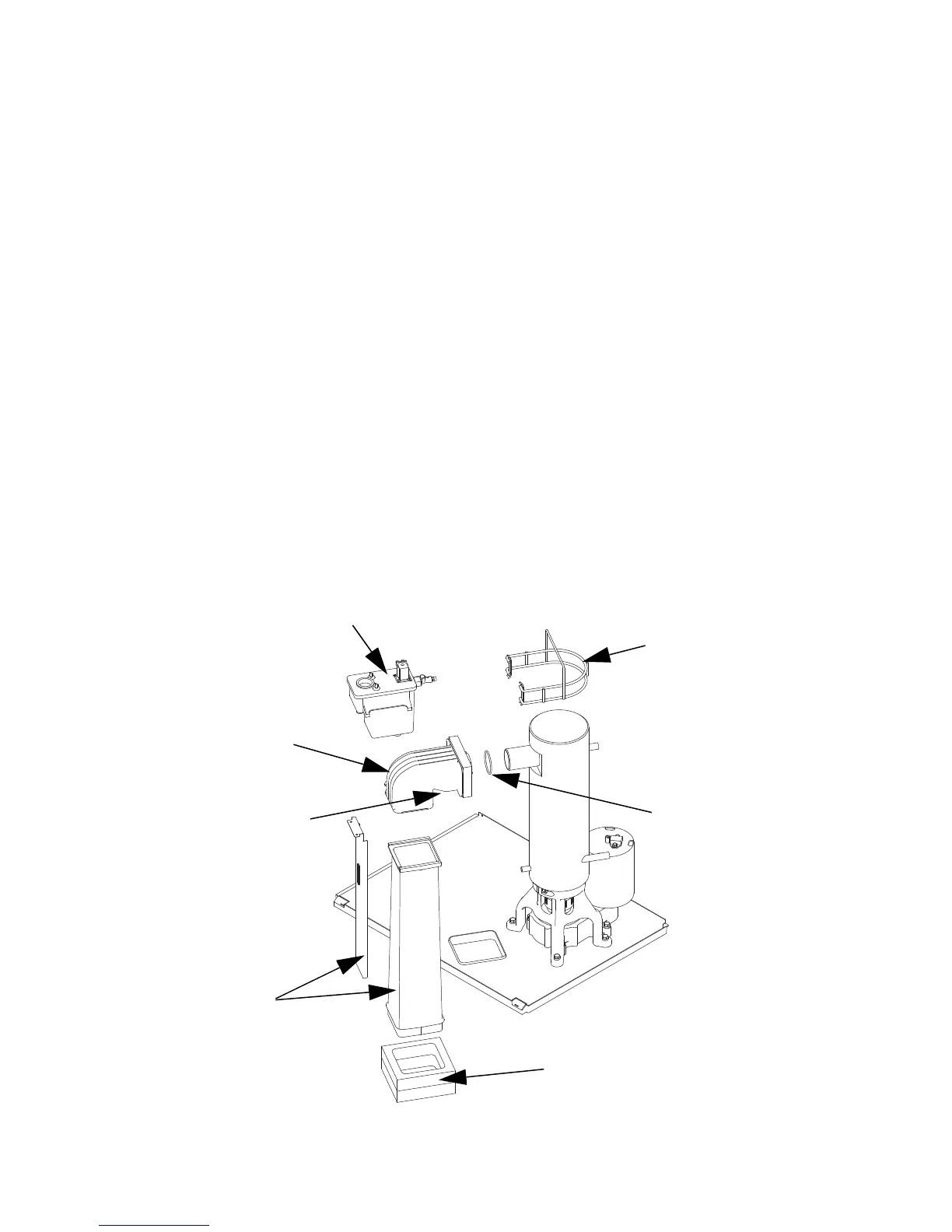

5. The ice chute elbow and the ice chute will be
removed separately. Support the ice chute and
pull forward on the elbow to remove.
6. Lift ice chute out of the base, tip bottom forward
and remove bin level sensor (stainless steel plate)
from the top of the ice chute.
7. Remove insulation from ice chute elbow and ice
chute base.
8. Remove evaporator spout o-ring.
NOTE: Clean and sanitize the base, spout and all ice
chute components before reinstalling.
