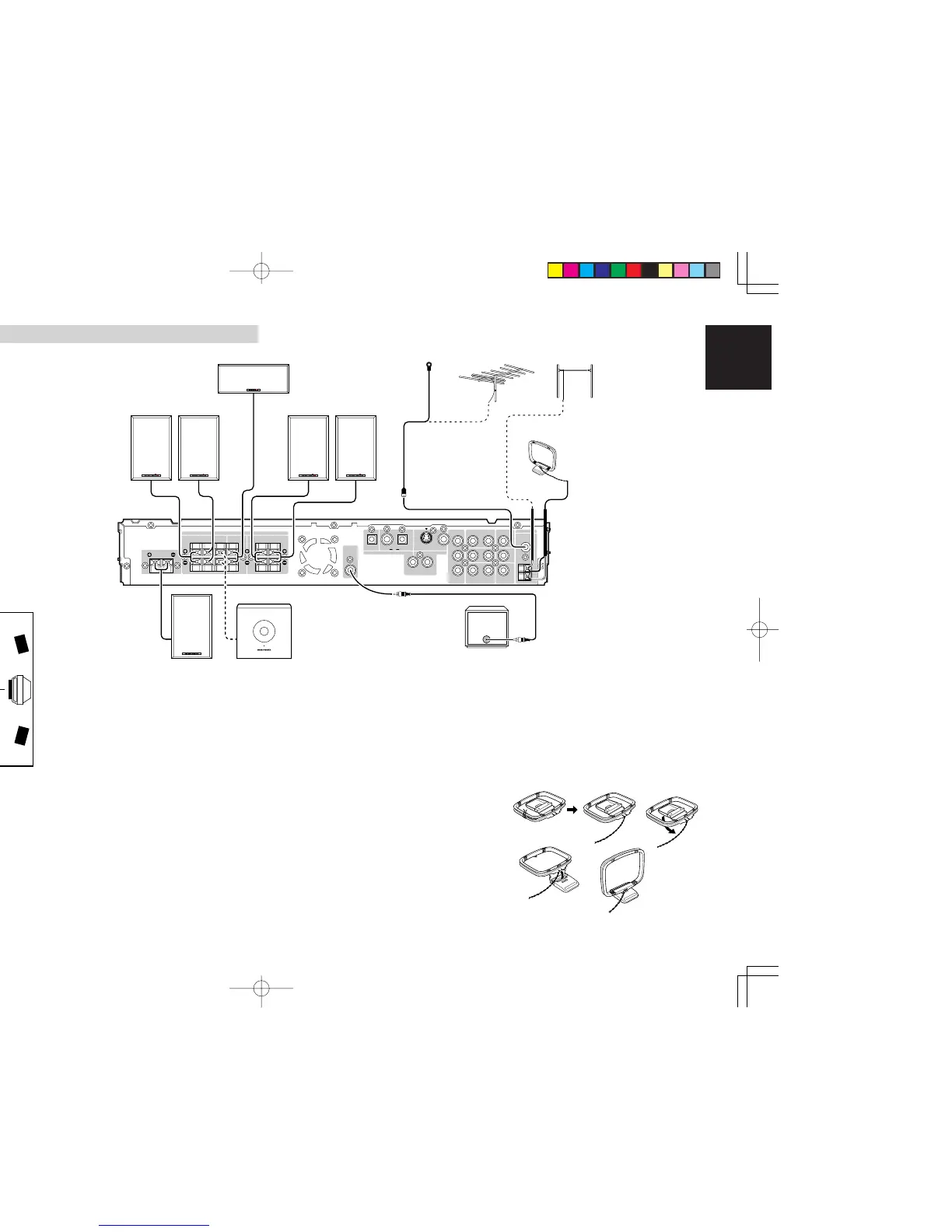

CONNECTING ANTENNA TERMINALS AND OTHER SPEAKERS
FM antenna
FM external antenna
AM loop antenna
Passive
Subwoofer
Front speaker
Right
Left
Surround speaker
Right
Left
Center speaker
1.
3. 4.
2.
AM external antenna
CONNECTING THE SUPPLIED FM ANTENNA
The supplied FM antenna is for indoor use only.
During use, extend the antenna and move it in various
directions until the clearest signal is received.
Fix it with push pins or similar implements in the
position that will cause the least amount of distortion.
If you experience poor reception quality, an outdoor
antenna may improve the quality.
CONNECTING AN FM OUTDOOR ANTENNA
Note:
•Keep the antenna away from noise sources
(neon signs, busy roads, etc.).
•Do not put the antenna close to power lines.
Keep it well away from power lines,
transformers, etc.
•To avoid the risk of lightning and electrical
shock, grounding is necessary.
Surround
back speaker
Active
Subwoofer
ASSEMBLING THE AM LOOP ANTENNA
1. Release the vinyl tie and take out the connection
line.
2. Bend in the reverse direction.
3. Inserting into the hole to attach the loop antenna
to the antenna stand.
4. With the antenna on top any stable surface.
CONNECTING AN AM OUTDOOR ANTENNA
An outdoor antenna will be more effective if it is
stretched horizontally above a window or outside.
Note:
•Do not remove the AM loop antenna.
•To avoid the risk of lightning and electrical
shock, grounding is necessary.
CONNECTING THE SUPPLIED AM LOOP
ANTENNA
The supplied AM loop antenna is for indoor use
only.
Set it in the direction and position where you receive
the clearest sound. Put it as far away as possible
from the unit, televisions, speaker cables, and power
cords.
1. Press and hold down the lever of the AM
antenna terminal.
2. Insert the bared wire into the antenna terminal.
3. Release the lever.
OTHER SPEAKERS PLACEMENT
If you have the other speaker set, perform the
following speaker placement and connection.
Front left and right speakers
We recommend to set the front L and R speakers
with 45-60 degrees from the listening position.
Center speaker
We recommend to set the front line of the center
speaker with the front L/R speakers.
Surround left and right speakers
Place the speakers right beside of the listening
position or a little forward.
Surround back speaker
Place the speaker behind of the listening position.
Subwoofer
We recommend to use a subwoofer to have
maximum bass effect. Subwoofer bears only low
frequency range so you can place it anywhere in
the room.
Sub
woofer
Front
Left
Center
Front
Right
Surround-Left
Surround-Right
Surround-
Back
