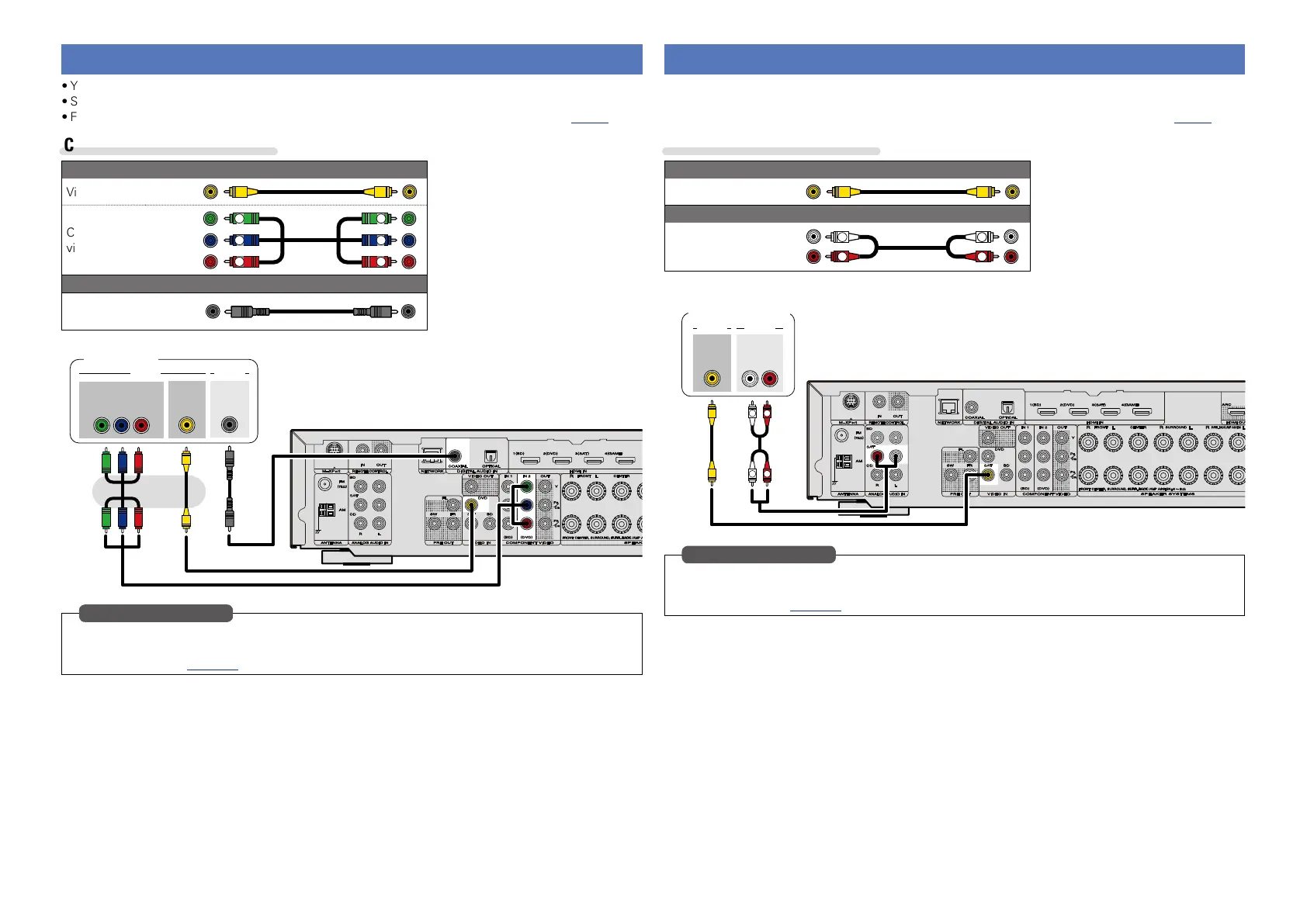

Connecting a set-top box (Satellite tuner/Cable TV)
•You can watch satellite or cable TV.
•Select the connector to use and connect the device.
•For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage7).
Cables used for connections
Video cable (sold separately)
Video cable
Audio cable (sold separately)
Audio cable
R
L
R
L
R
L
R
L
VIDEO
AUDIO
AUDIO
RL
OUT
OUT
VIDEO
Satellite tuner/
Cable TV
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage101)
in Set as Necessary
Connecting a DVD player
•You can enjoy video and audio from a DVD.
•Select the connector to use and connect the device.
•For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage7).
Cables used for connections
Video cable (sold separately)
Video cable
Component
video cable
Y
PB
PR
Y
PB
PR
Audio cable (sold separately)
Coaxial
digital cable
VIDEO AUDIO
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
OUT
COAXIAL
DVD player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage101)
in Set as Necessary
