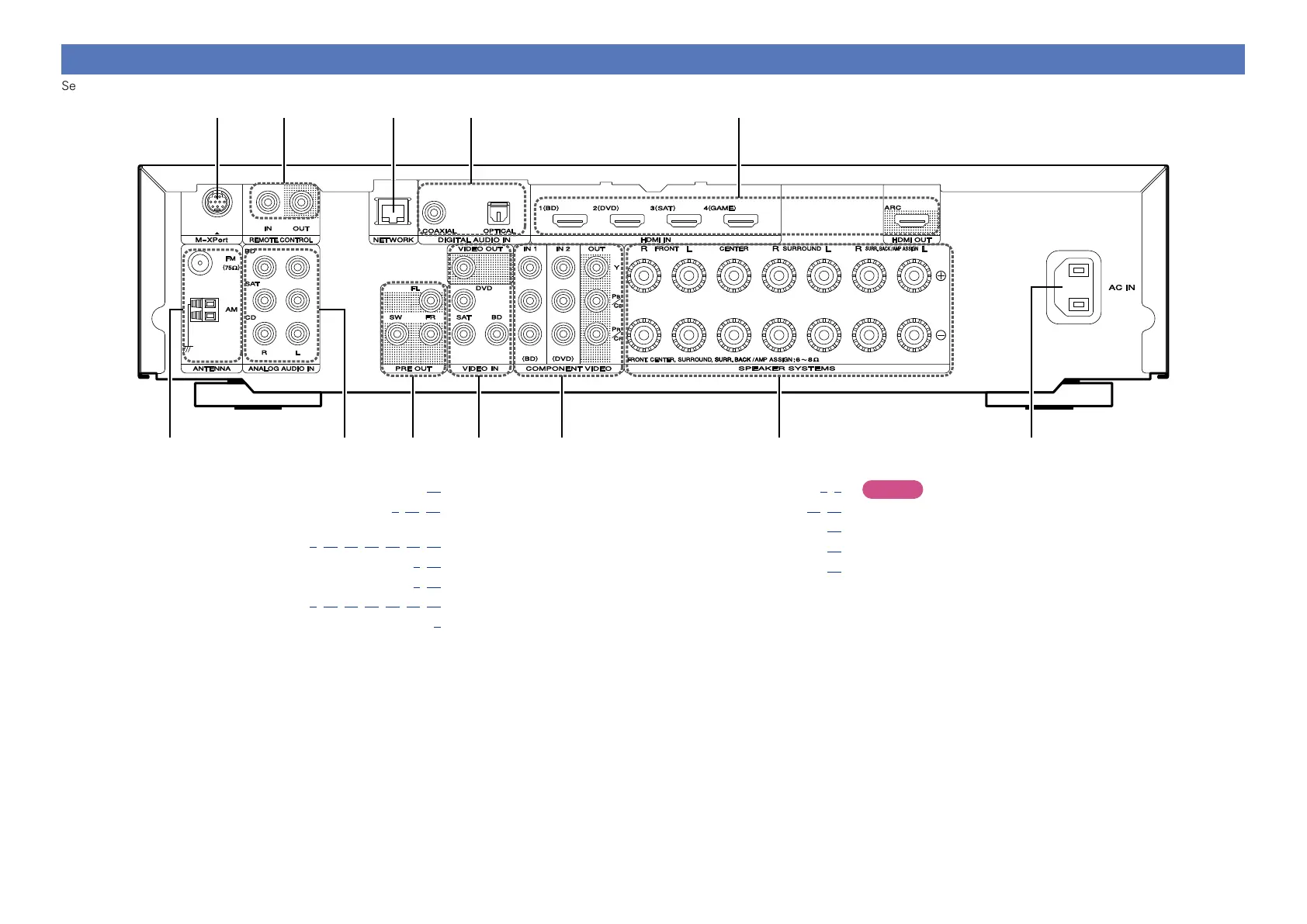

Rear panel
See the page indicated in parentheses ( ).
q w e r t y u
o
Q1 Q0Q2 i
q FM/AM antenna terminals ····················································· (12)
w Analog audio connectors ·············································· (9, 10, 12)
e PRE OUT connectors
························································ (C 6, 53, 54, 55, 56, 57, 58)
r VIDEO connectors ······························································· (9, 10)
t COMPONENT VIDEO connectors ······································· (9, 10)
y Speaker terminals ························· (C 6, 53, 54, 55, 56, 57, 58)
u AC inlet (AC IN) ·································································· (C 5)
i HDMI connectors ··························································· (C 3, 8)
o Digital audio connectors ··················································· (10, 12)
Q0 NETWORK connector ······························································ (14)
Q1 REMOTE CONTROL connectors ············································· (61)
Q2 M-XPort connector ·································································· (13)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
