Marantz PM8005 - Heat Sink Assy

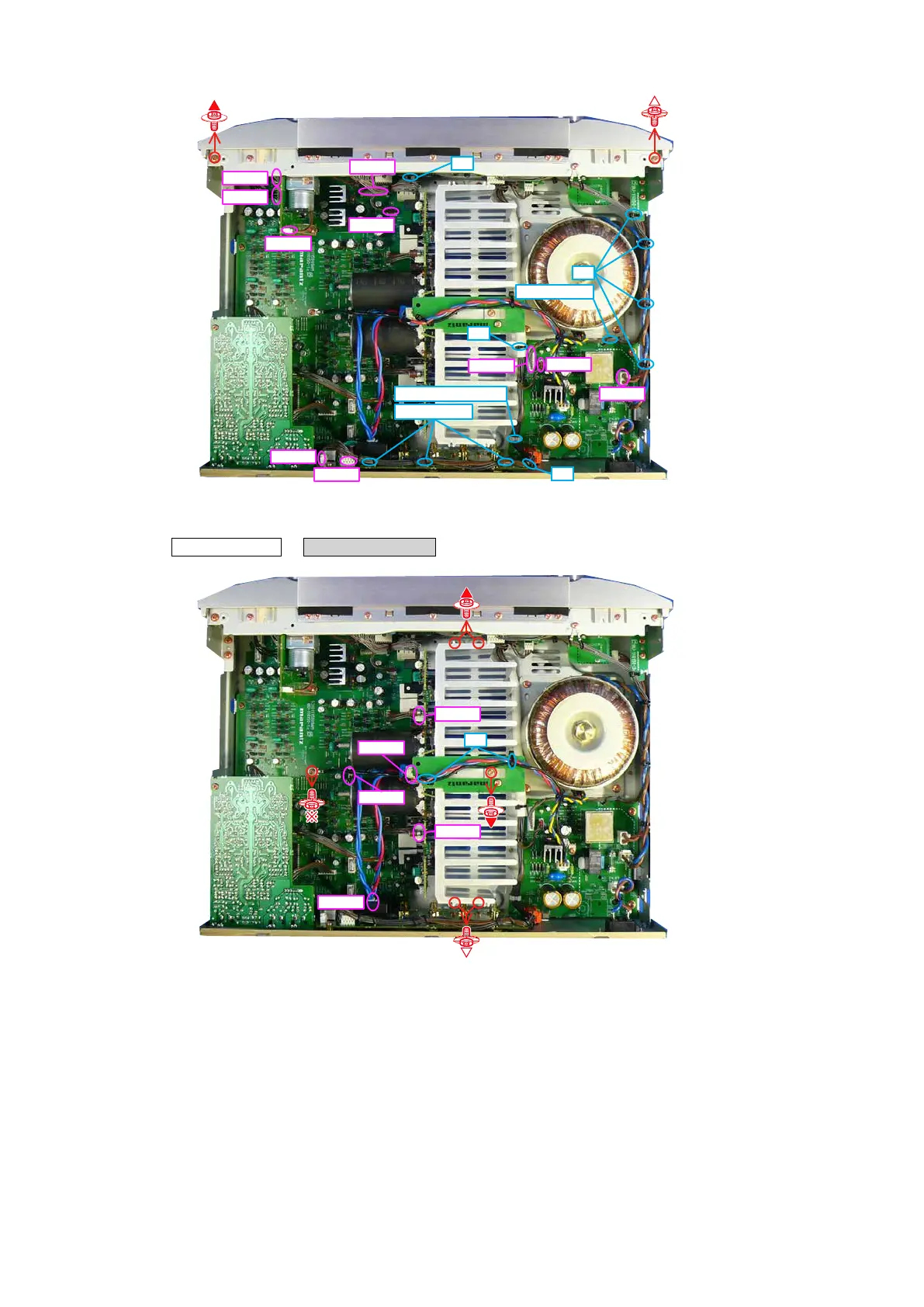

(2) Cut the wire clamp band, then remove the style pin and screws. Disconnect the connector wires.
2. HEAT SINK ASSY
Proceeding : TOP COVER
→
HEAT SINK ASSY
(1) Cut the wire clamp band, then remove the screws. Disconnect the connector wires.
N8101
N9001
N5901
N8502
N2801
N2802
N7503
N7502
N8507
N8503
STYLE PIN
cut
cut
WIRE CLAMPER
STYLE PIN
cut
cut
N7001
N7002
N9002
N8001
N7501
cut
