Marantz PM8005 - Phono Amp Pcb; Standby Pcb

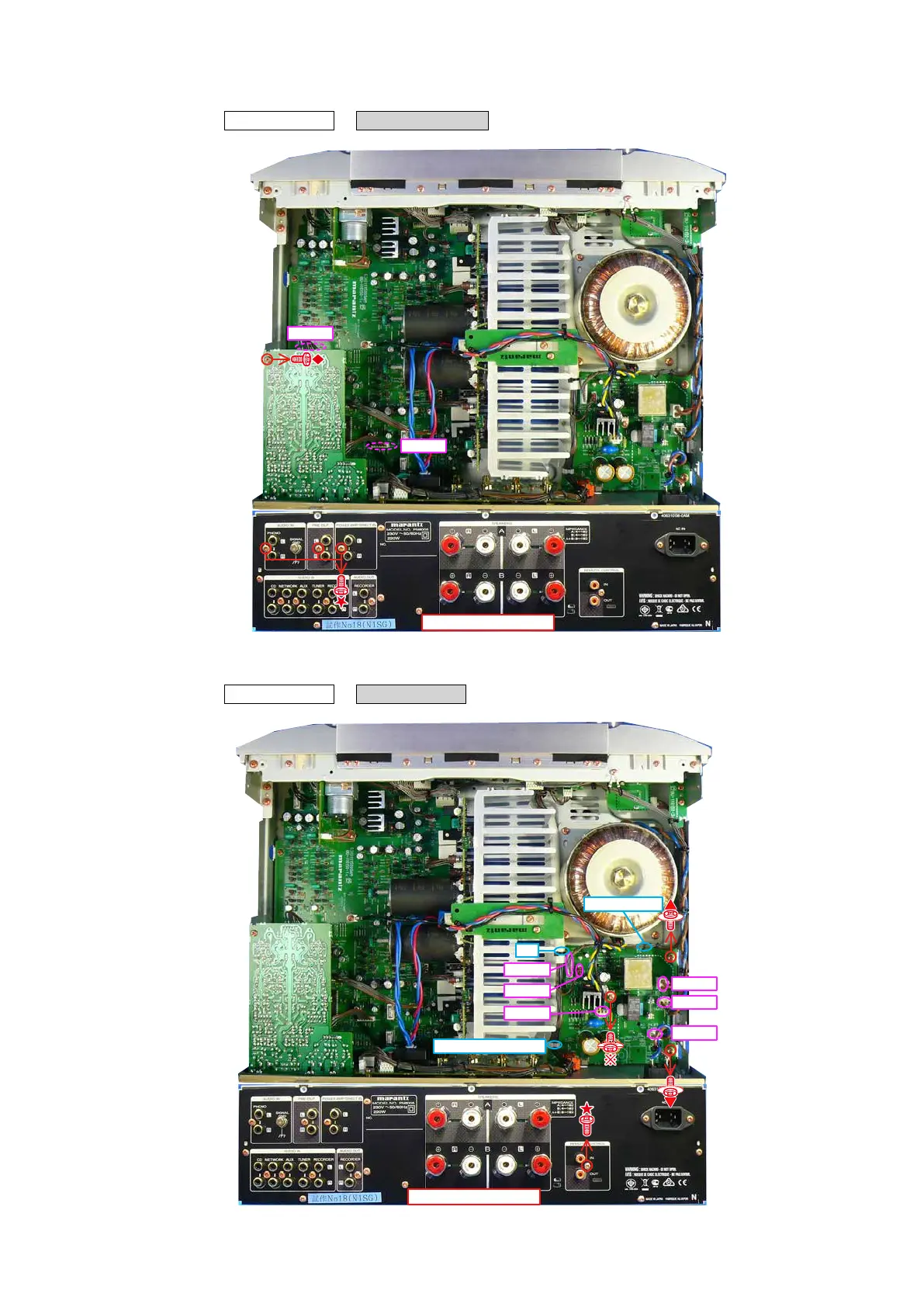

3. PHONO AMP PCB
Proceeding : TOP COVER
→
PHONO AMP PCB
(1) Remove the screws. Disconnect the connector wires.
4. STANDBY PCB
Proceeding : TOP COVER
→
STANDBY PCB
(1) Cut the wire clamp band, then remove the style pin and screws. Disconnect the connector wires.
Shooting direction: A
N3301
N2803
Shooting direction: A
N8502
N8505
N8501
N8503
N8504
N8507
STYLE PIN
cut
WIRE CLAMPER
