Mariner 90 - Installation

6A-33POWER TRIM90-13645--2 495

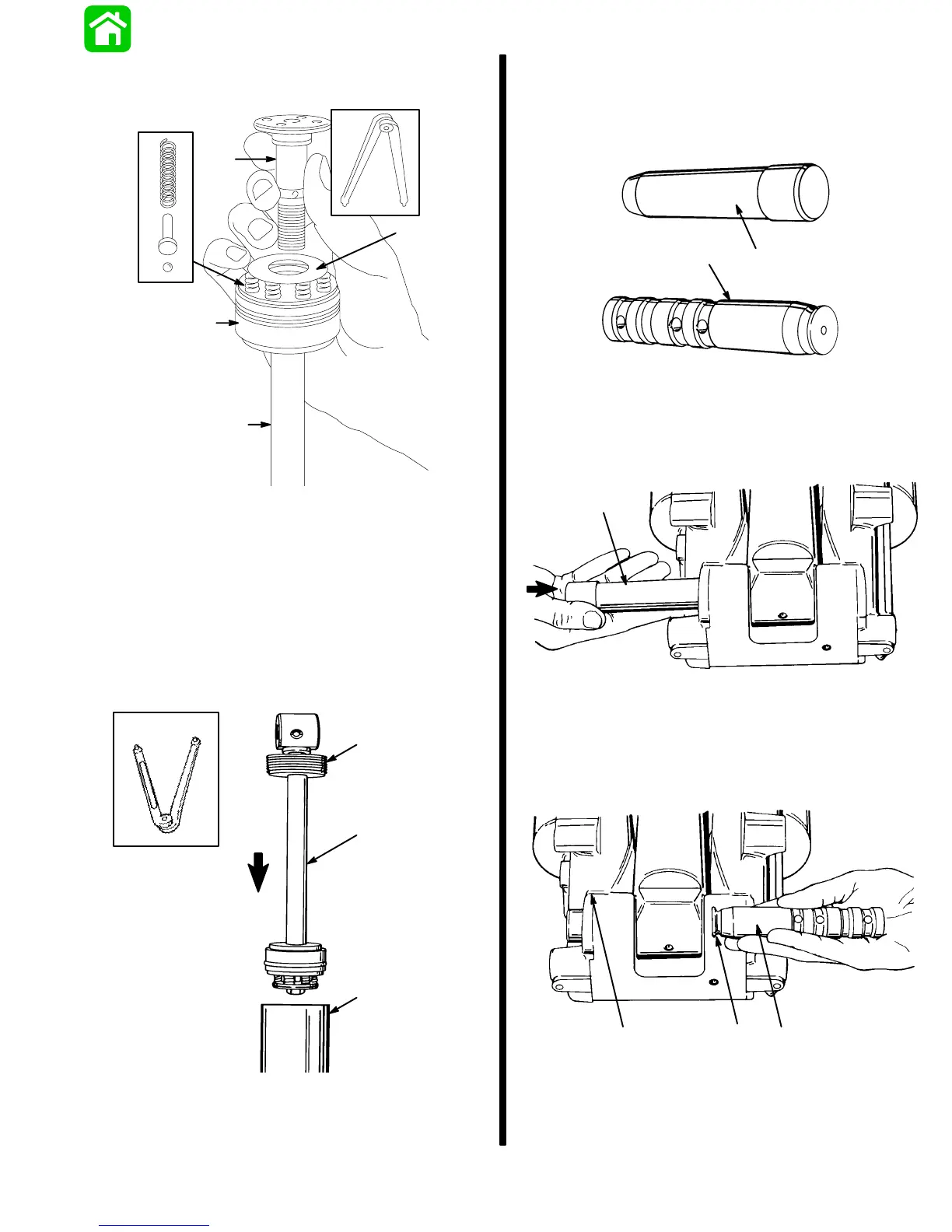

Screw rod end into rod. Tighten rod end securely
using Spanner Wrench.
17222
a
b
c
d
e
a - Rod End
b - Washer
c - Piston
d - Rod
e - Check Valve Assemblies (7)
8. Clamp housing in a soft jawed vise.
Install rod assembly into housing.
Tighten cap securely using Spanner Wrench
(91-74951).
51341
a
b
c
51337
91-74951
a - Housing
b - Rod Assembly
c - Cap
INSTALLATION
1. Lubricate alignment tool and shaft with Quicksil-
ver Power Trim and Steering Fluid or Automatic
Transmission Fluid (ATF) Type F, FA or Dexron II.
51369
a
b
a - Alignment Tool (91-11230)
b - Shaft
2. Align tilt ram with Power Trim housing by inserting
alignment tool in direction shown.
51348
a
a - Alignment Tool
3. Install shaft into housing, as shown.
Groove will align with hole when shaft is properly
installed.
51352
abc
a - Shaft
b - Groove
c - Hole
