Mariner 90 - COMMANDER Side Mount Remote Control (Power Trim;Tilt Electric Start with Warning Horn) Wiring Diagram

2D-1390-13645--2 495 ELECTRICAL AND IGNITION

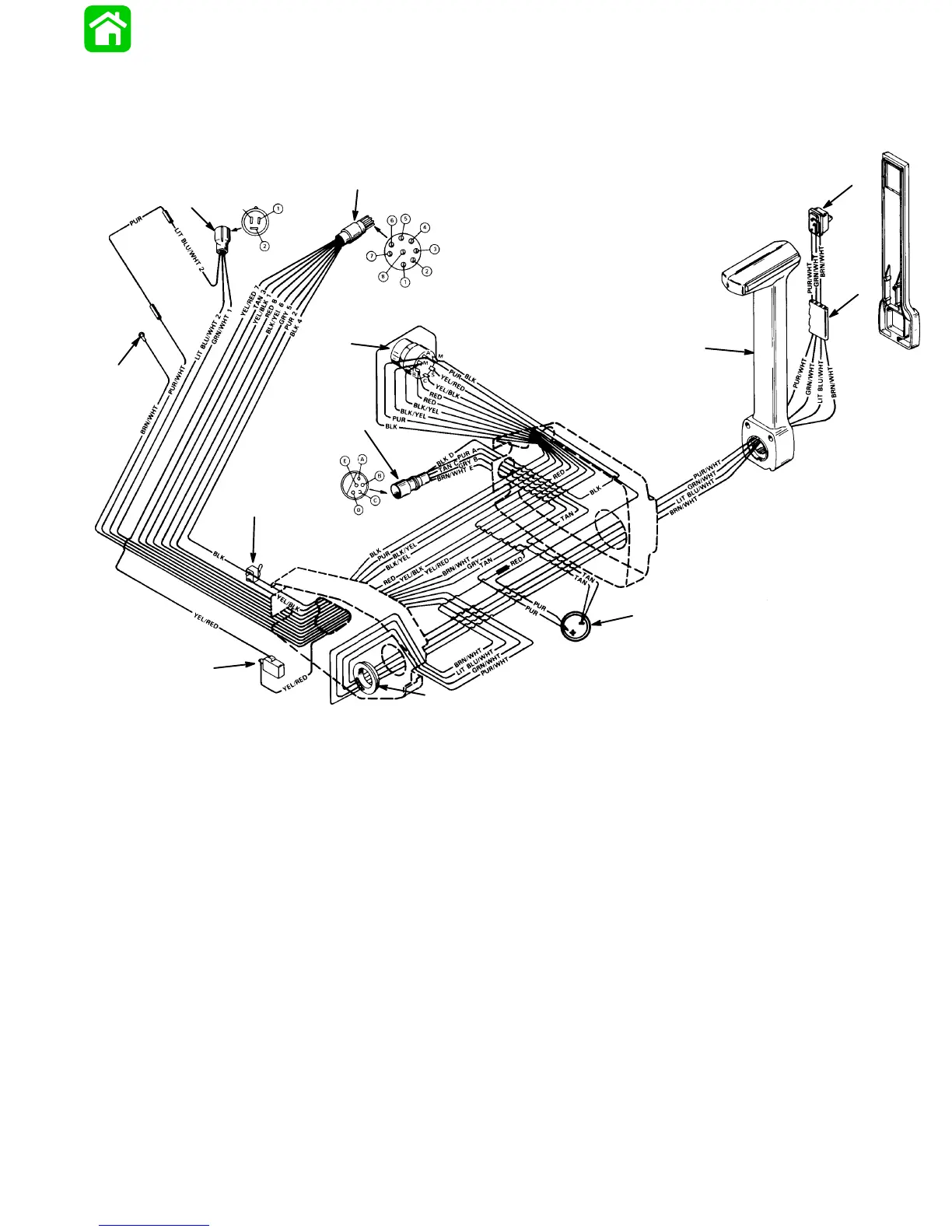

COMMANDER Side Mount Remote Control
(Power Trim/Tilt Electric Start With Warning
Horn) Wiring Diagram
24072
BLK  BLACK
BLU  BLUE
BRN  BROWN
GRN  GREEN
GRY  GRAY
PUR  PURPLE
RED  RED
TAN  TAN
WHT  WHITE
YEL  YELLOW
LIT  LIGHT
a
b
c
d
e
f
g
h
i
j
k
l
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
g - Trim/Tilt Switch
h - Wire Retainer
i - Control Handle
j - Trim Harness Bushing
k - Trim Harness Connector
l - Lead to Trim Indicator Gauge
