Mariner 90 - Models Without Low Oil Warning Module). 2 D-2

2D-2 90-13645--2 495ELECTRICAL AND IGNITION

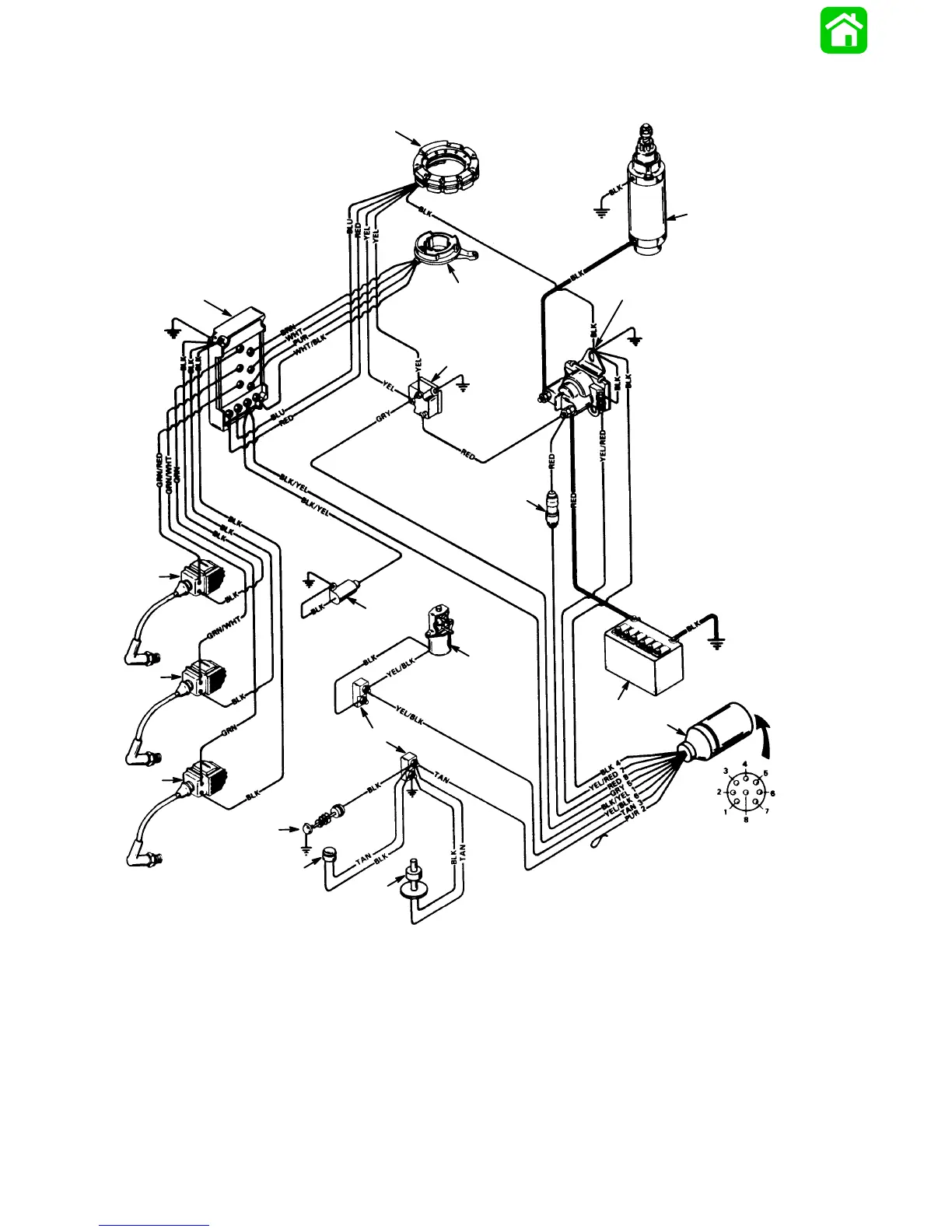

Engine Wiring Diagram (3 Cylinder
Models Without Low Oil Warning Module)
23888
BLK  BLACK
BLU  BLUE
BRN  BROWN
GRY  GRAY
GRN  GREEN
PUR  PURPLE
RED  RED
TAN  TAN
VIO  VIOLET
WHT  WHITE
YEL  YELLOW
a
b
c
d
e
f
h
i
j
k
l
m
n
o
p
q
r
g
a - Stator
b - Trigger
c - Switch Box
d - Ignition Coil Cylinder No. 1
e - Ignition Coil Cylinder No. 2
f - Ignition Coil Cylinder No. 3
g - Mercury (Tilt) Stop Switch
h - Starter Motor
i - Starter Solenoid
j - Rectifier
k - Fuse Holder (20 Amp Fuse)
l - Battery
m- Wiring Harness Connector
n - Enrichment Valve
o - Terminal Block
p - Temperature Switch – Opens [170F
 8 (77C  8)]
Closes [190F
 8 (88C  8)]
q - Test Button
r - Low Oil Sensor
