6C-1590-13645--2 495 POWER-TRIM
Electrical System Troubleshooting
COMMANDER 2000 Side Mount
Remote Control (Power Trim/Tilt
Electric Start with Warning Horn)

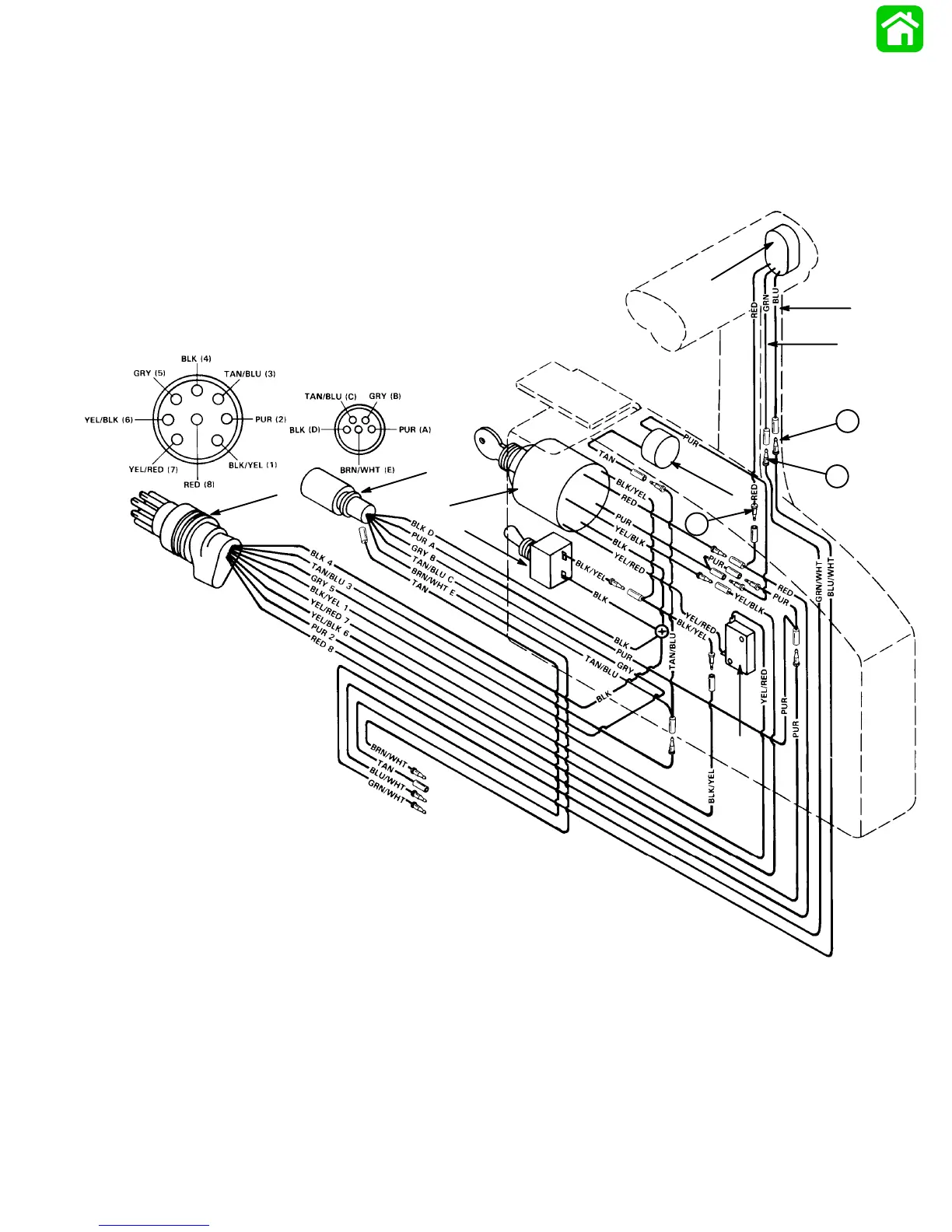

Wiring Diagram
23891
4
5
7
UP
DOWN
a
c
d
e
f
g
b
BLK BLACK
BLU BLUE
BRN BROWN
GRY GRAY
GRN GREEN
PUR PURPLE
RED RED
TAN TAN
WHT WHITE
YEL YELLOW
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
g - Trim/Tilt Switch
To Next Page
