Mariner 90 - Trim Motor Reassembly

6C-2790-13645--2 495 POWER-TRIM
b
51007
b - Screws [100 lb. in. (11.3 N·m)]
3. Secure power trim unit in soft jawed vise.

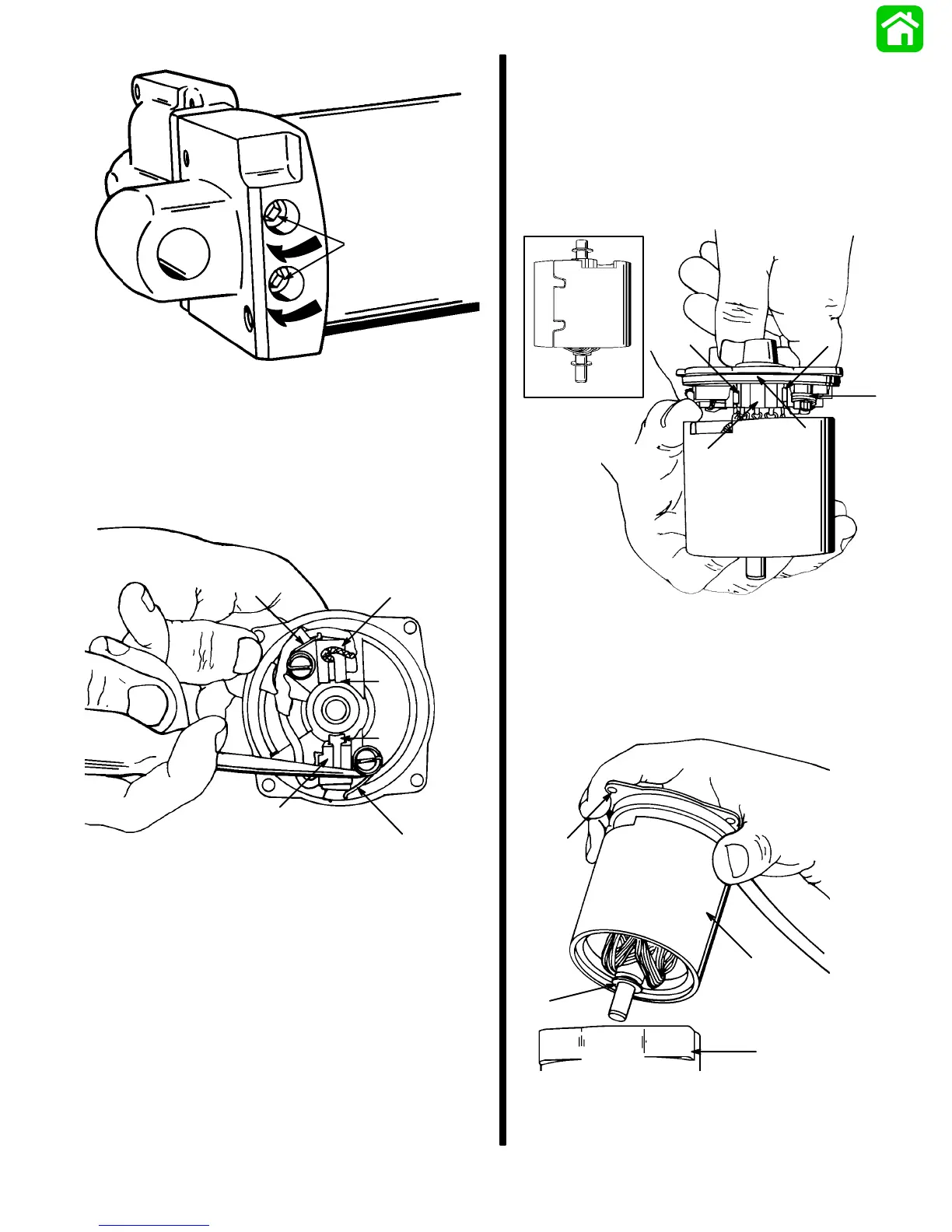

Trim Motor Reassembly
1. Place brush tension springs on outer ends of
brush housings to release tension on brushes.
51485
a
b
c
a
b
c
a - Brush Tension Spring (2)
b - Brush Housing (2)
c - Brush (2)
2. Lubricate end cap bushing with Quicksilver 2-4-C
Lubricant and install armature and motor frame
into end cap. As brushes contact commutator, re-
lease brush tension spring from ends of brush
housings (returning springs to apply brush pres-
sure to commutator). Install washer on each end
of armature before installing armature into end
cap (see inset).
51484
d
a
b
c
b
a - End Cap Bushing. Lubricate with Quicksilver 2-4-C w/Teflon
b - Brush (2)
c - Commutator
d - Brush Tension Spring (2)
3. Guide armature and motor frame into reservoir
housing as shown.
51485
b
a
c
d
a - End Cap
b - Motor Housing
c - Armature and Motor Frame
d - Washer (One Each End of Armature)
