Mariner 90 - Trim Rod Reassembly

6C-2990-13645--2 495 POWER-TRIM

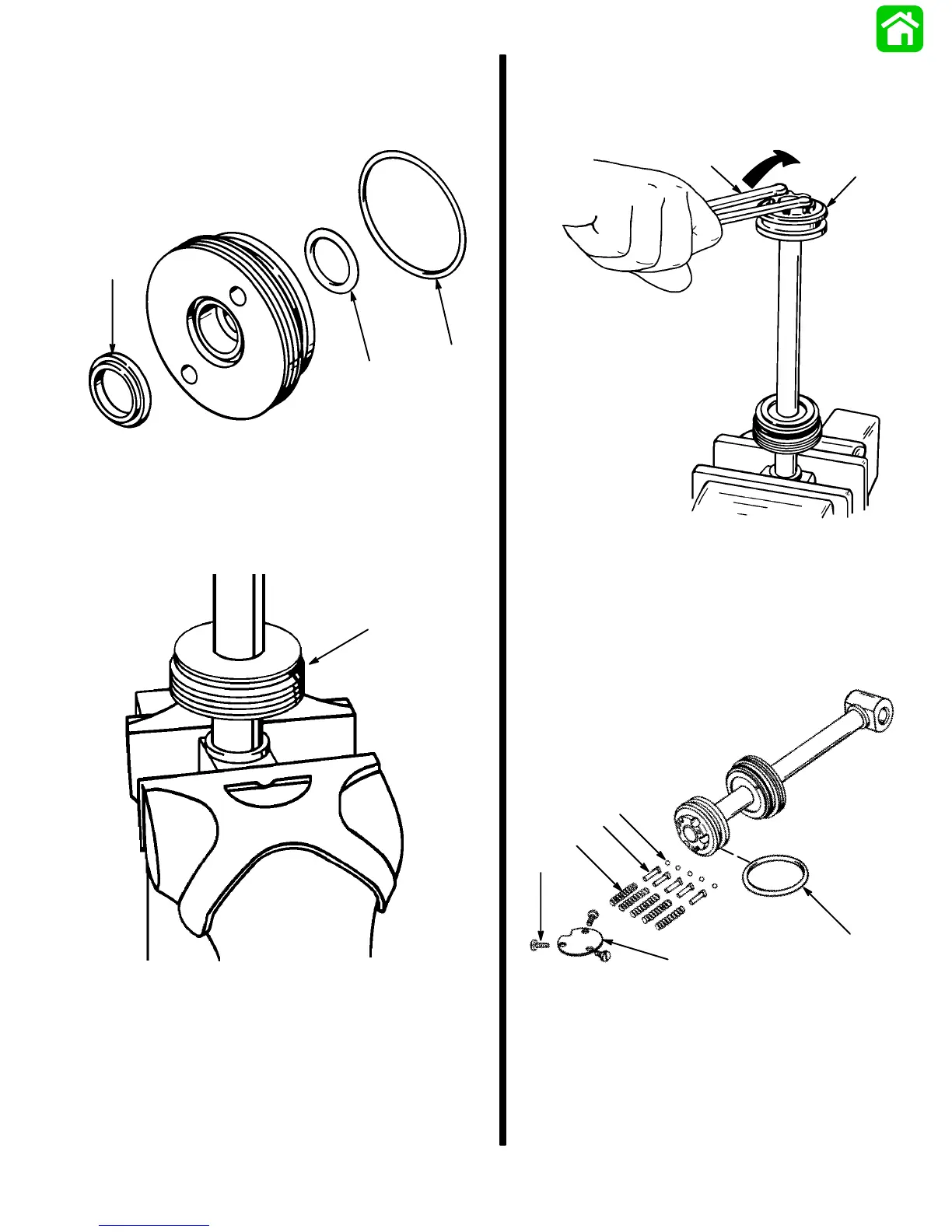

Trim Rod Reassembly
1. Install lubricated O-rings and rod wiper to end
cap.
51145
a
b
c
a - Rod Wiper
b - Inner O-ring
c - Outer O-ring
2. Secure trim rod in soft jawed vise as shown.
3. Slide end cap onto trim rod.
51146
a
a - End Cap
4. Apply Loctite 271 (Obtain Locally) to threads of
trim rod and install rod piston. Tighten piston se-
curely using spanner wrench (1/4 in. x 5/16 in.
long peg).
51146
b
a
a - Trim Rod Piston
b - Spanner Wrench
5. Install lubricated O-ring to trim rod piston.
6. Install check ball components into its respective
bore.
51147
f
e
d
c
b
a
a - Screw (3)
b - Plate
c - O-ring
d - Ball (5)
e - Seat, Spring (5)
f - Spring (5)
