2D-12 90-13645--2 495ELECTRICAL AND IGNITION

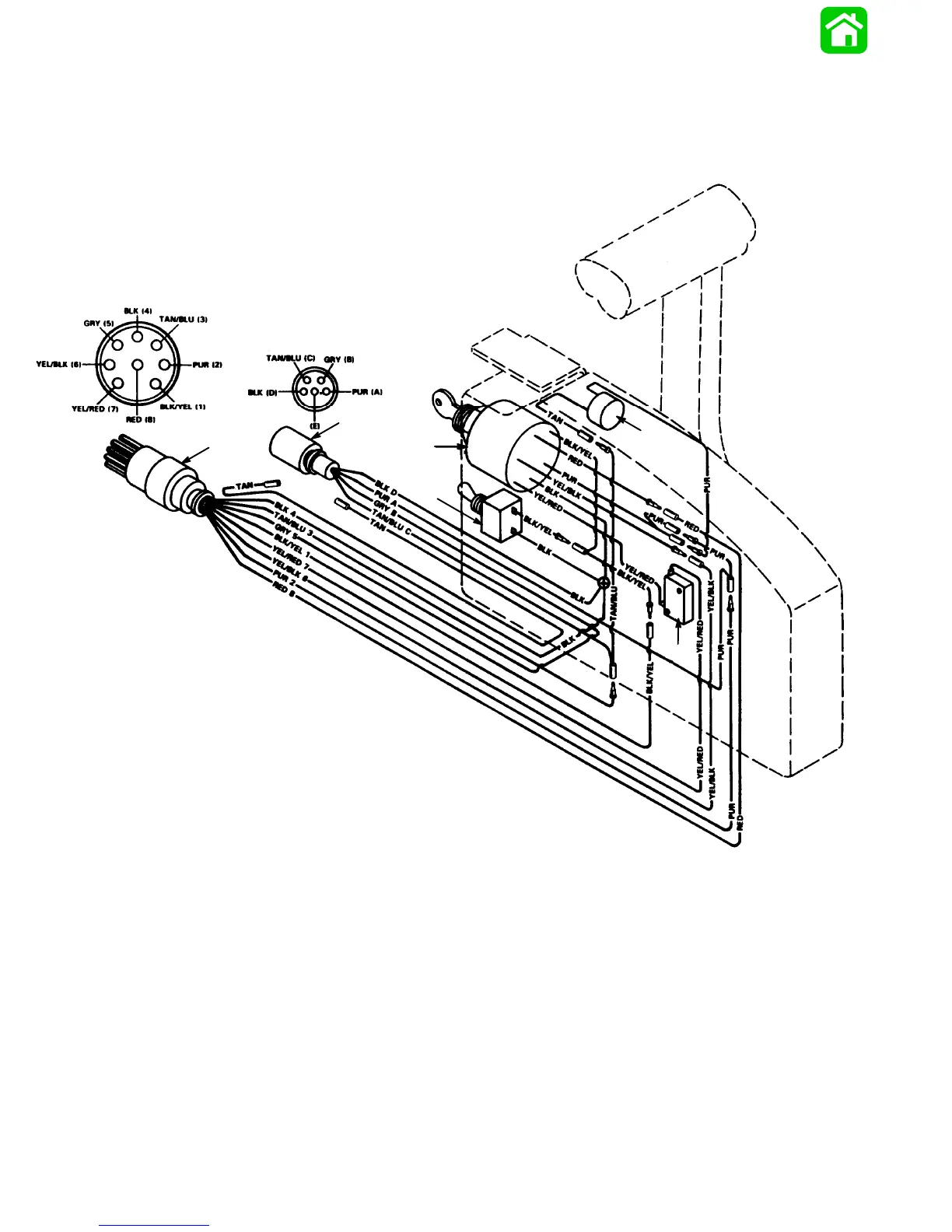

COMMANDER 2000 Side Mount Remote Control
(Electric Start With Warning Horn) Wiring Diagram
23892
BLK BLACK
BLU BLUE
BRN BROWN
GRY GRAY
GRN GREEN
PUR PURPLE
RED RED
TAN TAN
WHT WHITE
YEL YELLOW
a
b
c
d
e
f
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
To Next Page
