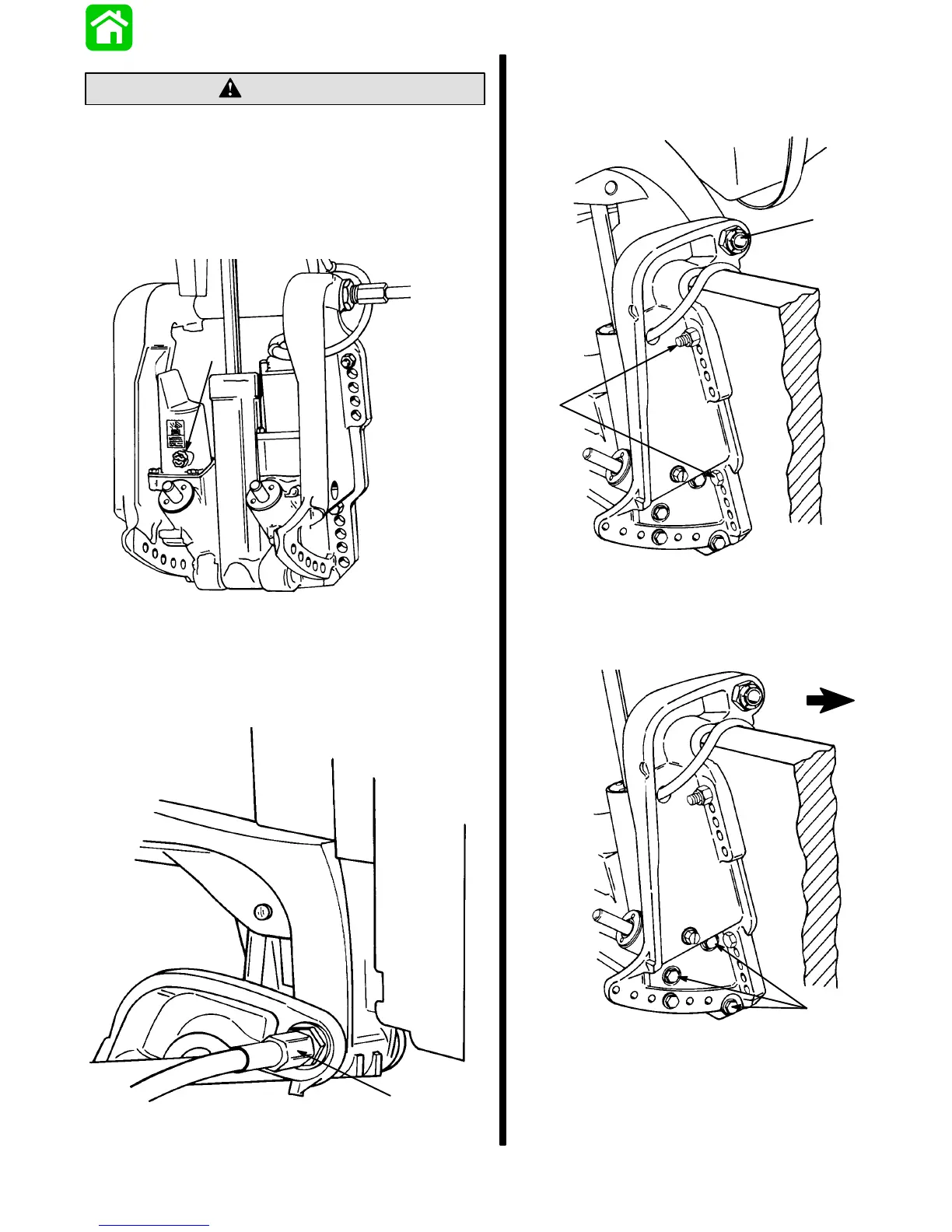

90-13645--2 495 6B-15POWER TRIM
Disconnect battery cables at battery before
removing power trim wires from solenoids.
CAUTION
3. Disconnect power trim wires at solenoids (BLUE,
GREEN, and BLACK).
4. Open filler cap and release any remaining pres-
sure in the system.
5133
a
a - Filler Cap
IMPORTANT: Outboards equipped with thru-the-
tilt-tube steering - remove steering link arm from
end of steering cable and cable retaining nut from
tilt tube.
51354
a
a - Retaining Nut
5. Remove outboard transom mounting bolts, and
loosen tilt tube nut until nut is flush with end of tilt
tube thread.
51375
b
a
a - Transom Mount Bolts (2)
b - Tilt Tube Nut (flush with end of thread)
6. Remove 3 screws and washers and move star-
board transom bracket.
51375
a
b
a - Screws (3)
b - Washers (3)
To Next Page
