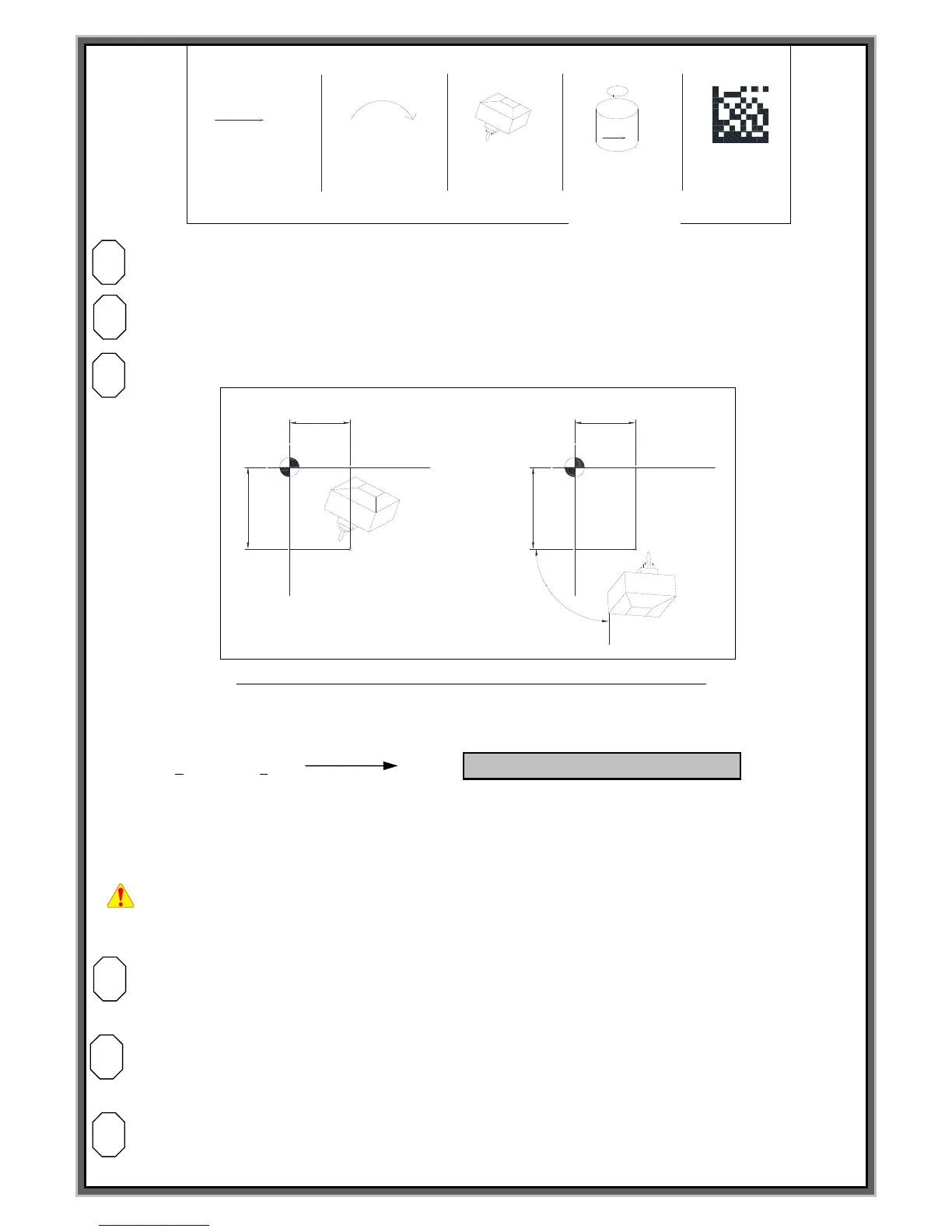

X : Center of circle for X axis from Zero point (30mm is X:0300 <Unit : 0.1mm>
Y: Center of circle for Y axis from Zero point (30mm is X:0300 <Unit : 0.1mm>
A: Marking direction of PLT logo file (180 º is A:180.) CCW direction by Zero point
% Delicate adjustment of X and Y value on F3 mode %
0152 0152
0151 Press + 0151
Ln X:0150 Y:0150 Ln X : 0150 Y : 0150
(After move the cursor like the above) 0149 Press - 0149
0148 0148
Put the cursor on the coordinates [0000] and press + and – on the keyboard.
Then marking pin move by 0.1mm, can modify marking data.
**Caution – For storing, you have to press “ENTER”key
FONT : Select PLT file on the F7 PLOT LOAD. (Press SPACE BAR to change the menu)
Loading 4 PLT file to PLT1 ~ 4 and then load the PLT file on the F7 PLOT LOAD. (Refer to Pg 51)
CH : PLT file size.
PX : It doesn`t impact to the PLT file marking.
