MR 150M–1050M SINGLE – MXIII CONTROLLER
OPERATION
26

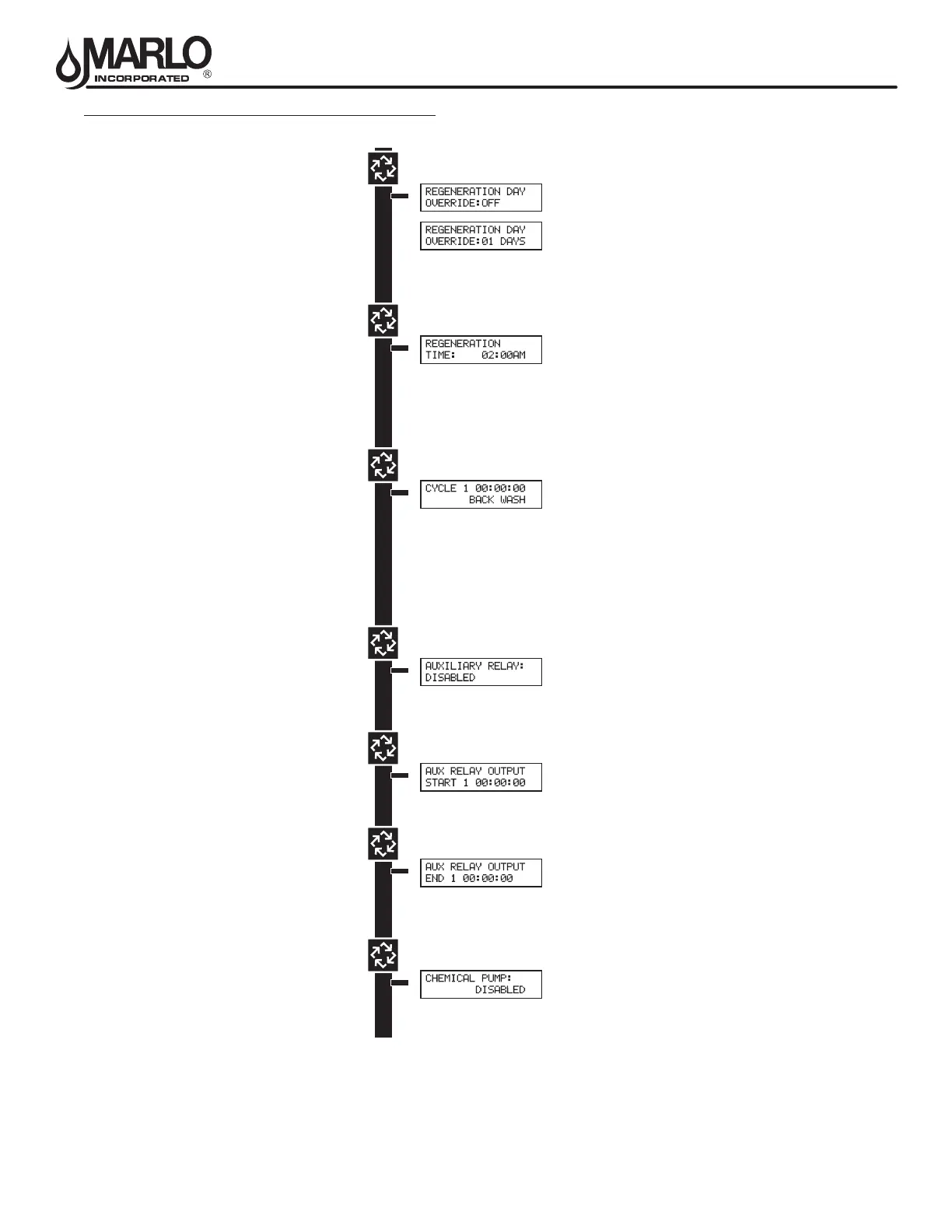

MASTER PROGRAMMING MODE FLOW CHART
CAUTION: Before entering Master Programming, please contact your local professional water dealer.
Example:
O (Default)
Options: O (Default) or On
Range: 1 to 99 Days
Example:
1 Day
Example:
Cycle 1 in Back Wash Mode
Options: Regeneration Cycle Step #1
Regeneration Cycle Step #2
Regeneration Cycle Step #3
Regeneration Cycle Step #4
Regeneration Cycle Step #5
NOTE: Please refer to the “Regenerant Flow Default Cycle Steps & Times”
in the Master Programming Mode section of the manual.
Example:
Auxiliary Relay is Disabled
Options: Enabled
Disabled (Default)
Example:
Chemical Pump is Disabled
Options: Enabled
Disabled (Default)
Example:
2:00 A.M. (Default)
Options: A.M. (U.S. Format)
HR (Metric Format)
NOTE: Regeneration time will not appear unless
Regeneration Day Override is on.
Example:
Auxiliary Relay Output in Start 1 at
0 hours, 0 minutes, & 0 seconds
Range: 00:00:00 to 18:00:00
Example:
Auxiliary Relay Output in End 1 at
0 hours, 0 minutes, & 0 seconds
Range: 00:00:00 to 18:00:00
NOTE: Only displayed if Auxiliary
Relay is enabled in previous screen.
Auxiliary Relay will only display if
Chemical Pump is OFF for System
Types 6 & 7.
NOTE: If Stager is chosen for Valve
Type, the Regeneration Cycle Step
description will not display.
NOTE: This screen will only display on
the lead unit for System Types 6 & 7.
For all other System Types, it will display
for all units.
