MR 150M–1050M SINGLE – MXIII CONTROLLER
OPERATION
35
DIAGNOSTIC PROGRAMMING GUIDE
When the Diagnostics Mode is entered, all available displays are viewed as needed. Depending on current option
settings, some displays cannot be viewed.
Overview Diagnostic Mode
The current diagnostic will be displayed until Extra Cycle key is pressed. There is no time limit on each display. The
timer will display individual valve information, not system information. In the event of regeneration occurring while
displaying diagnostics, the regeneration step and time remaining will be displayed. When regeneration has been
completed, the display will return to the normal Time of Day display.
Overview Diagnostic Mode
Push and Release the “D” button to enter. Pressing the Extra Cycle button will move to the next diagnostic to be
displayed. Push the Extra Cycle button once per display until all are viewed. Pressing the Diagnostic button, while
in the Diagnostic Mode, will cause the unit to leave the Diagnostic Mode and return to the normal time of day
display.

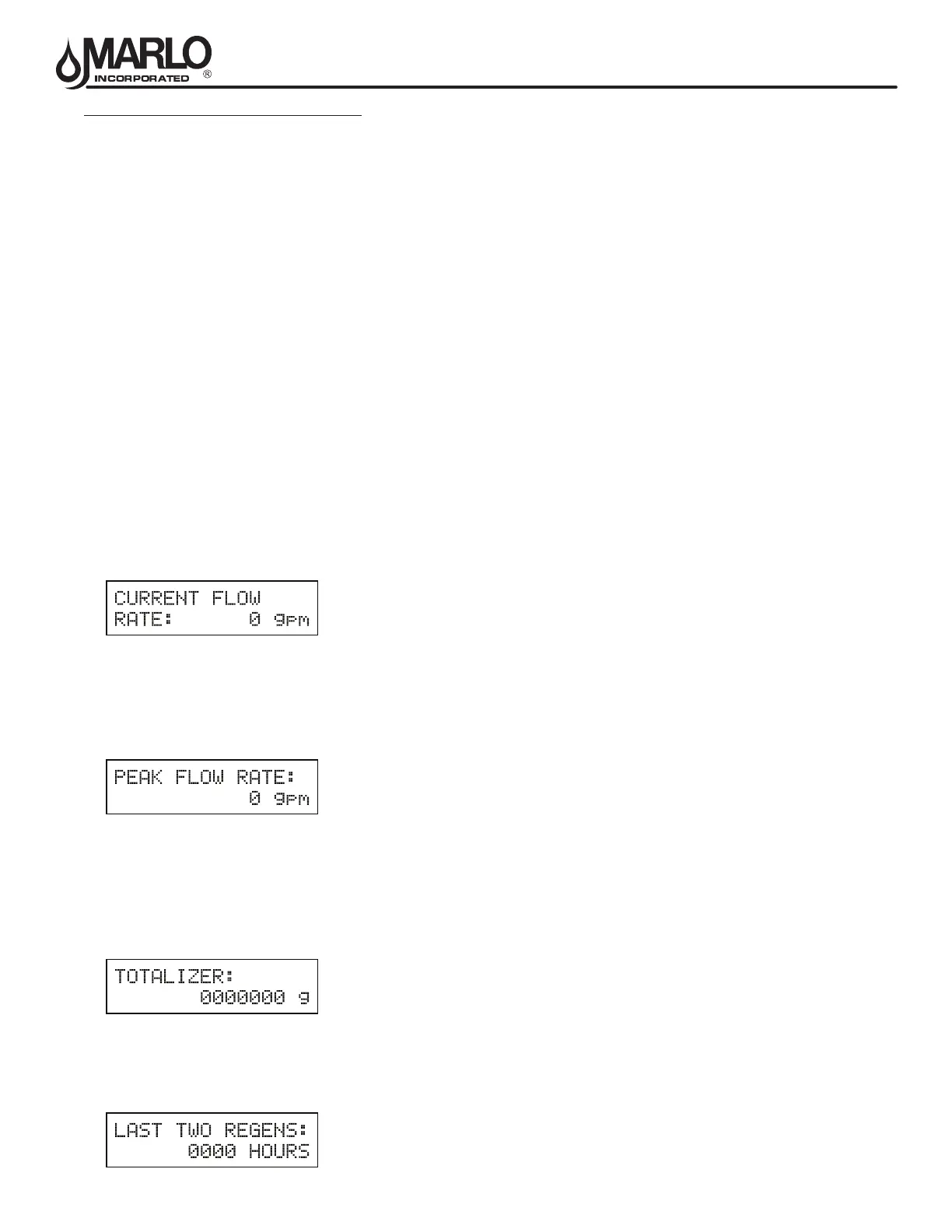

Current Flow Rate
Flow Rate for this particular Timer will be calculated and displayed. Flow rates will be calculated every second. The
display updates once per second. Flow rates are dependent upon the meter used.
• 1” Paddle Meter Maximum Flow Rate: 75 gpm (.28 m3/m)
• 1.5” Paddle Meter Maximum Flow Rate: 90 gpm (.34 m3/m)
• 2” Paddle Meter Maximum Flow Rate: 175 gpm (.66 m3/m)
• 3” Paddle Meter Maximum Flow Rate: 350 gpm (1.32 m3/m)
• 1” and 1.5” Turbine Meter: 75 gpm
1. Press the Extra Cycle button.
Peak Flow Rate
The Peak Flow Rate since the last regeneration will be captured.
• Range: 0 to Maximum Number
1. Press the Extra Cycle button.
Totalizer
The total volume of treated water that passes through a meter will be counted.
NOTE: The user cannot edit below the current volume remaining.
1. Reset to zero by holding the Up and Down arrow keys for 5 seconds during the Totalizer display.
2. Press the Extra Cycle button.
Hours Between Last Two Regenerations
The hours between the last two regenerations will be saved and displayed.
1. Depress the Extra Cycle button.
