Chapter 4 INSTALLATION 39

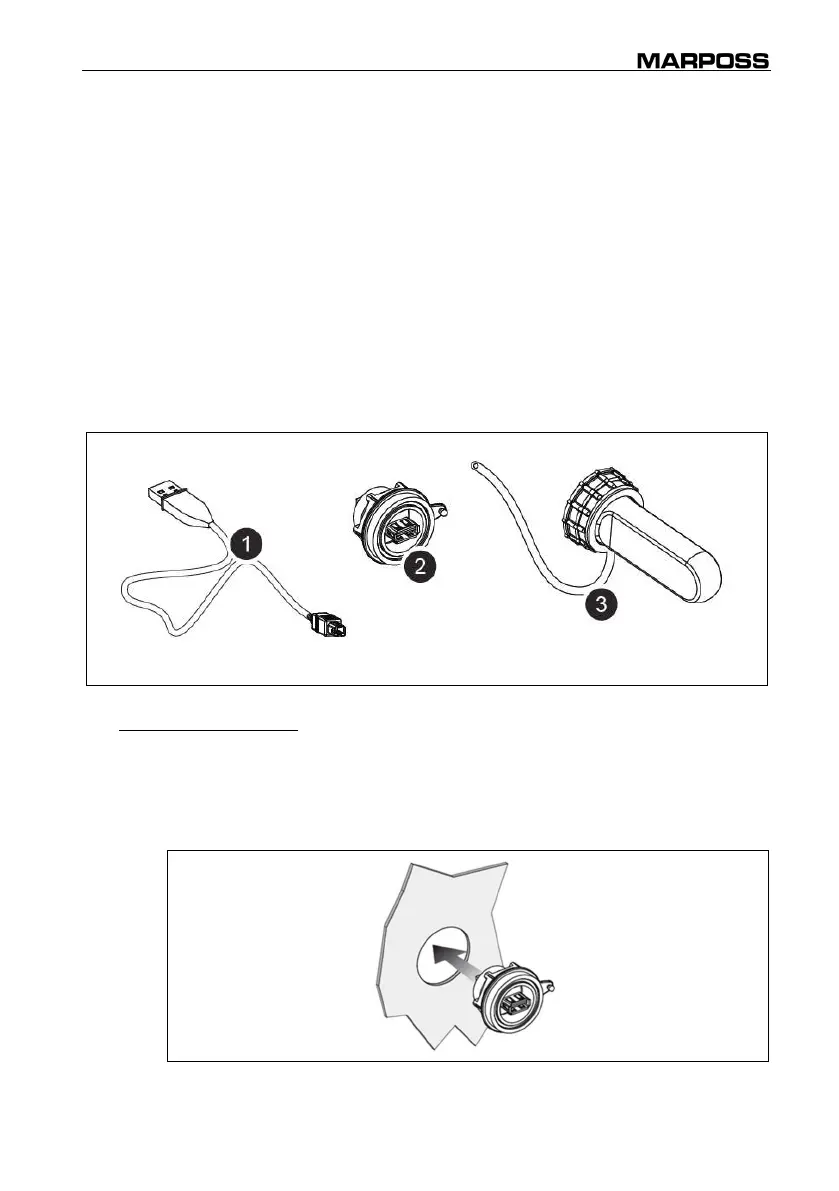

4.5.1.1 Using the panel mount adapter
In this paragraph an application example.
The following components are required:
Extension cable from USB with type A to the extension with USB type B (1)
Marposs code: 4701300229 (length: 1 m)
Marposs code: 4701300230 (length: 3 m)
Panel mount adapter (2)
Marposs code: 4140W05601
Sealed cap (3)
Marposs code: 4140W00018
Assembly instructions:
A. Make a through bore (D.36.2 mm) in the surface where the panel mount
adapter shall be mounted.
B. Remove the adapter ring, then insert the adapter into the hole and tighten the
ring nut.
USB tipo A
USB tipo B
