Chapter 6  INSTALLATION OF PLUG HEAD 59
6. INSTALLATION OF PLUG HEAD
The installation of a plug head on I-Wave2 is quick and simple; in some cases, a
mechanical adapter is required to connect I-Wave2 handles with plug heads.

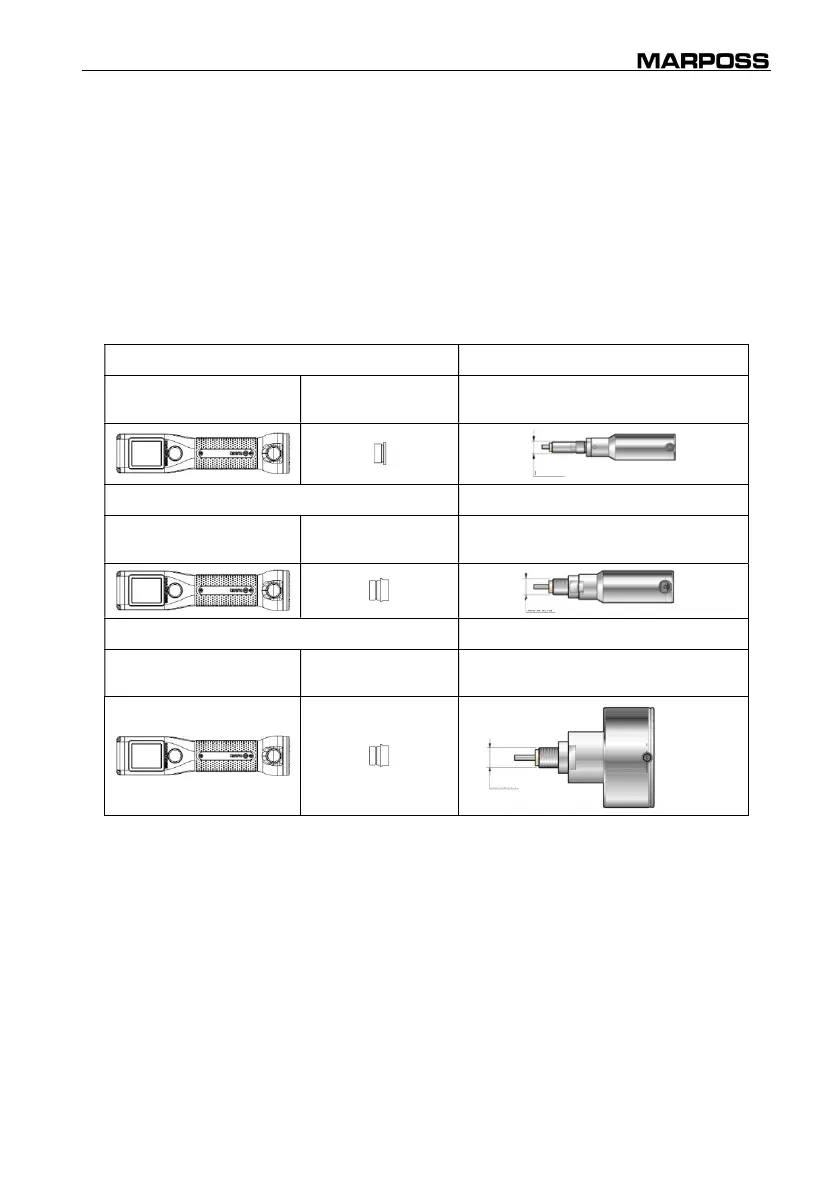

6.1 System with Direct Lock connection
6.1.1 Combinations without depth extensions
3TJ5SDI035 APPLICATION
3TJ5SDI000 2TIMDM0350 for plug head with M3.5 thread
MBG/DIATEST/HEXACON
3TJ5SDI060
3TJ5SDI000 2TIMDM0600 for plug head with M6 thread
MBG/DIATEST/HEXACON
3TJ5SDI100
3TJ5SDI000 2TIMDM1000 for plug head with M10 thread
MBG/DIATEST/HEXACON
M
10
x
1
M3,5 x 0,35
M
6
x
0,
7
5
