GLASS REMOVAL
GLASS FRAME REMOVAL
All three (3) glass frames are replaced the same way.
1. Release two clamps on bottom of replace. See Figure 42.
2. Tilt glass frame out and lift glass frame up until it clears three tabs on top of replace.
3. Set glass frame aside.

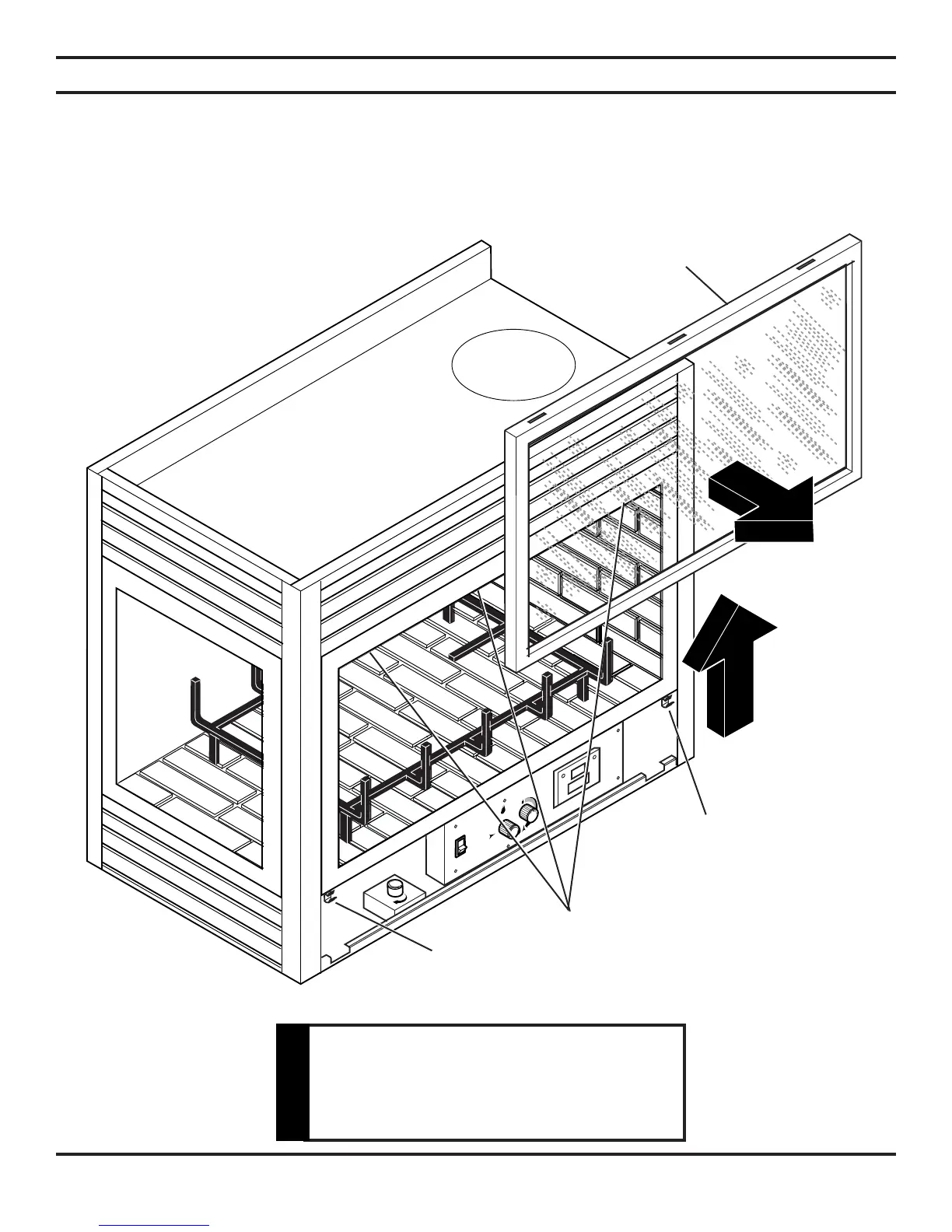

Figure 42 - Removing Glass Frame
Glass Frame
Three
Tabs
Clamp
Each clamp has a spring force.
When reinstalling clamps, keep
fingers clear.
CAUTION
Clamp
To Next Page
