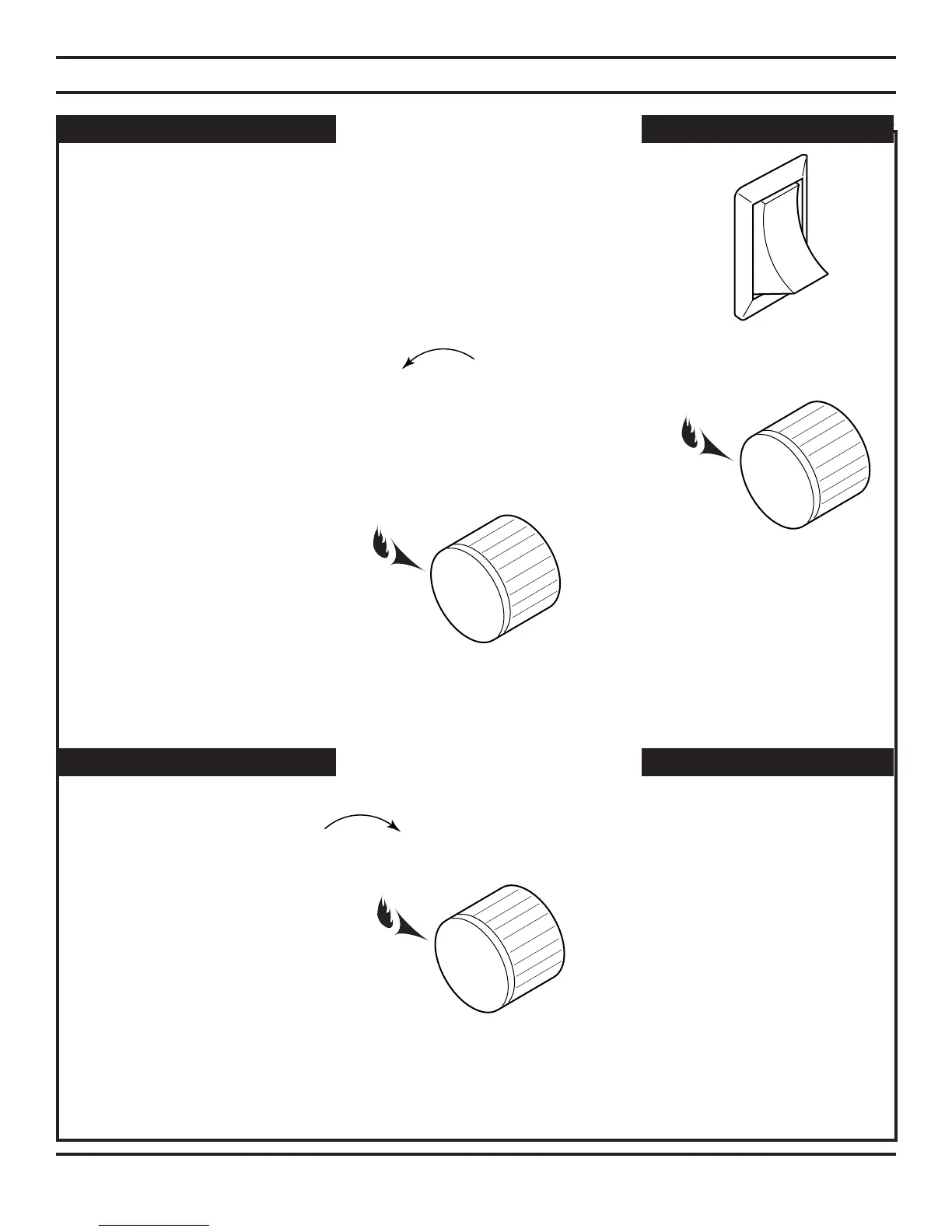

Figure 53 - On Position
Figure 52 -
On/Off/RS Switch
OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF/RS” switch for the main burner can be found behind door of the
replace. This switch allows you to turn on and to turn off the main burner without
using the gas valve knob. Make sure the button is in the “ON” position to light
the main burner. See Figure 52.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. See
Figure 53. It will take less than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the
pilot light. See Figure 54.
Depress and turn knob clockwise to “OFF” position. See Figure 55.
TO TURN OFF GAS
Figure 55- Off Position
Figure 54 - Pilot Position
