Martin DESIGNER User Manual

36 53D0419
53D0419 37

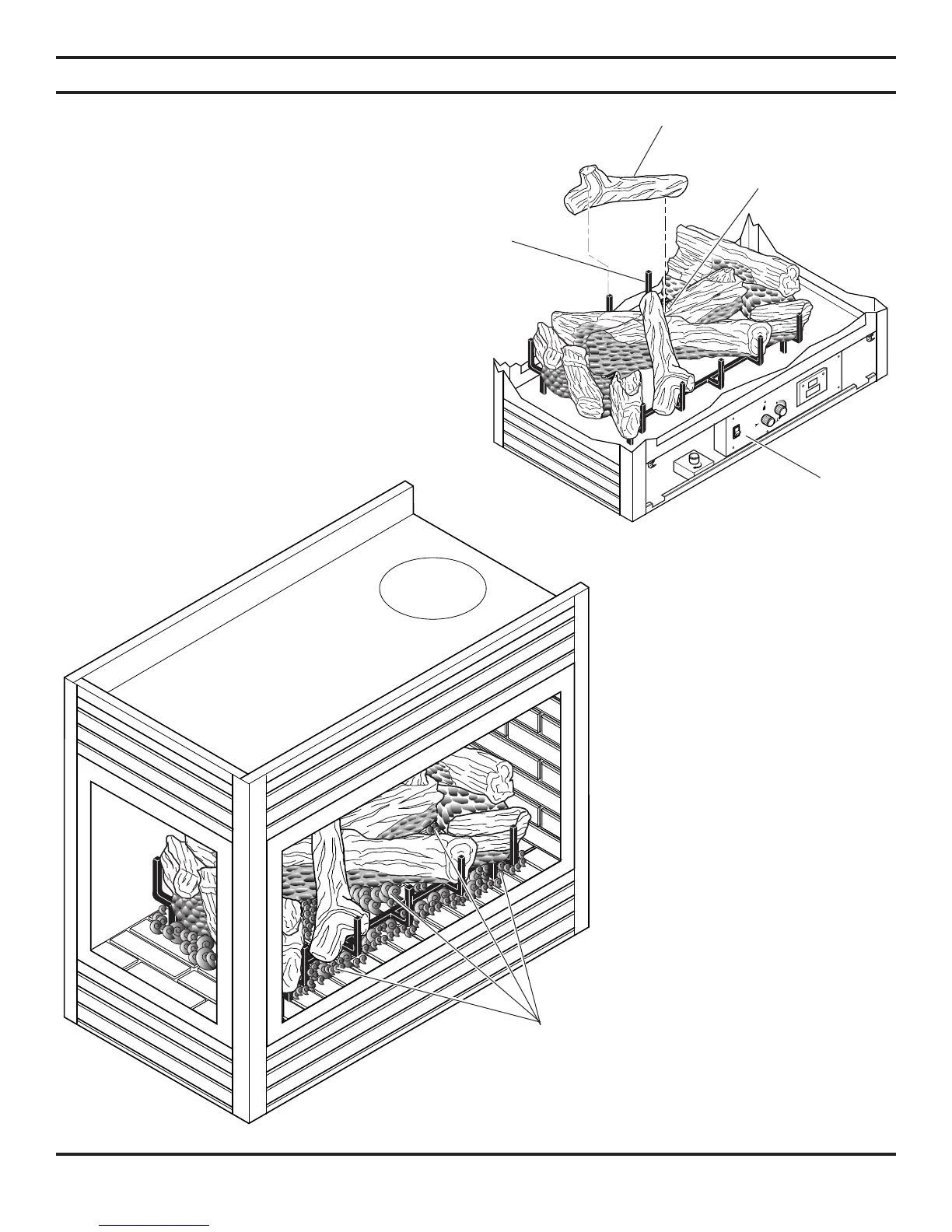

Figure 48 - Installing Top Log (#6)
LOG PLACEMENT
8. Place Y-Shaped end of top log (#6) on on prong four of back
of grate. Position other end of top log (#6) in cutout of bottom
center log (#3). See Figure 48.
Figure 49 - Rock Wool Placement
9. Break up rock wool (ember material)
into dime-sized pieces. Place evenly
across burner surface and mesh of grate.
See Figure 49. Do not exceed 1" depth
of coverage.
Top Log #6
Cutout on
Bottom
Center Log
Grate Prong
Four
Rock Wool
Control Panel
