Service and maintenance 39
6. See Figure 22. Lift the effects module E
out of the head. Place it on a flat surface.
7. See Figure 23. Rotate the color
wheel until the filter that you want to
change is accessible. Lift the outer
edge of the filter F up from the color
wheel slightly to release it, then pull it
out of its retaining spring G and out of
the color wheel.
8. To insert a filter, slide it into the color
wheel so that it clips under its
retaining spring G and engage the
filter’s outer edge F in the lip on the
edge of the color wheel.
9. If no further service work is to be
carried out, reinstall the module,
connectors, and the top cover with its
safety wire, then release the tilt lock
before applying power.

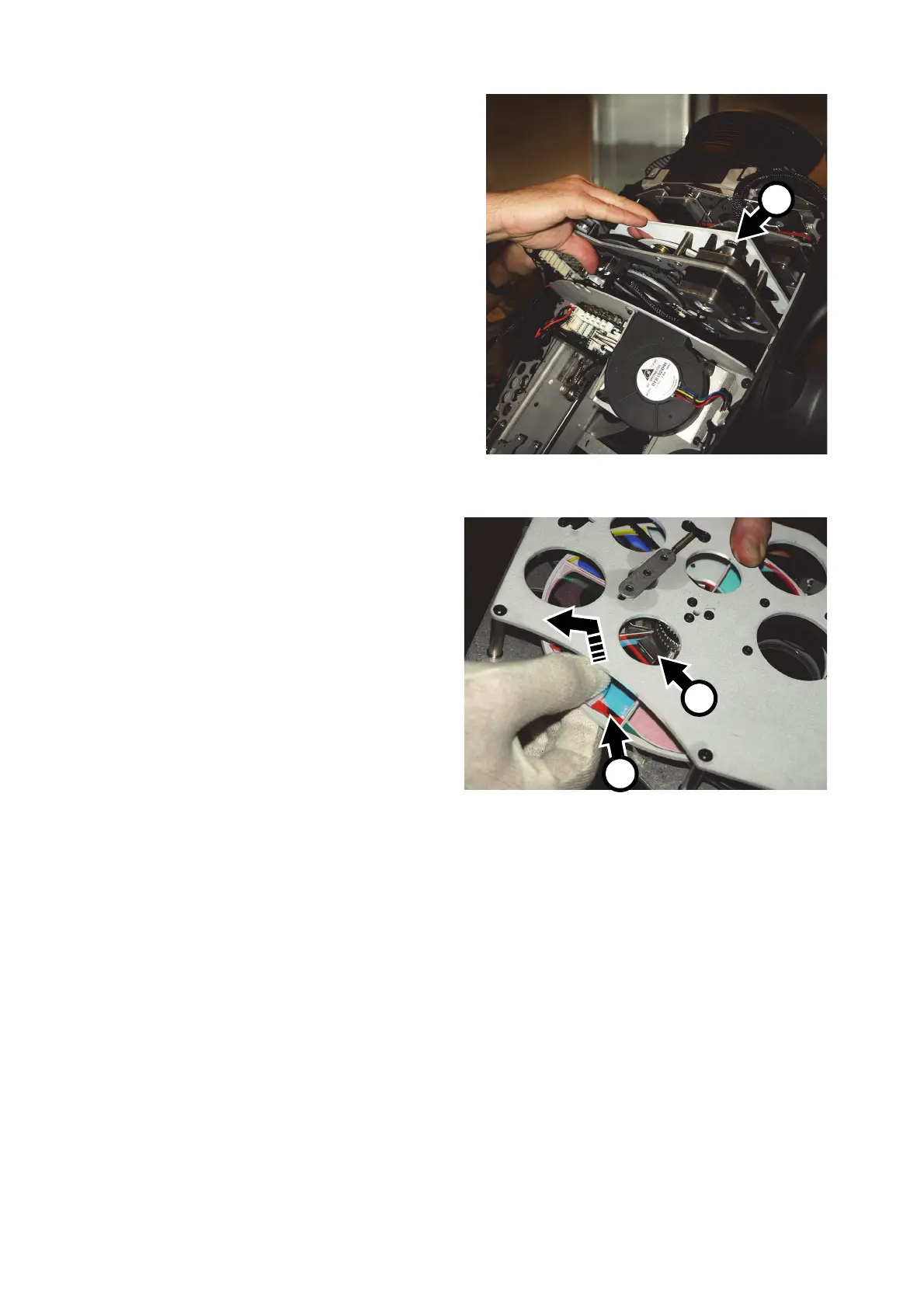

Figure 22: Removing effects module
E
Figure 23: Color filter removal
G
F
