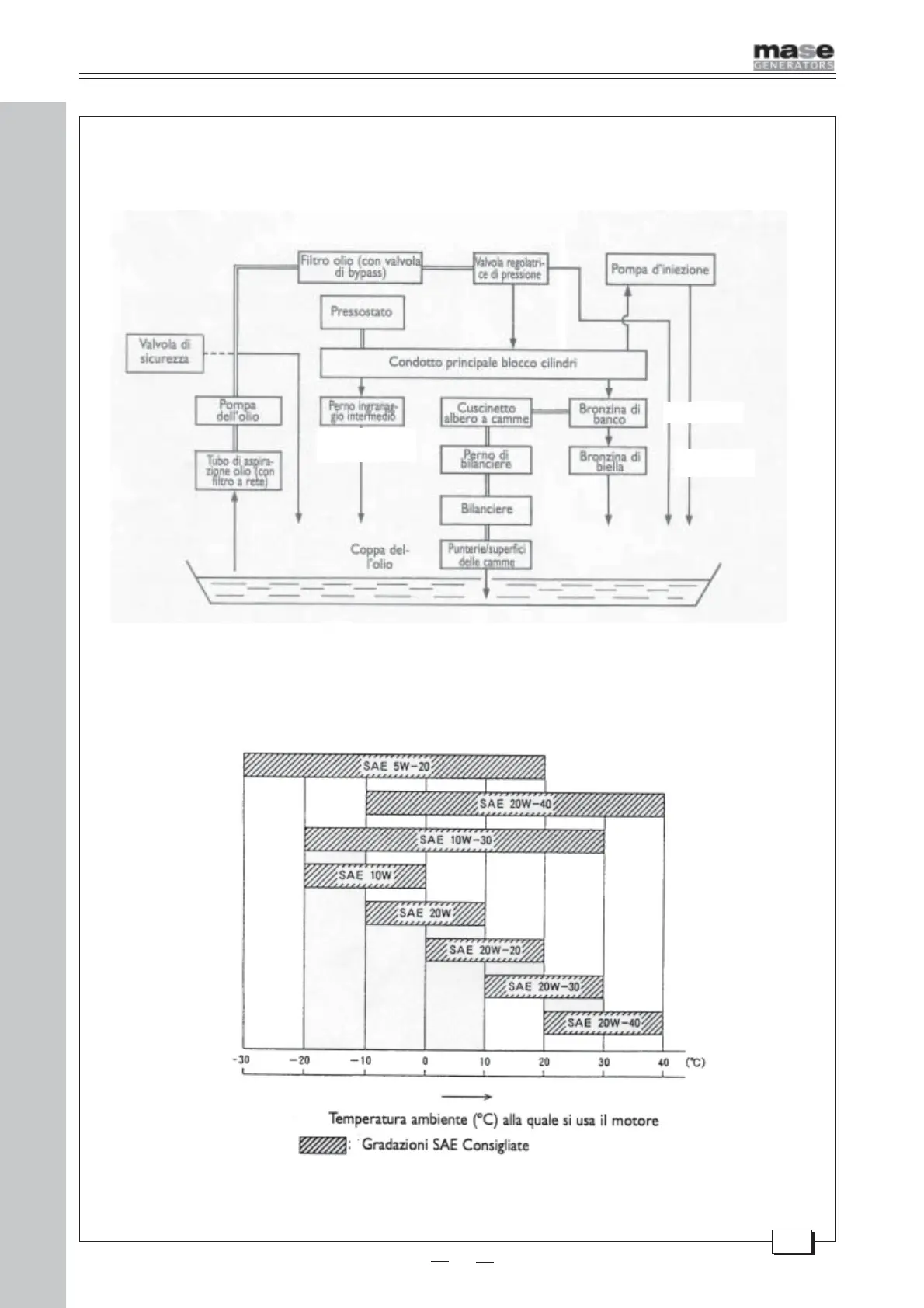

Schema dell'impianto di lubrificazione
Lubrication system diagram
Ambient temperature (°C) at which the engine is used
Recommended SAE gradations
14
Oil filter (with bypass valve)
Pressure
regulating
valve
Injection pump
Safety valve
Oil pump
Oil intake pipe
(with mesh
filter)
Oil sump
Pressure
switch
Cylinder block main duct
Cam shaft bearing
Intermediate gear
pin
Equalizer
pin
Equalizer
Tappets/cam
surfaces
Main bushing
Connecting
rod bushing
4 MOTORE
