Model: LC5296-AT /LC5248E-AT/LC5296V-AT masibus
Doc. Ref. no. : - m61C/om/301
Issue no. 13
User’s Manual Page 27 of 44
* Not applicable for LC5248E-AT, LC5296V-AT
NOTE:-
The retransmission output type is jumper selectable. Thus if current type or
voltage type output, will be decided by the position of the jumper.
The Linear type control output will depend on the type of
Retransmission-1 output selection. If Retransmission-1 type output is
4-20mA, then the linear output will function respectively.
No need to feed input while calibrating Rx. o/p. just make the value in calibration
mode equal to the displayed value.

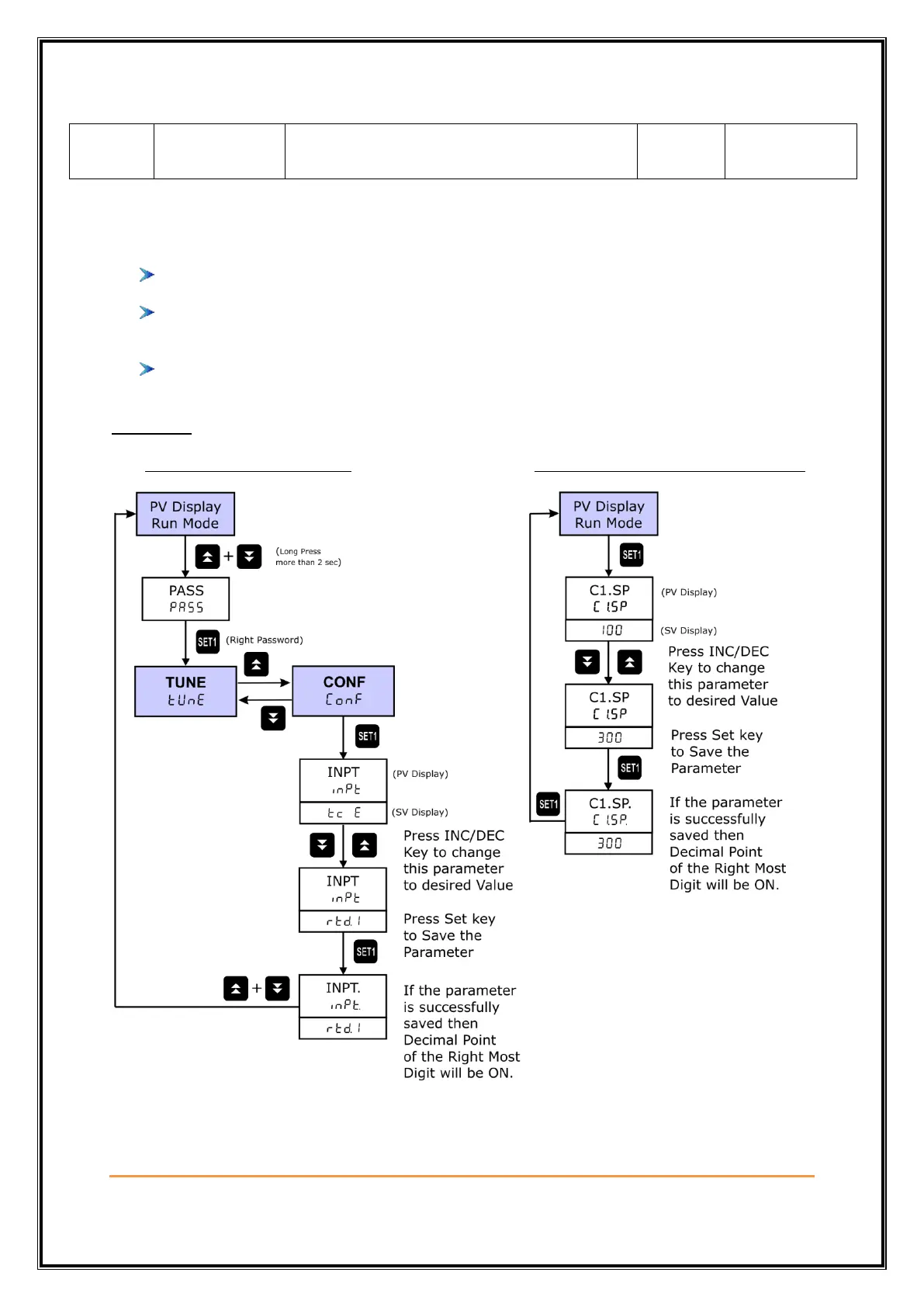

Example:
1. How to change Input Type 2. How to change Control Set Point-1
Note:
 Example 2 applies for OT (output type) Relay or SSR. For Linear output, press
SET1 key for few seconds for C1.SP to appear in RUN mode.
*RTS2
(rts2)
Retransmission-2
SPAN
Calibration Span for Retransmission Output-2
(SV Display : If voltage:-8.000
If Current:-20.00)
-
