Chapter 1: Description
This chapter contains the description of the NomoLine ISA CO2 physical features.
General System Description
The NomoLine ISA CO2 system includes the following:
• NomoLine ISA CO2 Device
• NomoLine Sampling Line
For a complete list of compatible NomoLine sampling lines, cannulas, and related
consumables, visit www.masimo.com.
Features

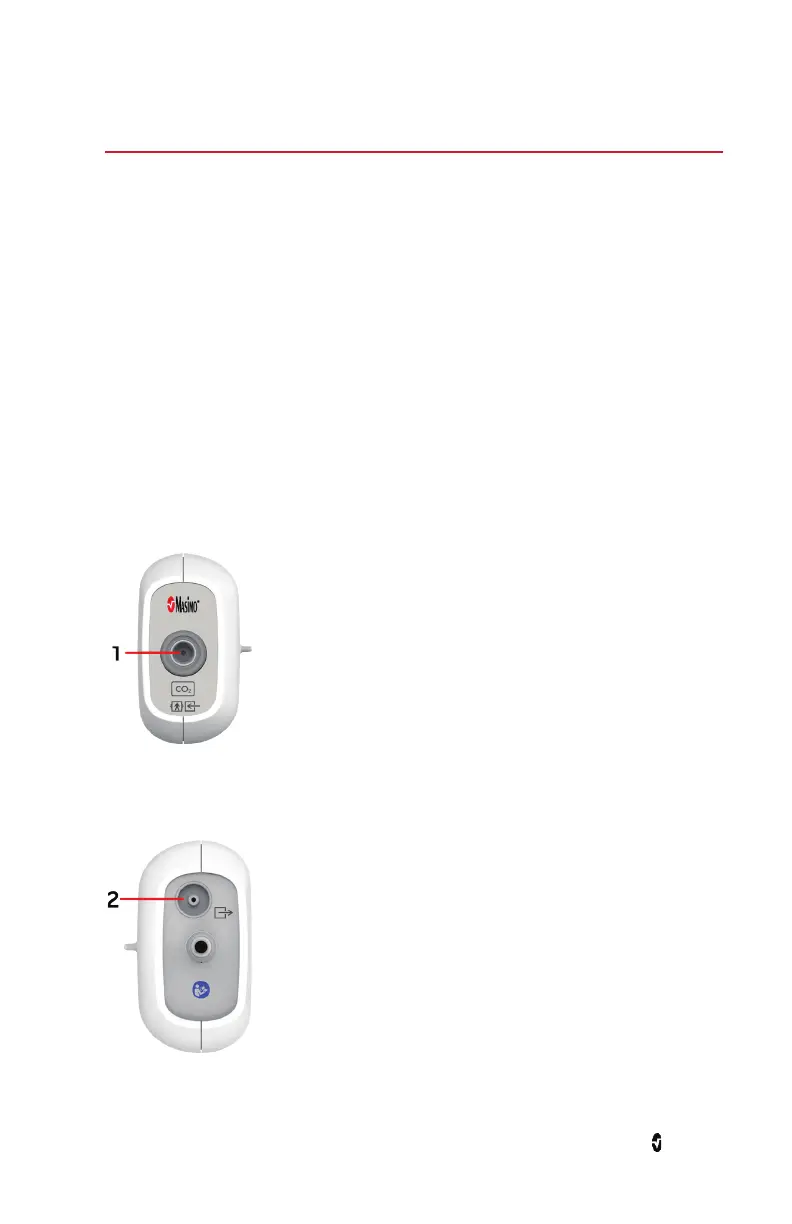

Front View
1. NomoLine Capnography Input Connector
Allows connection to NomoLine® for capnography measurements.
Light Emitting Gas Inlet (LEGI) Indicator provides visual indications
of capnography status. See LEGI Indicator on page 17.
Rear View
2. Capnography Gas Sample Exhaust Port
Exhaust port for gas samples. See System Setup on page 15.
