Masimo O3 User Manual

O3 Regional Oximeter Chapter 3: Setting Up the O3 System
www.masimo.com 21 Masimo
Connecting the O3 Sensor(s) to the O3 Module
Up to two (2) sensors can be connected to each O3 module. The two (2) connections are
symmetrical in orientation and clearly marked “1” and “2” on the module.
To connect an O3 Sensor to an activated O3 Module:
1. Apply sensor on the patient. For more instructions on applying the sensor on the
patient, see the Directions for Use for the O3 Sensor.

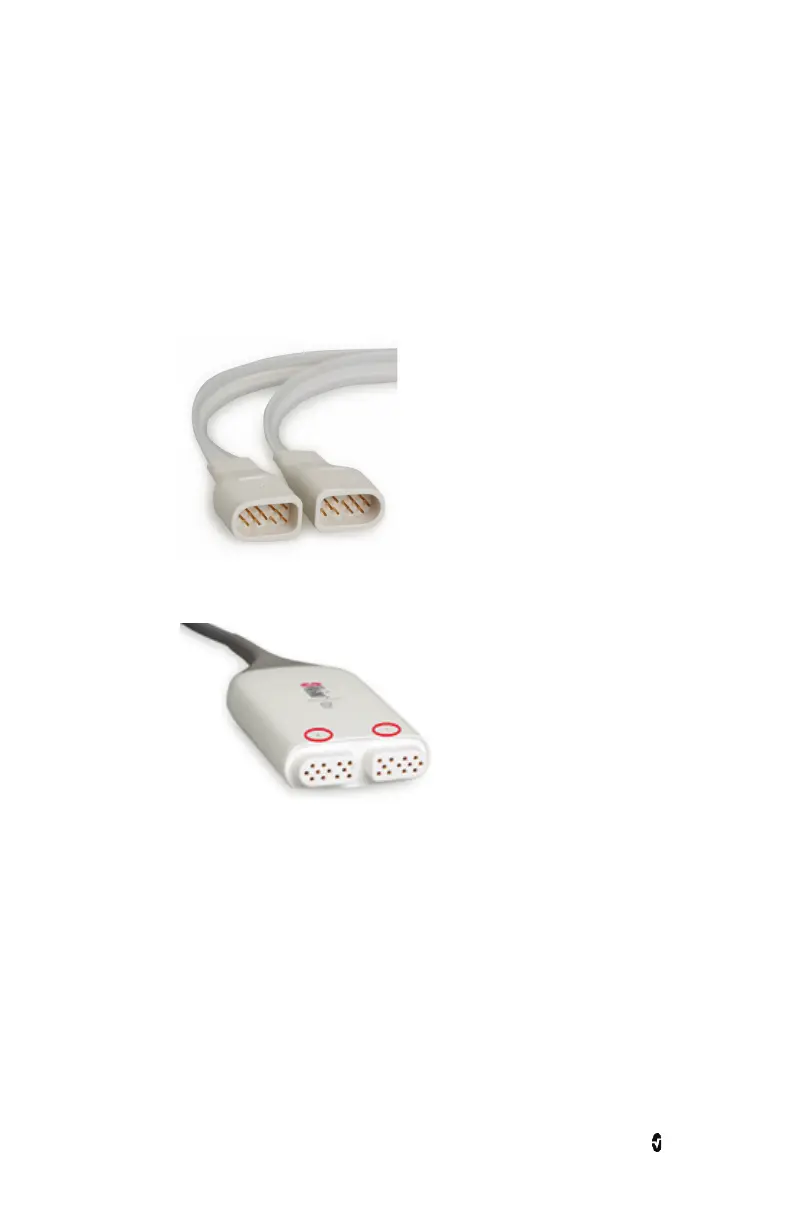

2. Once the sensor(s) has been properly applied on the patient, identify the
connector end on the sensor, illustrated in the image below.
3. Align the connector with the appropriate sensor connection on the module, as
illustrated in the image below. Note the markings of "1" and "2" above the
connections.
1 - Left Forehead
2 - Right Forehead
