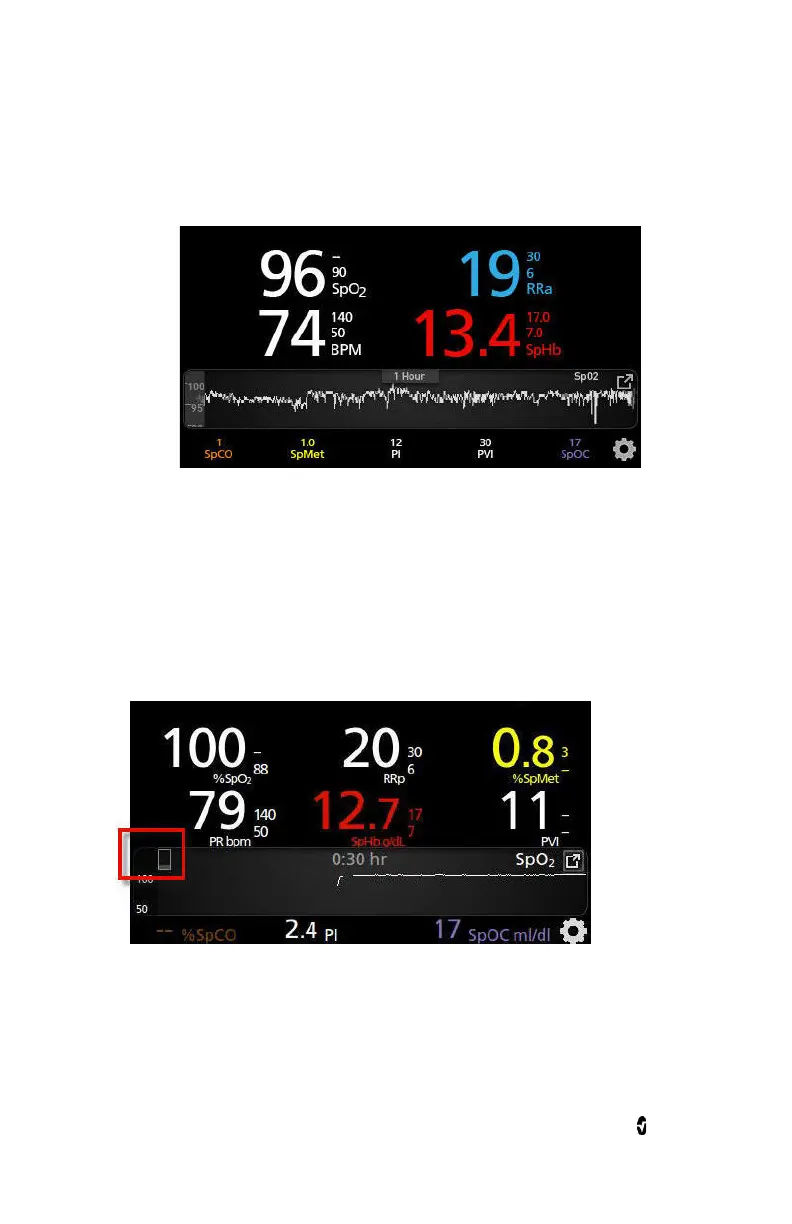

5. The Trend Field displays trend data specific to the option that
was selected.
Pulse Bar
The Pulse Bar is a visual indicator that conveys the detection of pulse and
the Signal IQ (SIQ) displayed on each individual pulsation. The height of
the bars provides an assessment of the confidence in the measurement
displayed. See
Signal IQ Indicators on page 77.
