Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 99

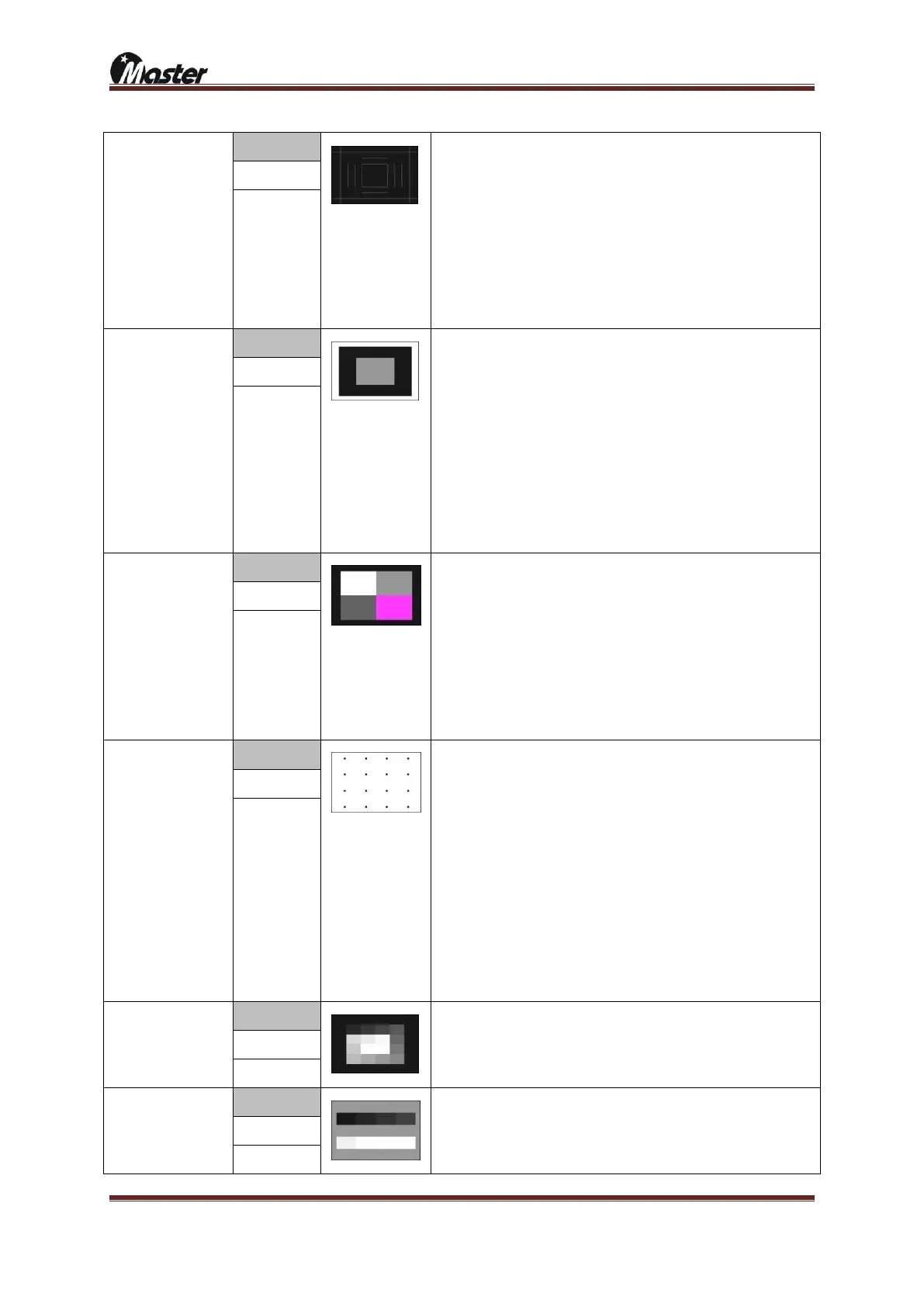

3.Geometry check
pattern
Default 535
1.H Line Divide (0~64): Horizontal line add 0 to 64
2.V Line Divide (0~64): Vertical line add 0 to 64
3.H Width (0~64): Horizontal line width setting 0 to 64
4.V Width (0~64): Vertical line width setting 0 to 64
5.H Line Position (0~100)
6.V Line Position (0~100)
7.Rectangular Full (0=Off, 1=On): Rectangular fill up or empty
8.Rectangular H Size (0~100)
9.Rectangular V Size (0~100)
10~44Common option
None
1,2,94
Windows square
check pattern
Default 537
1.Base R Color Level (1~100%)
2.Base G Color Level (1~100%)
3.Base B Color Level (1~100%)
4.Center Box Size (1~100%)
5.Center Box R Level (1~100%)
6.Center Box G Level (1~100%)
7.Center Box B Level (1~100%)
8.Small Box Size (1~100%)
9.Small Box R Level (1~100%)
10.Small Box G Level (1~100%)
11.Small Box B Level (1~100%)
12~46 Common option
None
339,340,341,3
42
Windows square
check pattern with
color
Default 538
1.Color Windows H Start (1~100%)
2.Color Windows V Start (1~100%)
3.Color Windows H Size (1~100%)
4.Color Windows V Size (1~100%)
5.Color Windows H Divide (0~4)
6.Color Windows V Divide (0~3)
7.Color 1 R Level (0~255)
…
45.Color 13 B Level (0~255)
46~80 Common option
none
329
Uniformity check
pattern
Default 539
1.Pattern Size (0~100%)
2.Horizontal Divide (2~16)
3.Vertical Divide (2~12)
4.Circle Size (1~32): Circle size setting 1 to 32
5.Circle ratio (0=4:3, 1=16:9, 2=21:9): Circle ratio setting
6.Color Box R Level (0~255)
7.Color Box G Level (0~255)
8.Color Box B Level (0~255)
9.Triangle On/Off (0=Off, 1=On)
10~44 Common option
None
77,87,91
Gray rotate pattern
Default 542
1.Gray Rotate Step (0=16,1=256)
4~38 Common option
None
331
Consumption Power
check pattern
Default 543
1.Box H Size (0~100%)
2.Box V Size (0~100%)
3.Box 1_1 Level (0~100%)
4.Box 1_2 Level (0~100%)
None
343
