Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 98

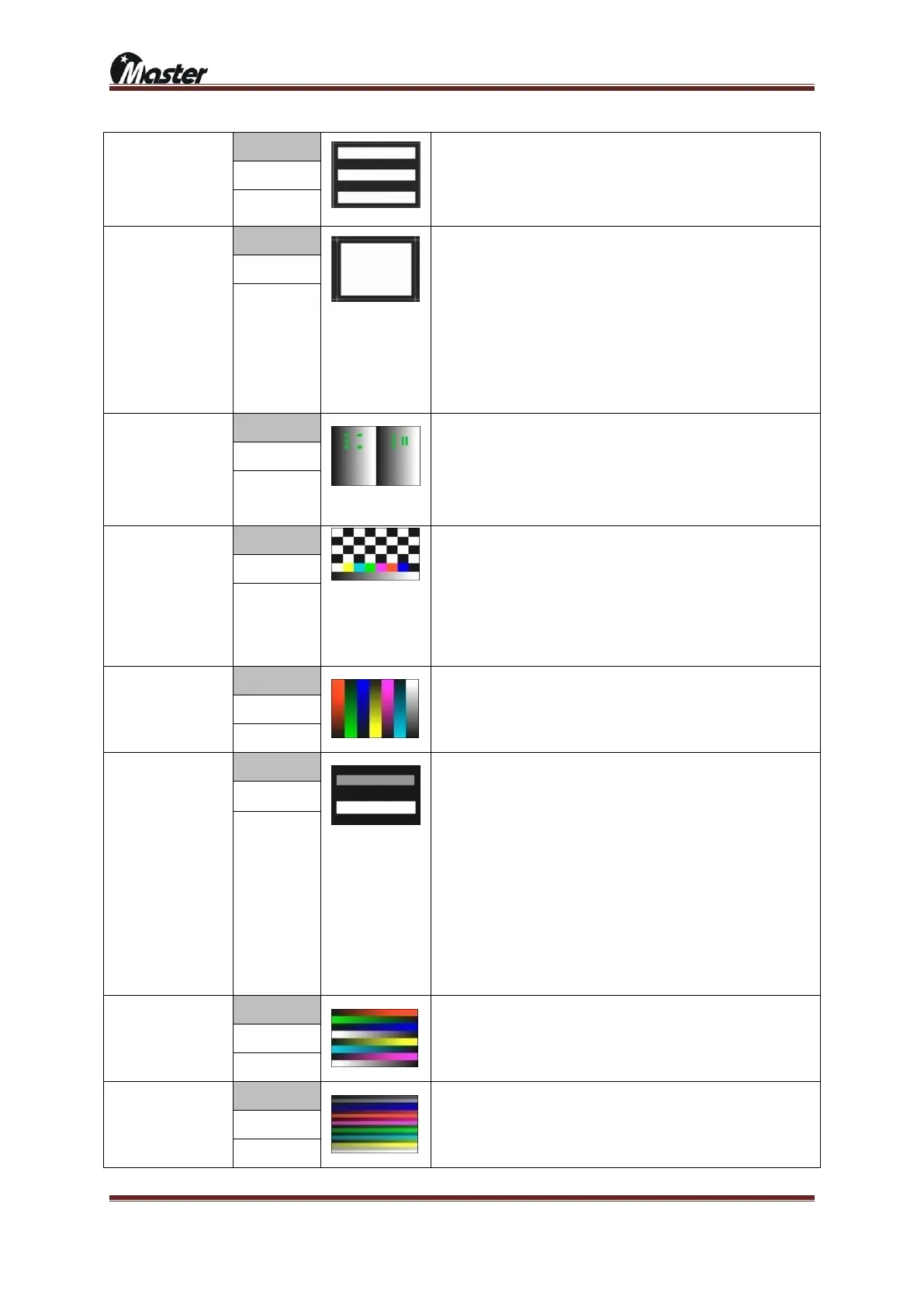

Regulation check
pattern
Default 527
1.H Line space value (0~50%): Horizontal line space value setting 0~50%
2.H Box space value (0~50%): Horizontal box space value setting 0~50%
3.V Line space value (0~50%) Vertical line space value setting 0~50%
4.V Box space value (0~50%) Vertical box space value setting 0~50%
5~39 Common option
None
36
Regulation check
pattern
Default 528
1.H Line Count (0~64%): Horizontal line count setting 0 to 64%
2.V Line Count (0~64%): Vertical line count setting 0 to 64%
3.H Line Position (0~100%): Horizontal line position setting 0 to 100%
4.V Line Position (0~100%): Vertical line position setting 0 to 100%
5.H Box Position (0~100%): Horizontal box position setting 0 to 100%
6.V Box Position (0~100%): Vertical box position setting 0 to 100%
7.Color Box R level (0~255)
8.Color Box G level (0~255)
9.Color Box B level (0~255)
10~44 Common option
none
38
3D check pattern
All of 3D type can
be display with “3D”
character
Default 529
1.3D Structure Type (0=SBS(Half), 1=T&B)
▶0: Side by side half type 3D
▶1: Top and bottom type 3D
2~36 Common option
None
40
Auto color gain
adjustment check
pattern
Color matrix check
pattern
Default 530
1.H Divide (1~8)
2.V Divide (1~20)
3.8 Color Level (0~255)
4.Gray level (0~255)
5.Gray Step by one color (0~32)
6~40 Common option
None
45
Color scale tracking
pattern with vertical
type
Default 531
1.V Divide (1~255)
6~40 Common option
none
57,82
Cross talk check
pattern
Default 532
1.Color Box H Start (0~100): Color Box Horizontal start setting 0 to 100
2.Color Box V Start (0~100): Color Box Vertical start setting 0 to 100
3.Color Box H Size (0~100): Color Box Horizontal size setting 0 to 100
4.Color Box V Size (0~100): Color Box Vertical size setting 0 to 100
5.Color Box R Level (0~255): Color Box Red level setting 0 to 255
6.Color Box G Level (0~255): Color Box Green level setting 0 to 255
7.Color Box B Level (0~255): Color Box Blue level setting 0 to 255
8.Characte Line On(0~255)
9.Characte Line Off(0~255)
10.Character Box H Start (0~100%)
11.Character Box V Start (0~100%)
12. Character Box H End (0~100%)
13. Character Box V End (0~100%)
None
70
13.Color scale
tracking pattern with
horizontal type
Default 533
1.H Divide (1~256): Horizontal step divide 1 to 256
2~36 Common option
None
533
13.Color scale
tracking pattern with
horizontal type
Default 534
1.H Divide (0~255): Horizontal divide 0 to 255
2.V Divide (0~16): Vertical divide 0 to 16
3~37 Common option
None
75
