Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 97
26,59,92
4.Side width (0~30Pixes): Side width setting 0 to 30 pixels
5.Dot On/Off Color Level (0~255): Dot on/off color level setting 0 to 255
6~40 Common option

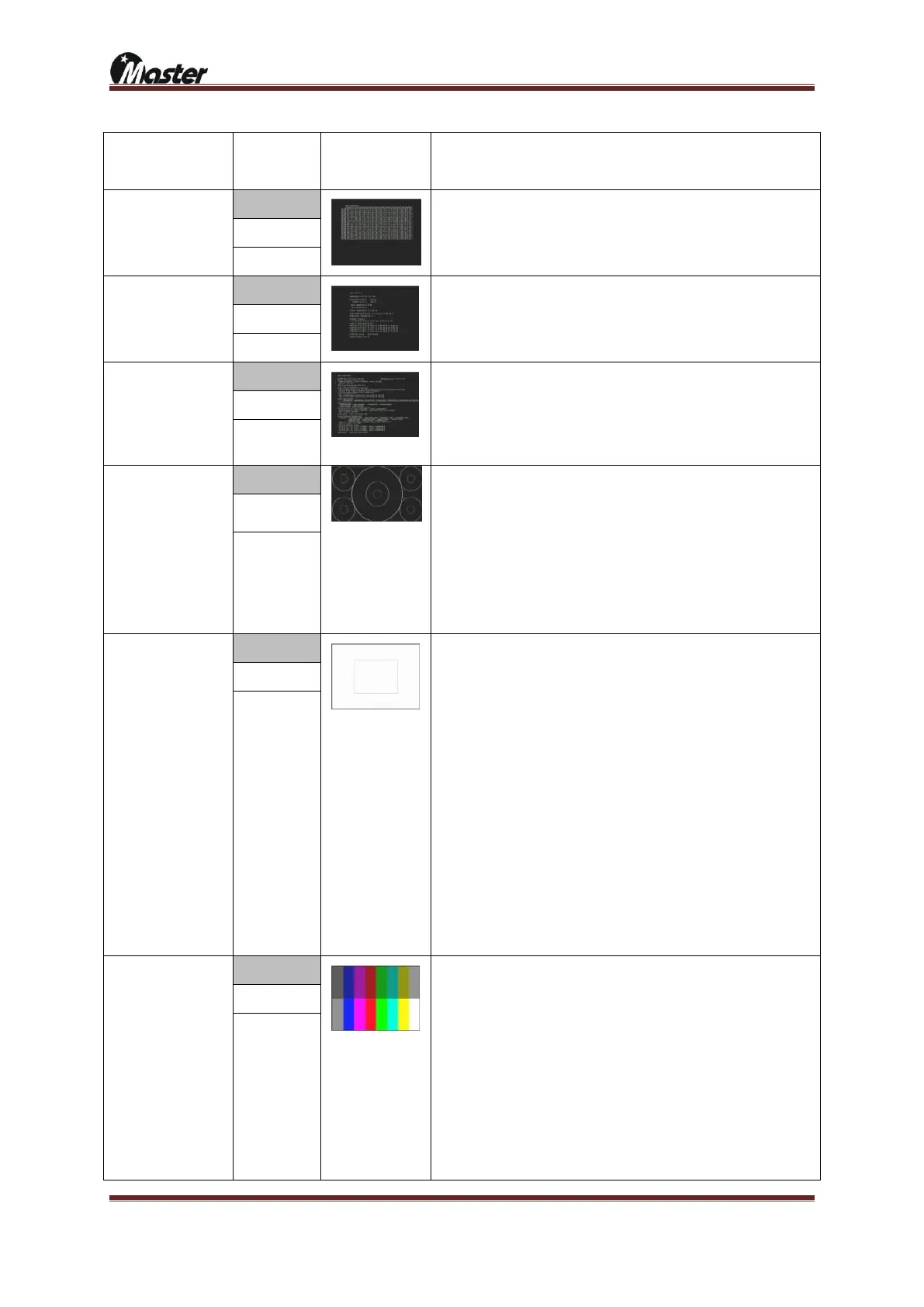

EDID check pattern
256 Byte with
diagram
Default 521
1.EDID Port No.
▶0: Ch 1 EDID 255 DATA
▶1: Ch 2 EDID 255 DATA
2~36 Common option
94,95
314,315
EDID check pattern
Simple EDID data
Default 522
1.EDID Port No.
▶0: Ch 1 EDID DATA
▶1: Ch 2 EDID DATA
2~36 Common option
86,87
306,307
EDID check pattern
Detail EDID data
Default 523
1.EDID Port No.
▶0: Ch 1 EDID detail DATA
▶1: Ch 2 EDID detail DATA
2~36 Common option
102,103
none
3.Geometry check
pattern with Circle
Default 524
1.Large 1 Circle (0=Off, 1=On): Large circle on/off
2.Large Circle width (0~10): Large circle width setting 0 to 10
3.Middle 5 Circle (0=Off, 1=On): Middle circle on/off
4.Middle Circle width (0~10): Middle circle width setting 0 to 10
5.Cross 4 Circle (0=Off, 1=On): Cross circle on/off
6.Cross Circle width (0~10): Cross circle width setting 0 to 10
7.Small 5 Circle (0=Off, 1=On): Small circle on/off
8.Small Circle width (0~10): Small circle width setting 0 to 10
9~41 Common option
None
none
1.Purity check
pattern with square
box
Default 525
1.Color Box H Start(0~100):Color box horizontal start position setting 0 to 100
2.Color Box V Start(0~100):Color box vertical start position setting 0 to 100
3.Color Box H Size(0~100): Color Box horizontal size setting 0 to 100
4.Color Box V Size(0~100): Color Box vertical size setting 0 to 100
5~7.Color Box R,G,B level (0~255): Color Box level red, green and blue
setting 0 to 255
8.Color Rectangular H Start(0~100):Color Rectangular horizontal start
position setting 0 to 100
9.Color Rectangular V Start(0~100):Color Rectangular vertical start position
setting 0 to 100
10.Color Rectangular H Size(0~100): Color Rectangular horizontal size
setting 0 to 100
11.Color Rectangular V Size(0~100): Color Rectangular vertical size setting 0
to 100
12.Rectangular/Diamond/Box Select (0=Rectangular/1=Diamond/2=Box)
13~47 Common option
none
5,6,7,8,9,10,1
1,12,13,14
Color matrix check
pattern with level
adjustment
Default 526
1.Color H Divide (1~8): Color horizontal divide 1 to 8
2.Color V Divide (1~64): Color vertical divide 1 to 64
3.H Size (1~100%): Horizontal size setting 1 to 100%
4.V Size (1~100%): Vertical size setting 1 to 100%
5.Reserved
6.Reserved
7.Color 1 R level (0~255): Color 1 red level setting 0 to 255
…
30.Color 30 B level (0~255): Color 8 blue level setting 0 to 255
31~65 Common option
None
35,85
