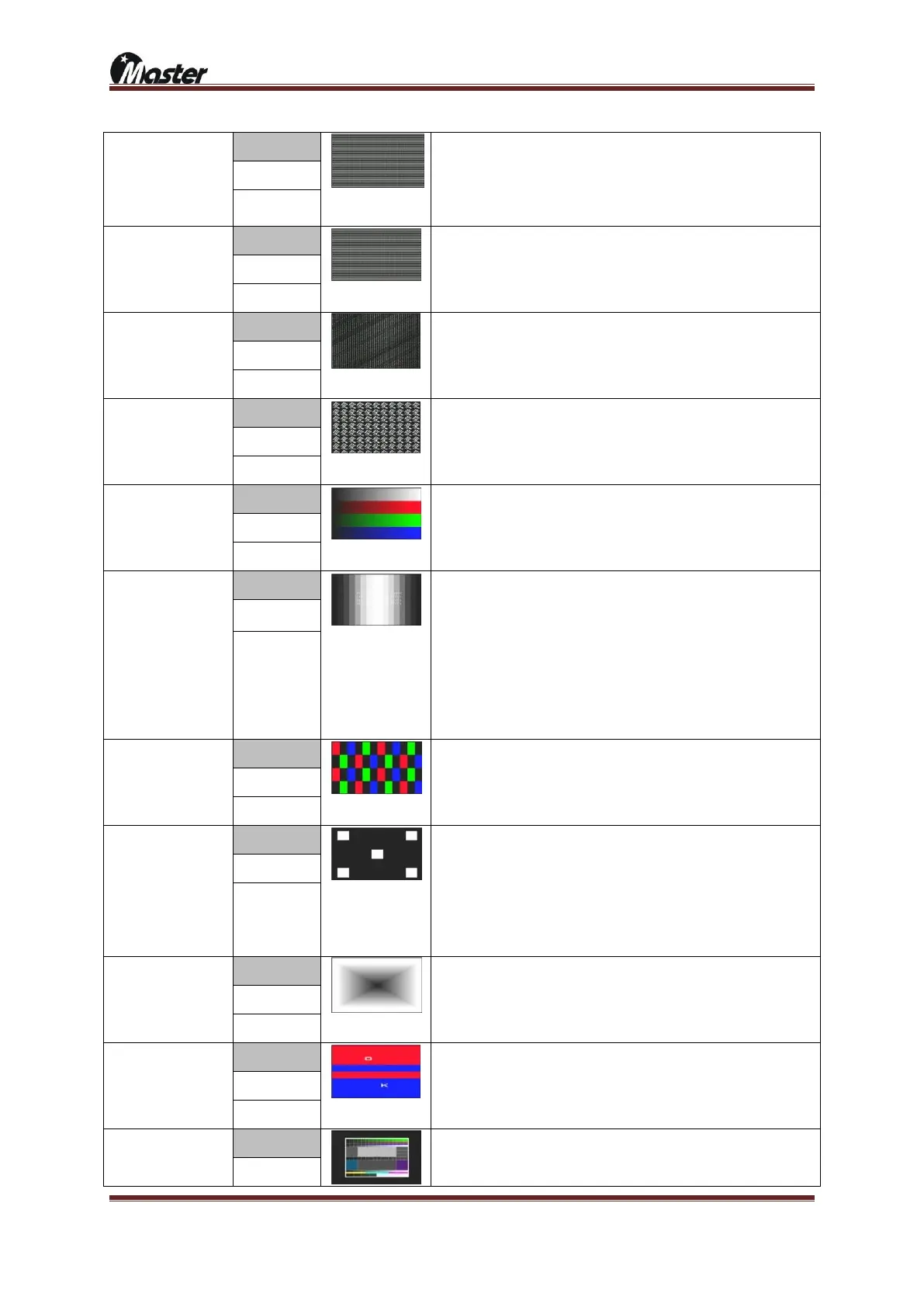

Character check
pattern
Default 510
1.Font Ascii Value (32~127): Font Ascii select 32 to 127
2.Font H Space (0~99): Font horizontal space setting 0 to 99
3.Font V Space (0~99): Font vertical space setting 0 to 99
4.Font Size or Code (1~7): Font size or code select 1 to 7
5~39 Common option
none
none
Character check
pattern
Default 511
1.Me Style Select(0~4): “ME” Character style select 0 to 4
2.Pattern Select(0~1): Pattern type select
3~37 Common option
69
58,69,76
Character size
check pattern
Default 512
1.Character font size (1~8): Character font size setting 1 to 8
2~36 Common option
none
none
Chinese font check
pattern
Default 513
1.Chinese Font select (0=Love, 1=Beautiful): Chinese Font select 愛 or 美
2~36 Common option
77
327
Color scale tracking
check pattern
Default 514
1.Color Step (2~256): Color Step setting 2 to 256
2.H Divide (1~4): Horizontal divide 1 to 4
3~37 Common option
22
42,84,90
Gray scale tracking
check pattern
Default 515
1.Color Windows H Divide (0~20): Horizontal color windows divide 0 to 20
2.Color Windows V Divide (0~20): Vertical color windows divide 0 to 20
3.Color Windows H Size (0~100%): Horizontal color windows divide 0 to
100%
4.Color Windows V Size (0~100%): Vertical color windows divide 0 to 100%
5.Gray Level 1 (0~255): Gray level 1 setting 0 to 255
…
24.Gray Level 20 (0~255): Gray level 20 setting 0to 255
25~59 Common option
28,29
none
Convergence
adjustment check
pattern
Default 516
1.H Divide (0~255): Horizontal divide 0 to 255
2.V Divide (0~255): Vertical divide 0 to 255
3~37 Common option
61
301
White balance
check pattern
Default 517
1.Box H Start (0~100%): Box horizontal start position setting 0 to 100%
2.Box V Start (0~100%): Box vertical start position setting 0 to 100%
3.Box H Size (0~100%): Box horizontal size setting 0 to 100%
4.Box V Size (0~100%): Box vertical size setting 0 to 100%
5.Center Box On/Off (0=Off, 1=On): Center box on/off setting
6.Box Full On/Off (0=Off, 1=On): full or empty box select
7~41.
13
334
Gray scale tracking
pattern with square
type
Default 518
1.Divide (1~64): Square box divide 1 to 64
2.Gray Type (0~1): Black or white type select
3.Shape Type (0=Fill, 1=2by2): Shape type select
4~38 Common option
None
None
3D check pattern
(Side by side / Top
and bottom type)
Default 519
1.3D Struct Select (0=SSH, 1=TB): 3D pattern setting, 0=Side by side type /
1=Top and bottom type
2~36 Common option
81,83
None
AVL W/B (70%)
pattern
Default 520
1.H Size (1~100%): Horizontal size setting 1 to 100%
2.V Size (1~100%): Vertical size setting 1 to 100%
3.Cross Hatch Width (0~30Pixels): Cross hatch width setting 0 to 30 pixels
