3 INSTALLATION
During installation and commissioning, the safety
instructions are applicable at all times.
3.1 Unpacking
In addition to the ChargeMaster Plus the delivery
includes:
• Mounting bracket to mount the ChargeMaster
Plus to a wall;
• Battery temperature sensor;
• Drop cable CZone/MB (1m);
• MasterBus Terminator;
• User and installation manual.
After unpacking, check the contents for possible
damage. Do not use the product if it is damaged.
If in doubt, contact your supplier
Check from the identification label (see section
1.5) whether the battery voltage is the same as
the nominal output voltage of the ChargeMaster
Plus (e.g. 24V battery set for a 24V battery
charger).
3.2 Location
• The ChargeMaster Plus is designed for indoor
use only.

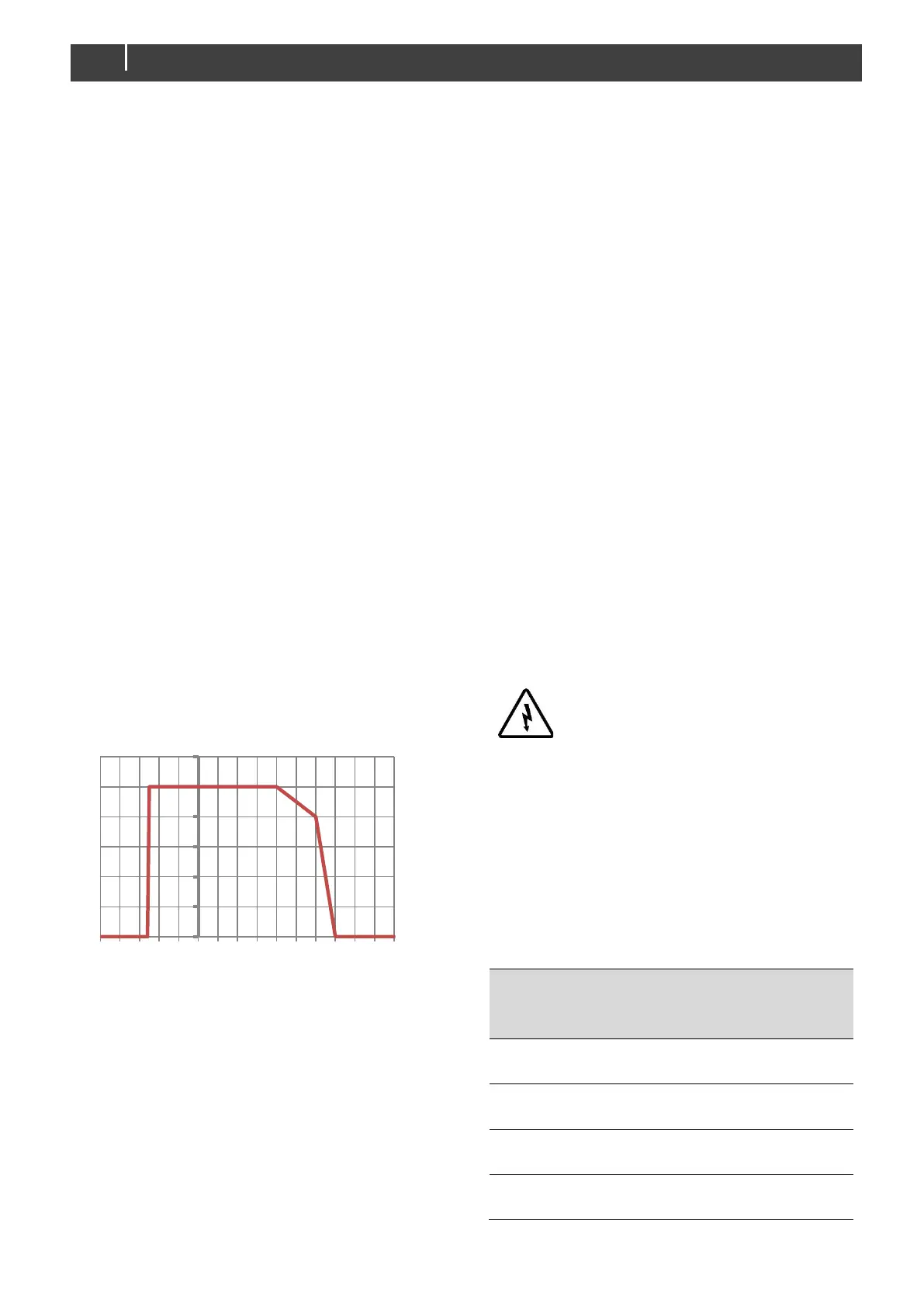

• Ambient temperature: -25°C ... 80°C / -13°F …
176°F; (power derating above 40°C / 104°F to
decrease the internal heat sink temperature).
• Humidity: 0-95% non-condensing
• Mount the ChargeMaster Plus vertically, with
the connecting cables downwards.
• Do not expose the ChargeMaster Plus to
excessive dust, aggressive environments,
ammonia or salt.
• Make sure that the hot air that is developed
during operation can be discharged. The
ChargeMaster Plus must be mounted in such
a way that obstruction of the airflow through
the ventilation openings will be prevented.
• This device requires a minimum of 100mm
(4") of clearance on every side.
• If added to a CZone or MasterBus network,
take the network powering into consideration.
• Never place the ChargeMaster Plus directly
above the battery being charged, as gases
from battery will corrode and damage the
ChargeMaster Plus.
• If the ChargeMaster Plus is installed in the
immediate vicinity of living areas, take into
account that even though we took the highest
care, the fan of the ChargeMaster Plus can
produce noise when operating.
• Although the ChargeMaster Plus fully
complies with all applicable EMC limits, it may
still cause harmful interference to radio
communication equipment. If such interfe-
rence appears, it is recommended to increase
the separation between the ChargeMaster
Plus and the equipment, to relocate the
receiving antenna or to connect the
equipment to a circuit different from that to
which the ChargeMaster Plus is connected.
3.3 Wiring
