35

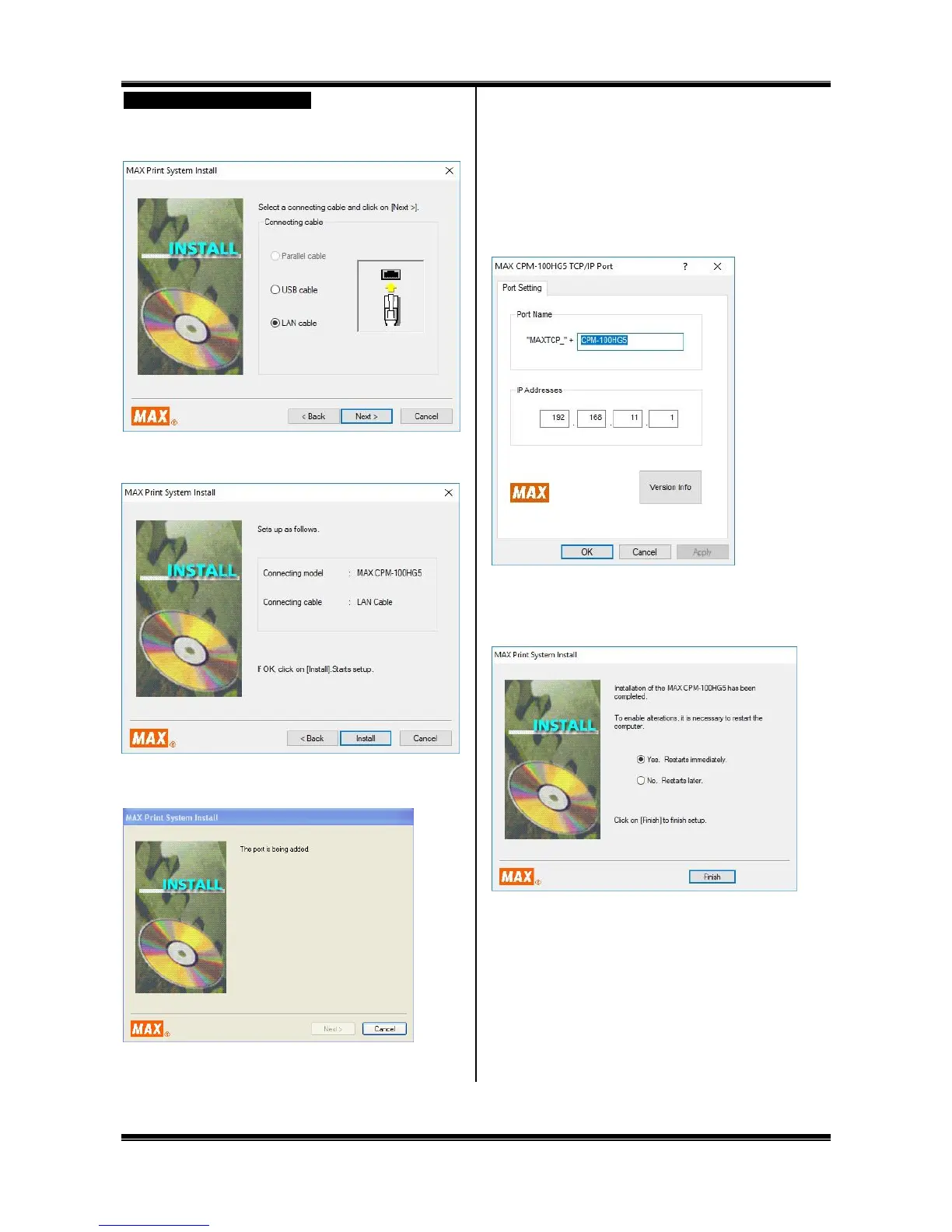

LAN Cable Driver Installation
12 Select “LAN cable” and click on the [Next] button.
* Only selectable cables are displayed depending on the OS used,
model connected, and PC used.
13 Click [Install].
* The screen shows that the Bepop machine has been selected.
14 Installation of the driver and port monitor starts automatically.
* “No reply” may be displayed. Wait for some time.
15 Set the port name and an IP address for the PC side.
Enter the port name and IP address, and click on [OK].
* For the appropriate IP address , inquire a network administrator of
your organization.
* The IP address to be set has to be consistent with the upper 9 digits
of the IP address (three 3-digit divisions) of the PC used. For the last
3 digits, assign an unused number not duplicating other connected
device.
* When using multiple units of printers, set different port names and IP
addresses.
16 Select “Yes. Restarts immediately” and click [Finish].
* If there is any application software left unterminated at the time of
starting installation, click on [No], exit the application, and then, restart
the PC.
17 Restart the PC.
* BepopPC EX and the Bepop machine operate successfully only after
restarting the PC. Be sure to restart it.
18 It is necessary to set the IP address of the printer body.
Set it according to “9 Setting the IP Address of the
CPM-100HG5” (Page 31).
To Next Page
