Setup
Connections
ESCON Module 50/5 Hardware Reference
3-18 CCMC | 2021-08 | rel9051
3.3.3 Encoder
Best practice
• Differential signals offer good resistance against electrical interference. Therefore we recommend
using a differential scheme. Nevertheless, the controller supports both schemes – differential and sin-
gle-ended (unsymmetrical).
• The controller does not require an index impulse (Ch I, Ch I\).
• For best performance, we strongly recommend using encoders with a line driver. Otherwise, speed
limitations may apply due to slow switching edges.

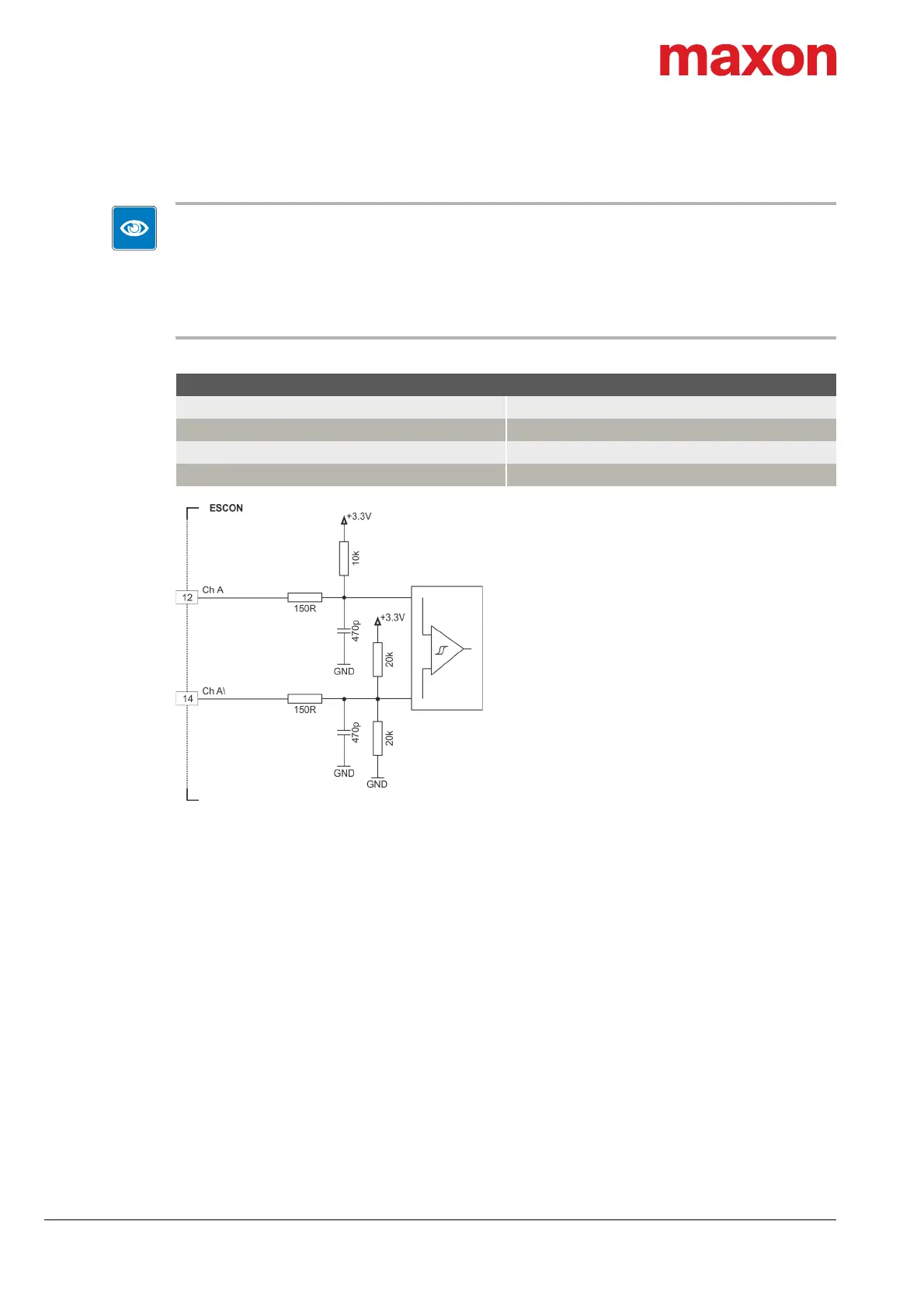

Figure 3-6 Encoder Input Circuit Ch A “Differential” (analogously valid also for Ch B)
Differential
Min. differential input voltage ±200 mV
Max. input voltage +12 VDC/−12 VDC
Line receiver (internal) EIA RS422 standard
Max. input frequency 1 MHz
